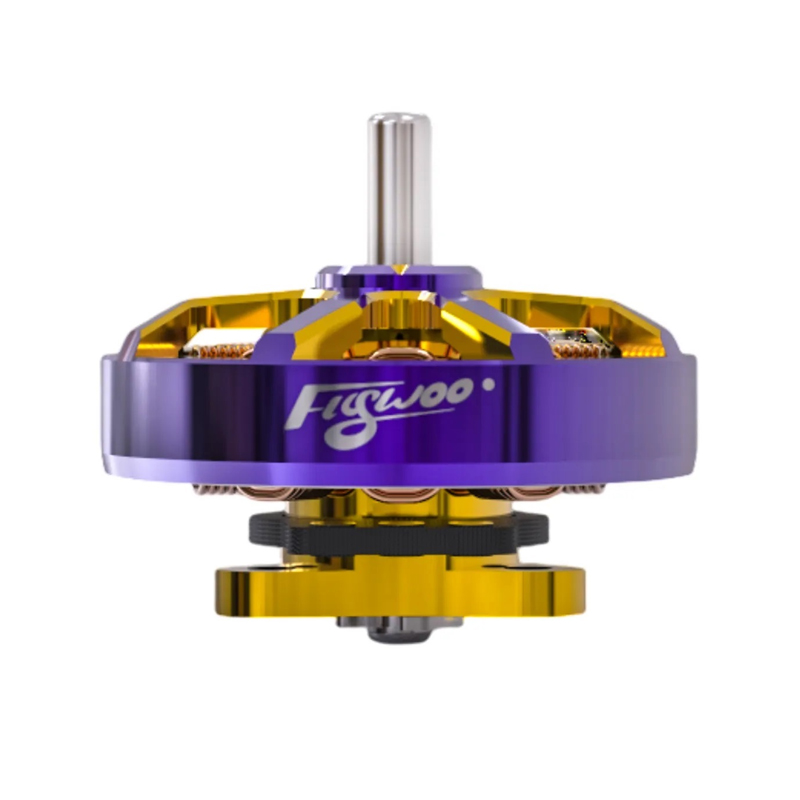

Flywoo ROBO 1002 23500KV Motor - 1PC
Flywoo ROBO 1002 23500KV Motor - 1PC - Image 2
SKU: DRFC-2370
📋 GST Invoice Available

Flywoo ROBO 1002 23500KV Motor - 1PC

₹1,449.00 (Inclusive of all taxes)
Out of Stock

The Flywoo ROBO 1002 is a 23500KV brushless motor engineered for high-performance 1S Tiny-Whoop and micro FPV drones. Featuring a 9N12P configuration and a 1.5mm shaft, it delivers exceptional power density and rapid throttle response for competitive racing and agile freestyle flight.

Features

  • Ultra-high 23500KV rating optimized for 1S LiPo battery systems.
  • Compact 1002 stator size (10mm diameter x 2mm length) for maximum power-to-weight ratio.
  • 9N12P magnetic configuration for smooth torque delivery and efficient operation.
  • 1.5mm precision-machined steel shaft for reliable, low-vibration performance.
  • Lightweight construction at just 2.5 grams (with 5cm wire) for agile micro-drone builds.

Out of stock

Description

The Flywoo ROBO 1002 23500KV motor is designed to push the performance envelope of 1S-powered micro and Tiny-Whoop drones. Its core utilizes a 10mm stator diameter paired with a 2mm stack height, creating a compact yet powerful magnetic circuit. The 9N12P (9 stator teeth, 12 magnet poles) design enhances operational smoothness and efficiency, reducing cogging torque for precise low-speed control.

Built with durability in mind, the motor features a robust bell housing and high-grade bearings to withstand the high-RPM demands of 23500KV operation on 1S voltage. This motor integrates seamlessly with lightweight micro flight controllers and 1S ESCs, providing the instant thrust and rapid dynamic response required for technical indoor racing and acrobatic freestyle maneuvers.

Key Features

  • High-RPM Stator Design: Optimized 1002 stator geometry delivers maximum power output within a minimal footprint, ideal for weight-critical builds.
  • Precision Magnetic Circuit: The 9N12P configuration balances torque smoothness with high efficiency, reducing electrical noise and improving flight times.
  • Durable Mechanical Construction: Features a hardened steel shaft and reinforced bell to handle crash impacts and sustained high-RPM use.
  • Optimized Thermal Management: Motor windings and housing are designed for efficient heat dissipation, maintaining performance during continuous operation.
  • Lightweight Integration: At only 2.5 grams, it minimizes overall drone weight, directly enhancing thrust-to-weight ratio and agility.
  • Wide Compatibility: Designed for 1S LiPo systems and compatible with popular micro drone frames and 1-2S capable ESCs.

Applications

  • High-performance 65mm to 75mm 1S Tiny-Whoop drones for indoor racing.
  • Ultra-lightweight 2-inch micro freestyle and cinewhoop builds operating on 1S power.
  • DIY micro FPV drone projects requiring maximum thrust from a 1S battery pack.
  • Weight-optimized micro long-range builds where efficiency and power are critical.
  • Replacement or upgrade motor for popular 1S micro drone platforms like the Mobula6/7 or similar.

Technical Specifications

Motor ModelROBO 1002
KV Rating23500 KV
Compatible Voltage1S LiPo
Configuration9N12P
Stator Diameter10 mm
Stator Length2 mm
Shaft Diameter1.5 mm
Motor Dimensions (Dia. x Len.)Φ13.5 x 7.75 mm
Weight (with 5cm wire)2.5 g
Idle Current (@10V)1.5 A

Frequently Asked Questions

What battery voltage is the Flywoo ROBO 1002 23500KV motor designed for?

The Flywoo ROBO 1002 motor is specifically engineered for 1S LiPo battery systems. Its ultra-high 23500KV rating is optimized to deliver maximum RPM and thrust from the nominal 3.7V of a single-cell battery, making it unsuitable for higher voltage (2S+) setups which would likely over-speed and damage the motor.

What is the significance of the 9N12P configuration?

The 9N12P configuration refers to 9 stator teeth (N) and 12 magnet poles (P). This design offers a favorable balance for small motors, providing smoother rotation with reduced cogging torque compared to simpler configurations. This results in more precise low-speed control, higher efficiency, and less electrical noise, which is crucial for the stable video transmission and flight performance of micro FPV drones.

What size propellers and frames is this motor compatible with?

The ROBO 1002 motor is designed for 31mm to 40mm bi-blade or tri-blade propellers commonly used on 65mm and 75mm wheelbase Tiny-Whoop frames. Its 1.5mm shaft diameter and compact Φ13.5mm bell diameter make it a direct fit for most micro drone frames supporting 1002-size motors. Always ensure your frame's motor mounting holes match the standard hole pattern for this motor size.

What ESC is required to run this 23500KV motor?

You will need a 1S-capable BLHeli_S or BLHeli_32 ESC rated for at least 5A continuous current per motor. Due to the high KV, it's crucial to use an ESC with robust MOSFETs and clean power filtering. Dedicated 1-2S AIO (All-In-One) flight controllers with integrated ESCs or separate 1S micro ESCs are the standard choices for builds utilizing this motor.

Package Includes

  • 1 x Flywoo ROBO 1002 23500KV Brushless Motor

Additional Information

Weight 0.0025 kg
Dimensions 0.775 × 1.4 cm
