Grow R303 Fingerprint Module - USB 2.0 & UART Interface
The Grow R303 Fingerprint Module is a high-resolution biometric sensor offering USB 2.0 and 3.3V TTL UART interfaces for integration into access control systems, attendance terminals, and embedded security projects. It features a 508 DPI optical sensor with a storage capacity for up to 1000 fingerprints.
Features
- 508 DPI optical fingerprint sensor with 208 x 288 pixel array
- Dual interface: USB 2.0 and 3.3V TTL UART for flexible connectivity
- Storage capacity for up to 1000 fingerprint templates
- Low power operation with a working current under 55mA

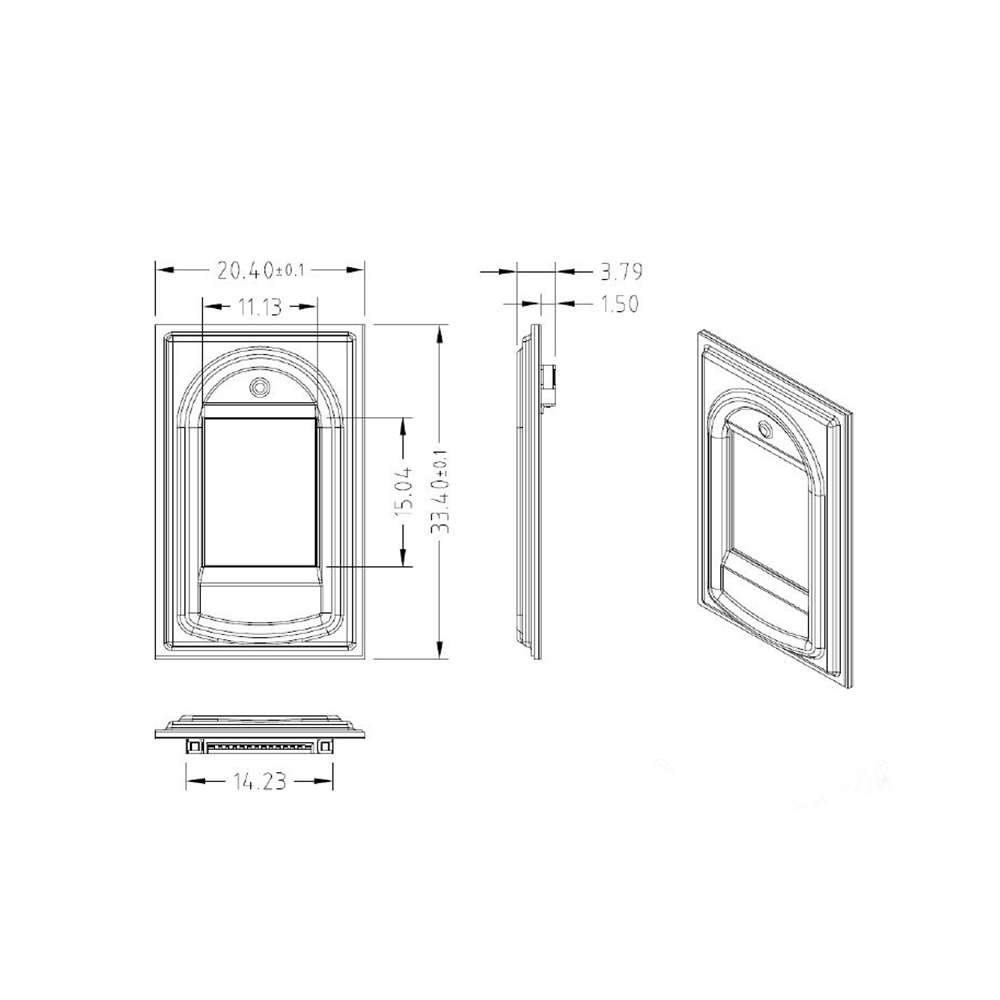

- Compact module dimensions of 20.4 x 33.4 mm
Out of stock
The Grow R303 Fingerprint Module integrates a high-resolution optical sensor and a dedicated processing chip for reliable biometric authentication. It captures fingerprint images with a resolution of 508 DPI across an effective acquisition area of 11 x 15 mm, ensuring detailed feature extraction for accurate matching.
Designed for low-power embedded applications, the module operates from a 4.2V to 6.0V DC supply and communicates via USB 2.0 or a 3.3V logic-level UART serial interface, making it compatible with a wide range of microcontrollers (Arduino, ESP32, STM32) and single-board computers. Its onboard algorithm chip handles image processing and template matching, offloading computational tasks from the host system.
Additional Information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
