Grow KR501 Fingerprint Control Board - 20 Fingerprint Capacity, 3.7-10V DC
The Grow KR501 Fingerprint Control Board is a compact biometric module designed for secure access control systems, operating from a wide 3.7-10V DC supply and compatible with 3.3V logic microcontrollers like Arduino, ESP32, and Raspberry Pi.
Features
- Stores up to 20 unique fingerprints for multi-user access control.
- Wide operating voltage range from 3.7V to 10V DC for flexible power supply integration.
- Ultra-low standby current of 2.5-7 µA ensures minimal power consumption in idle state.
- Provides a 1-second, 3.3V/500mA high-level output signal to directly drive relays or solenoids.

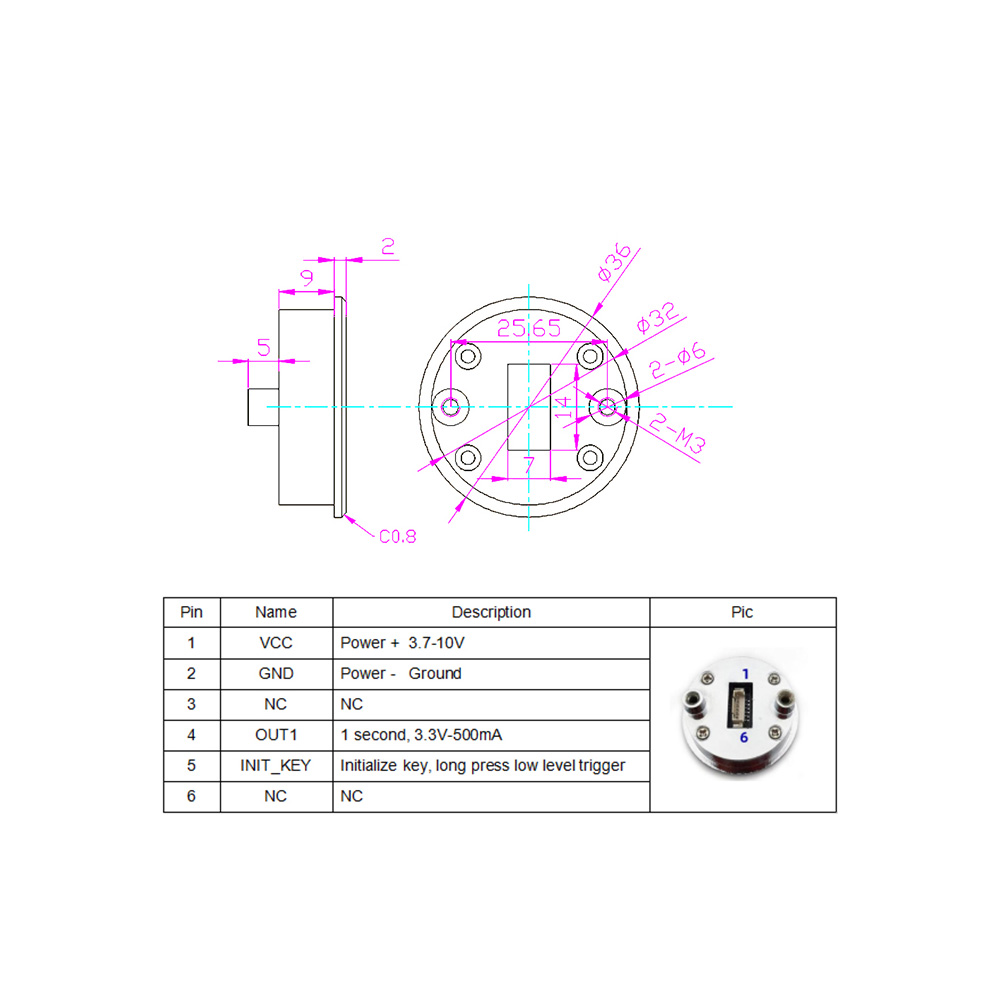

- Compact 36mm diameter circular PCB design for easy integration into panels and enclosures.
Out of stock
The KR501 Fingerprint Control Board utilizes capacitive fingerprint sensing technology to capture and match unique biometric patterns. It features an onboard processor for template storage and matching, delivering a secure digital output signal upon successful verification.
Engineered for reliability, the board operates across a broad temperature range typical for consumer electronics and includes a dedicated INIT_KEY pin for resetting the fingerprint database to its factory initialization state. Its low-power design makes it suitable for battery-backed or always-on security applications.
Additional Information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 5 × 5 × 4 cm |
