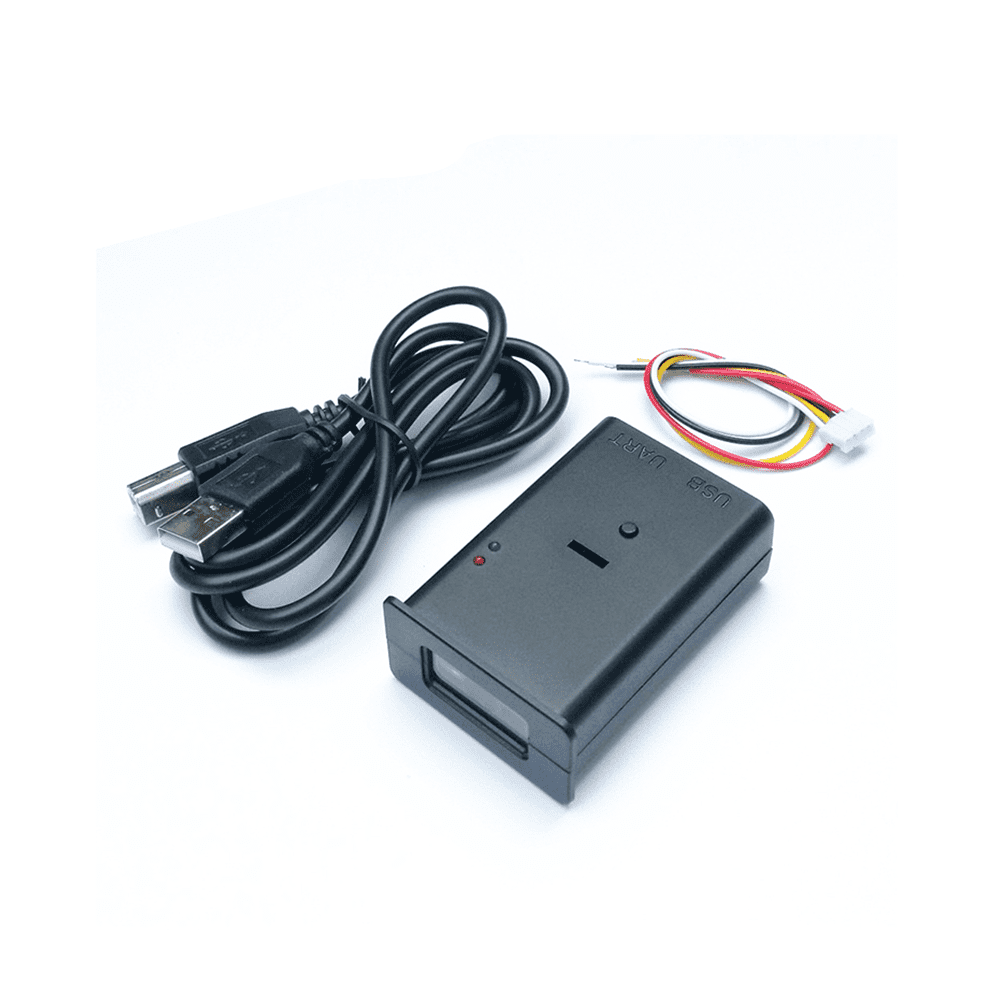

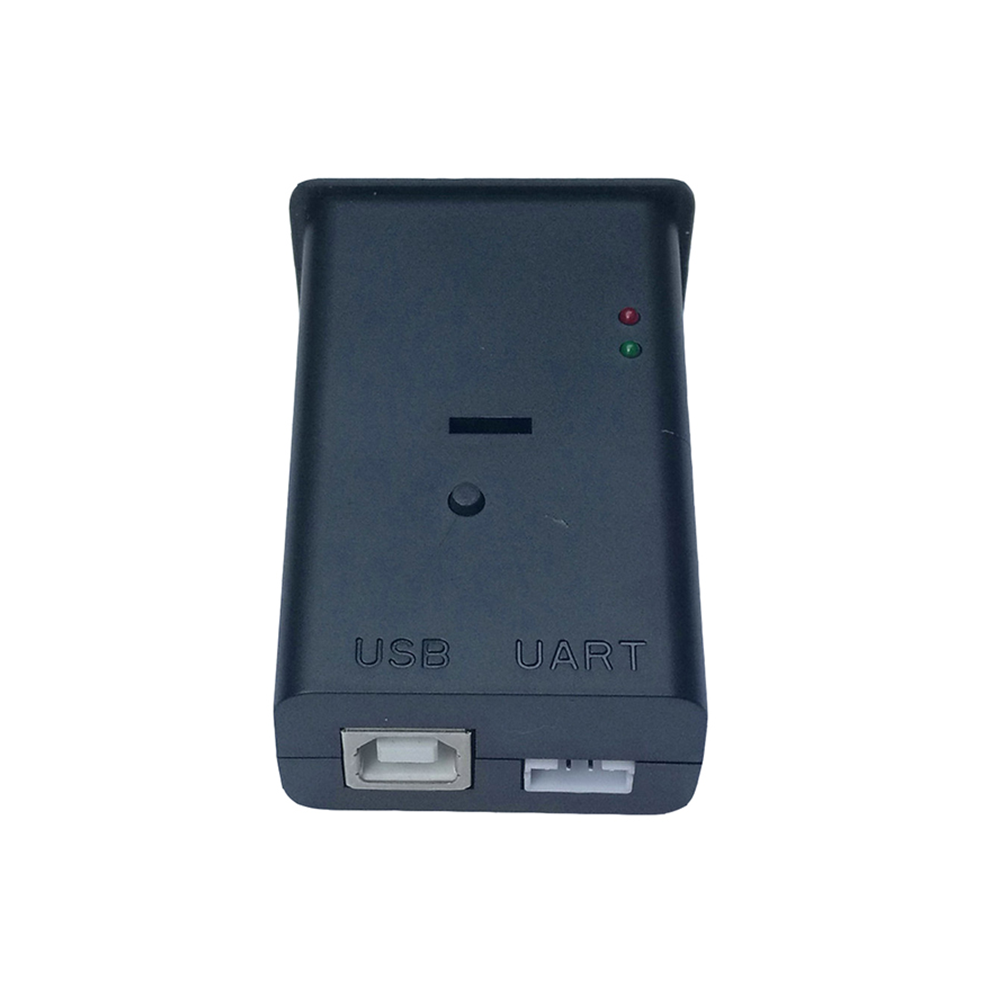

Grow GM66 Barcode Scanner Module - USB2.0 & UART Interface
The Grow GM66 is a compact, high-resolution barcode scanner module supporting both 1D and 2D symbologies, including QR Code and Data Matrix. Featuring USB2.0 and UART interfaces, it operates on a 5V supply and is designed for integration into embedded systems, POS terminals, and industrial automation equipment.
Features
- High-resolution scanning capability down to 0.10mm (4mil).

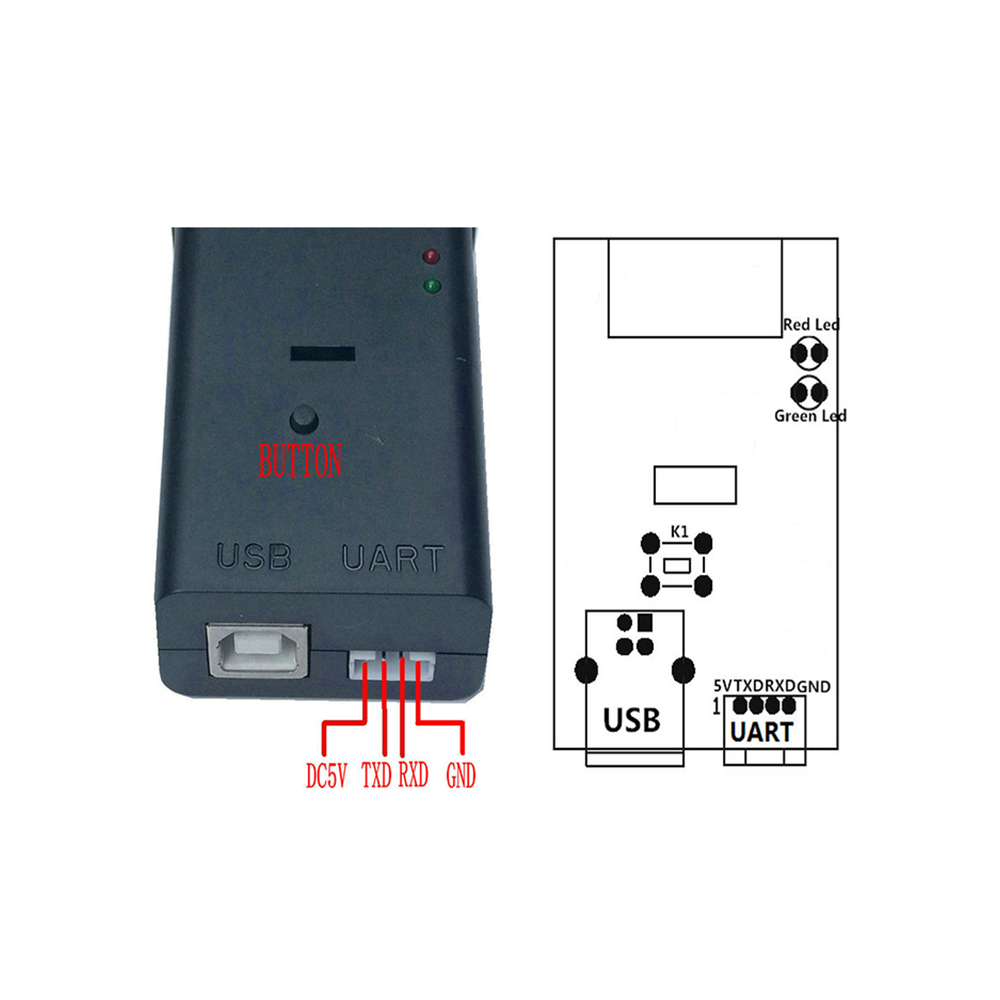

- Dual interface support: USB2.0 for direct PC connection and UART for microcontroller integration (Arduino, Raspberry Pi, ESP32).
- Wide reading distance range from 25mm to 250mm with optimized 617nm LED aimer and 6500K illumination LEDs.
- Comprehensive barcode support including 1D (EAN-13, Code 128, etc.) and 2D (QR Code, PDF417, Data Matrix) formats.
- Robust operating temperature range from -20°C to 55°C for reliable performance in varied environments.
Out of stock
The GM66 barcode scanner module utilizes a high-performance imaging sensor to capture and decode a wide array of 1D and 2D barcodes. Its optical system, featuring a 617nm laser aimer and broad-spectrum 6500K white LEDs, ensures reliable reading under diverse lighting conditions from 0 to 85,000 lux. The module outputs decoded data via a selectable USB2.0 or TTL-level UART interface, making it compatible with both standard computers and 3.3V/5V logic microcontroller platforms.
Engineered for industrial and commercial durability, the scanner operates across an extended temperature range and features a compact, lightweight form factor suitable for space-constrained installations. Its flexible mounting and wide scan angles (Roll: 0-360°, Pitch: ±65°) facilitate integration into kiosks, vending machines, inventory tracking systems, and automated logistics equipment.
Additional Information
| Weight | 0.031 kg |
|---|---|

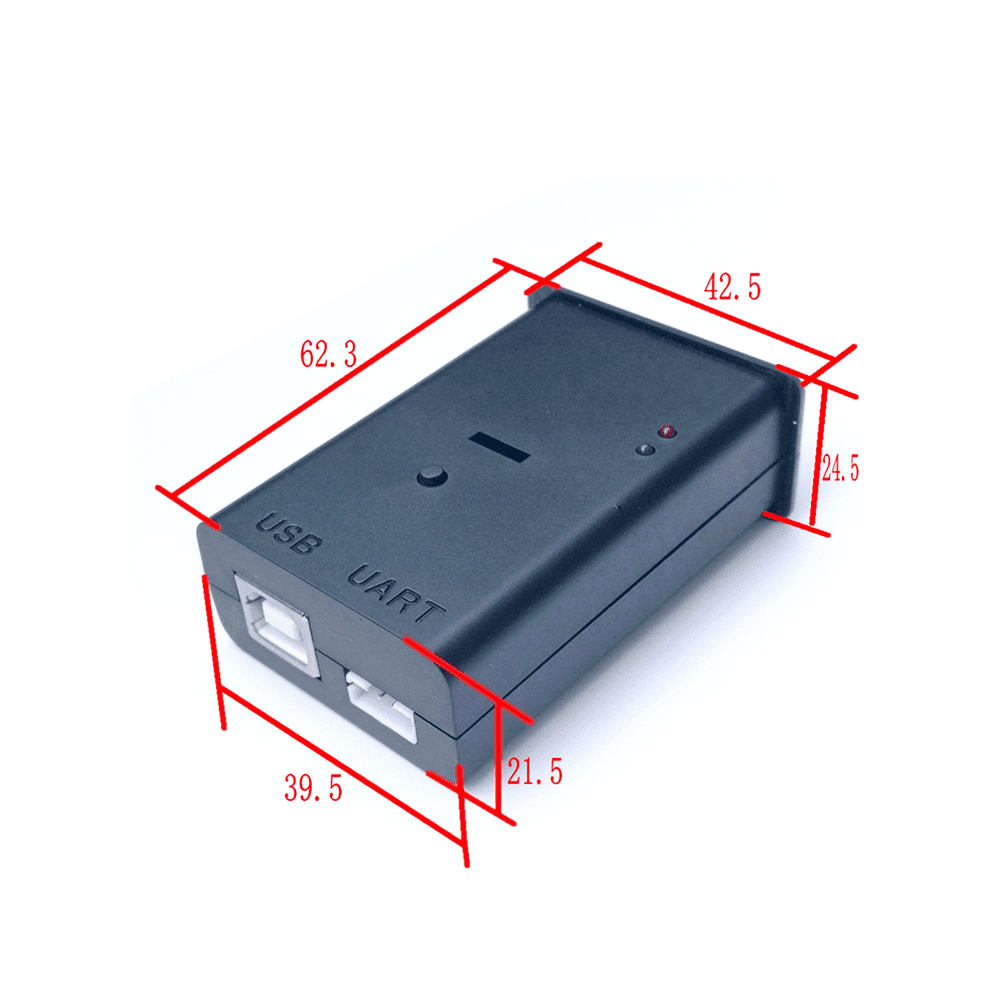

| Dimensions | 6.23 × 4.25 × 2.45 cm |
