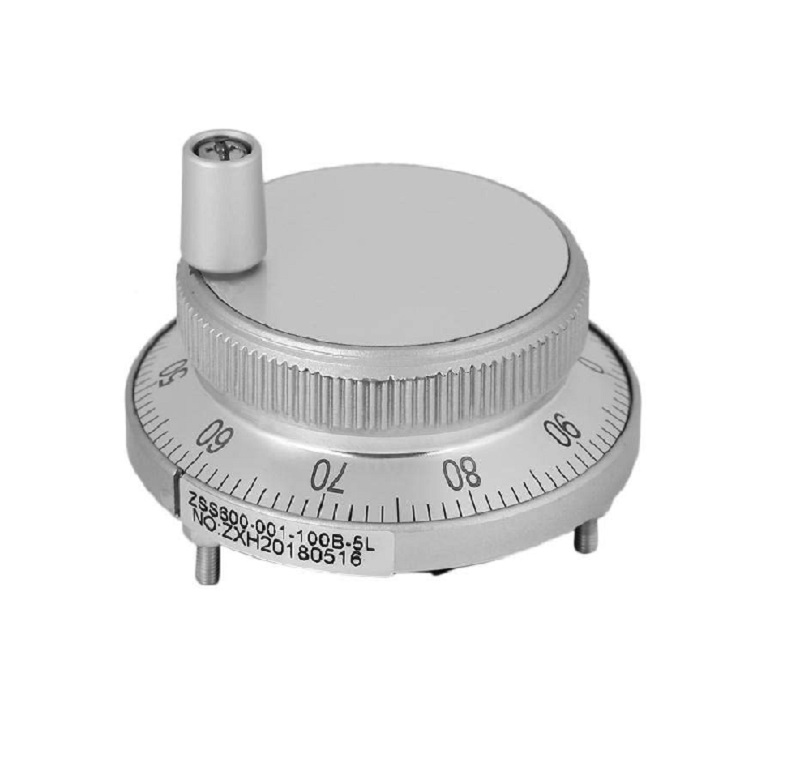

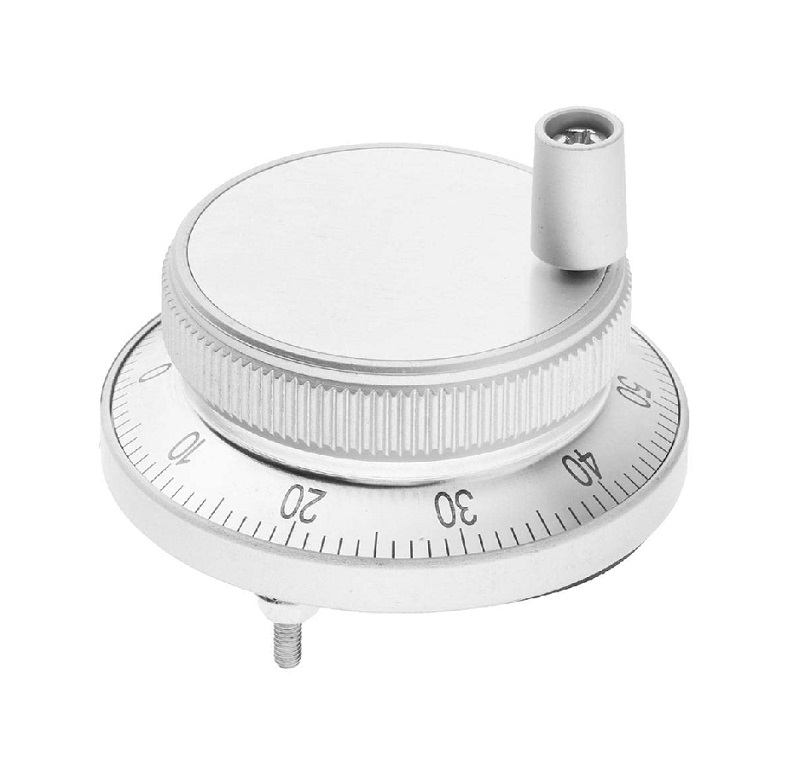

Generic ZSS600-100B-5L Hand Wheel Pulse Encoder - 100 PPR, 5VDC, 60mm Diameter
The ZSS600-100B-5L is a 100 PPR hand wheel pulse encoder designed for manual control and precise positioning in CNC machinery and industrial automation systems. Operating at 5VDC, it provides quadrature pulse output for direct integration with CNC controllers, PLCs, and motion control boards.
Features
- 100 Pulses Per Revolution (PPR) resolution for fine manual control
- 5VDC operating voltage compatible with standard CNC and logic-level systems
- 60mm diameter hand wheel with integrated encoder for ergonomic manual operation
- Generates quadrature A/B pulse signals for precise bidirectional position tracking
- Essential for manual data input (MDI), jogging, and position override in CNC applications
Out of stock
The ZSS600-100B-5L hand wheel encoder is a manual pulse generator (MPG) that translates rotary hand wheel motion into digital quadrature pulses. This electromechanical interface allows operators to perform precise manual positioning, tool offset adjustments, and axis jogging on CNC mills, lathes, and routers. The integrated optical or magnetic encoder mechanism ensures reliable signal generation without contact wear.
Built for panel or handheld mounting, the 60mm wheel provides a solid grip for fine adjustments. The 5VDC power requirement and standard pulse output make it directly compatible with most CNC controller input ports and industrial PLC high-speed counters, facilitating seamless integration into existing control systems for enhanced operational flexibility.
Additional Information
| Weight | 0.186 kg |
|---|---|
| Dimensions | 8 × 9 × 6.5 cm |
