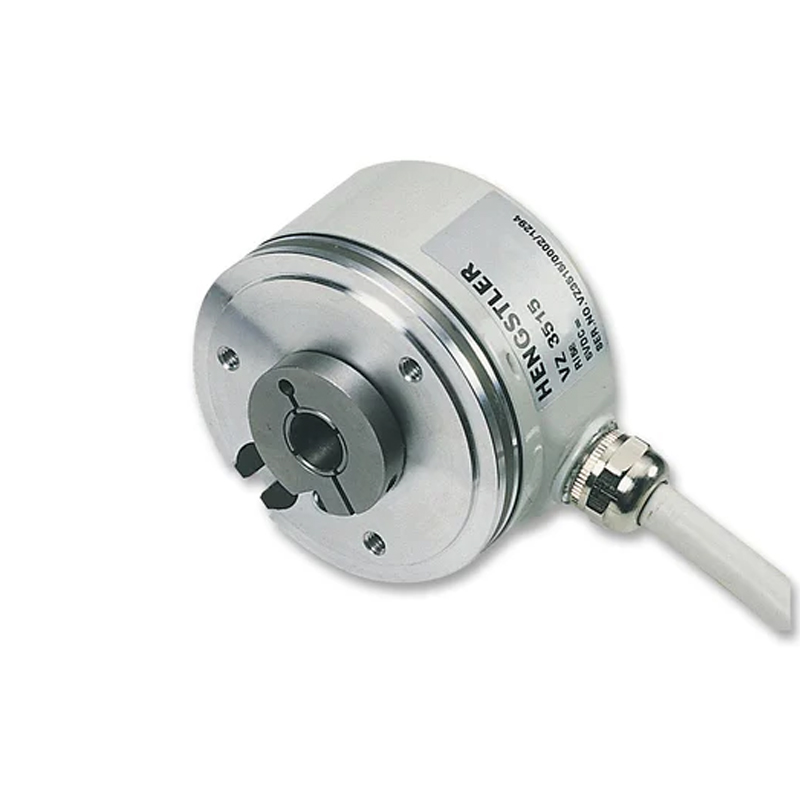

Hengstler RI58-D/5000ED.37IB Rotary Encoder, Optical Incremental, 5000 PPR, 0 Detents, Horizontal, Without Push Switch
The Hengstler RI58-D/5000ED.37IB is a high-precision optical incremental rotary encoder delivering 5000 pulses per revolution (PPR) for accurate motion control and position feedback in industrial automation systems. It features a robust flange-mount housing, push-pull output, and is compatible with PLCs and motor controllers operating on a 10-30V DC supply.
Features
- High-resolution 5000 PPR optical incremental encoder for precise angular measurement.
- Rugged industrial housing with IP64/IP67 protection for harsh environments.
- Wide 10-30V DC supply voltage range and high-speed operation up to 10,000 RPM.
- Reliable push-pull output with 3 channels (A, B, Z) for robust signal transmission.
- Hollow shaft design with 12mm shaft length for easy motor and shaft integration.
Out of stock
The Hengstler RI58-D/5000ED.37IB employs an optical incremental sensing principle, where a light source and photodetector read a rotating code disk to generate precise square wave pulses. This provides accurate real-time feedback on shaft position, speed, and direction for closed-loop control systems.
Engineered for industrial durability, the encoder features a robust aluminum housing with IP64/IP67 ingress protection, making it resistant to dust and water jets. Its wide operating temperature range of -20°C to +70°C and integrated short-circuit protection ensure reliable performance in demanding automation, robotics, and CNC machinery applications.
Additional Information
| Weight | 0.247 kg |
|---|---|
| Dimensions | 6.85 × 6.35 cm |
