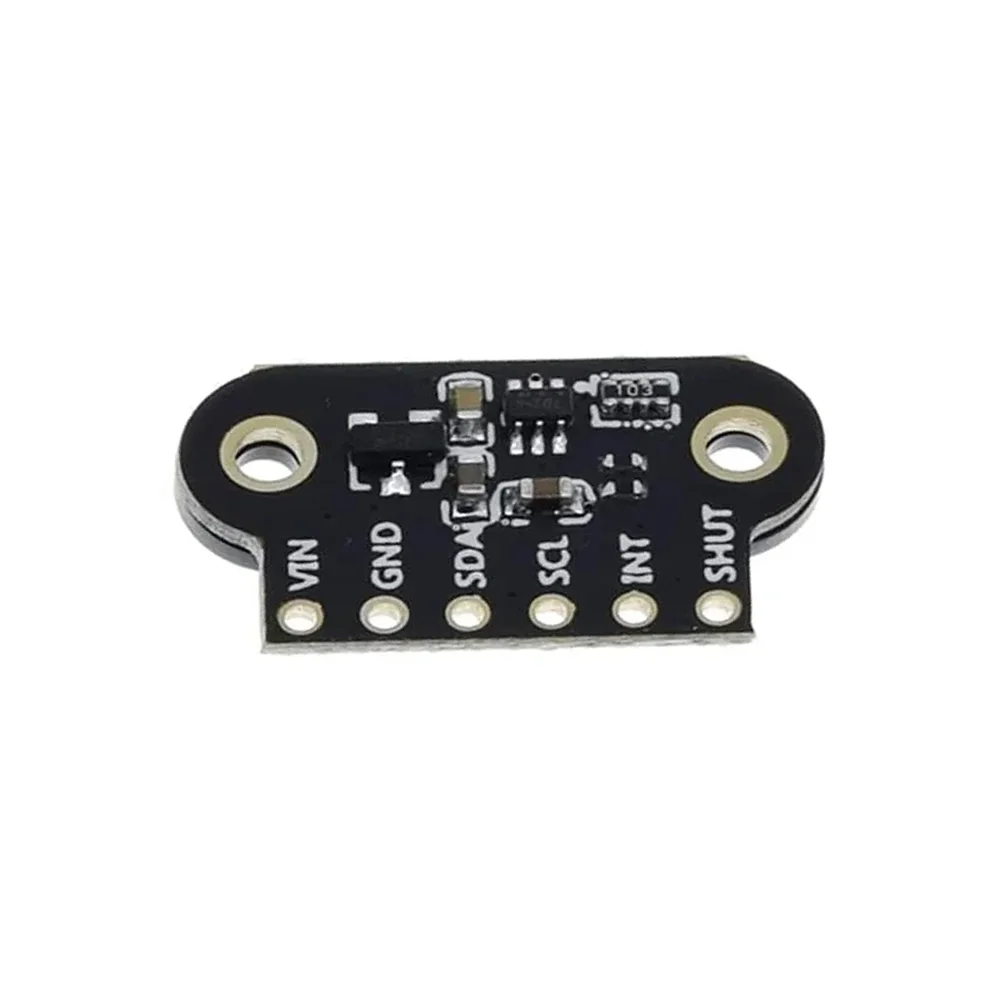

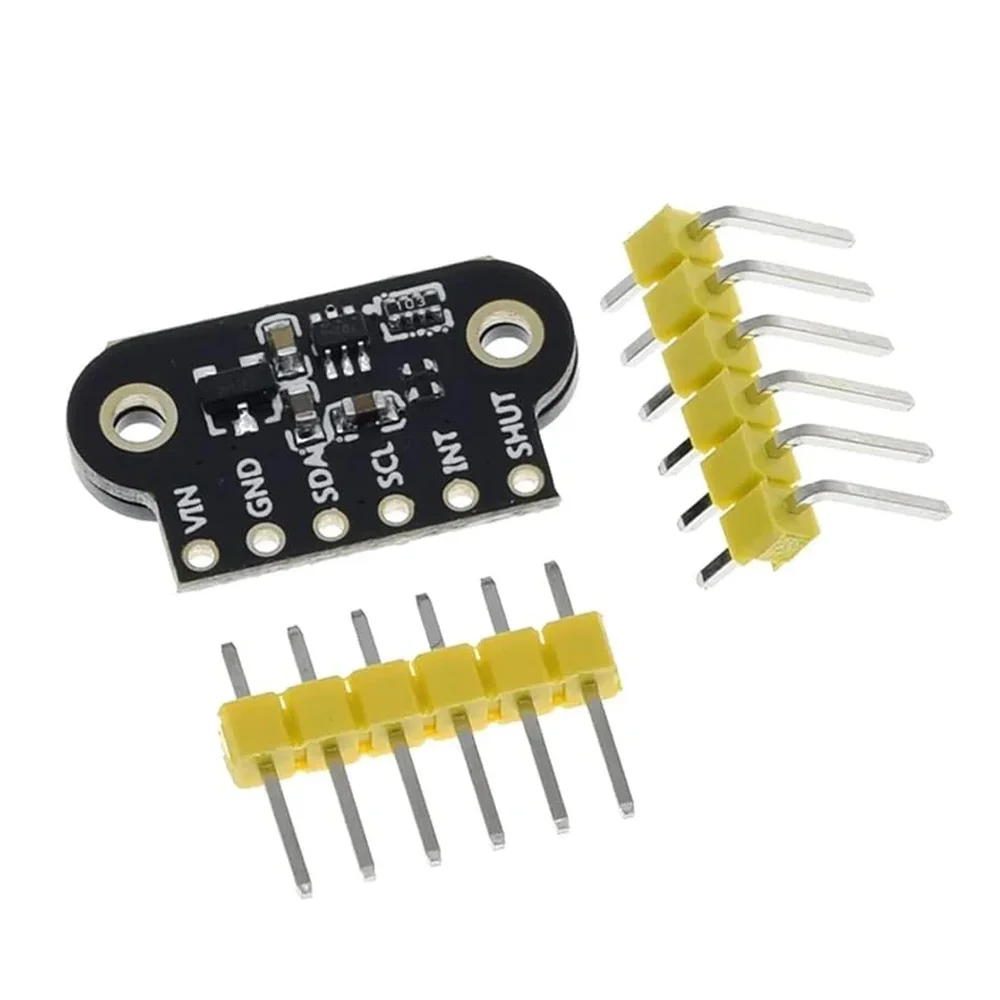

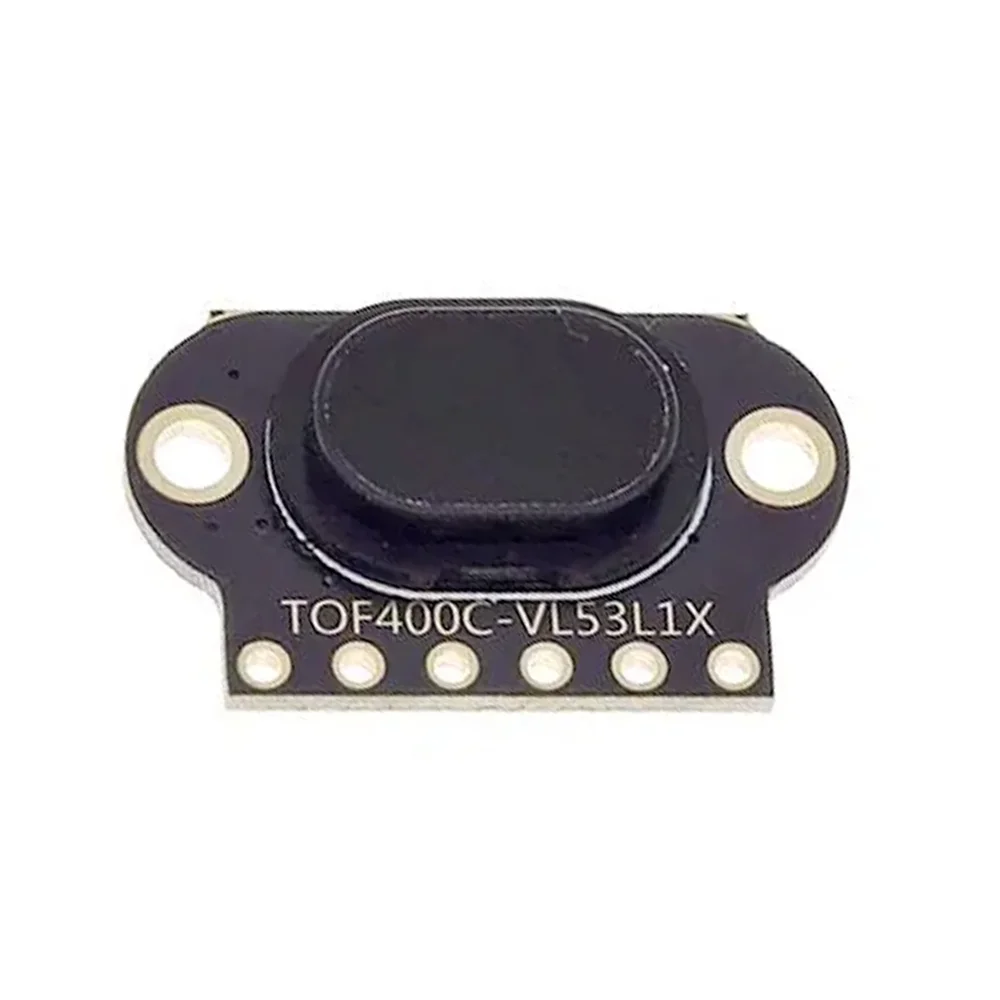

Generic TOF400C VL53L1X Laser Ranging Sensor Module - I2C Interface
The TOF400C is a compact laser ranging module based on the STMicroelectronics VL53L1X Time-of-Flight (ToF) sensor, providing precise distance measurements from 4 cm to 400 cm via a standard I2C interface. It is directly compatible with 3.3V/5V logic microcontrollers including Arduino, ESP32, STM32, and Raspberry Pi for robotics, drones, and embedded sensing applications.
Features
- VL53L1X-based Time-of-Flight (ToF) laser ranging sensor with 940nm infrared emission.
- Extended measurement range from 4 cm to 400 cm with a 27° narrow field of view.
- Standard I2C digital communication interface for easy microcontroller integration.
- Wide operating voltage range from 3.0V to 5.0V DC, suitable for 3.3V and 5V logic systems.
- Compact PCB module design (21 x 11 mm) for space-constrained embedded and robotic applications.
Out of stock
The TOF400C module utilizes the VL53L1X sensor’s advanced Time-of-Flight (ToF) principle, emitting short pulses of 940nm infrared laser light and measuring the time for the reflected photons to return to the SPAD (Single-Photon Avalanche Diode) array. This method provides high-precision, direct distance measurement largely immune to ambient light interference and target surface color or texture, offering superior performance compared to traditional infrared or ultrasonic sensors.
Designed for seamless integration, the module features a standard I2C interface with readily available driver libraries for popular development platforms. Its compact footprint and low-profile design make it ideal for integration into drones for altitude hold, robotics for obstacle avoidance and navigation, industrial equipment for non-contact positioning, and portable devices for gesture or proximity sensing.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 2.1 × 1.1 cm |
