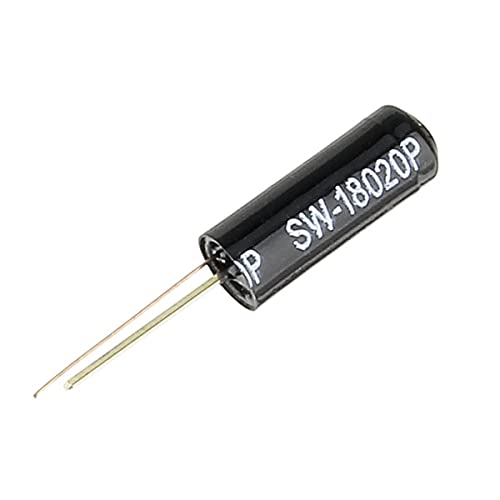

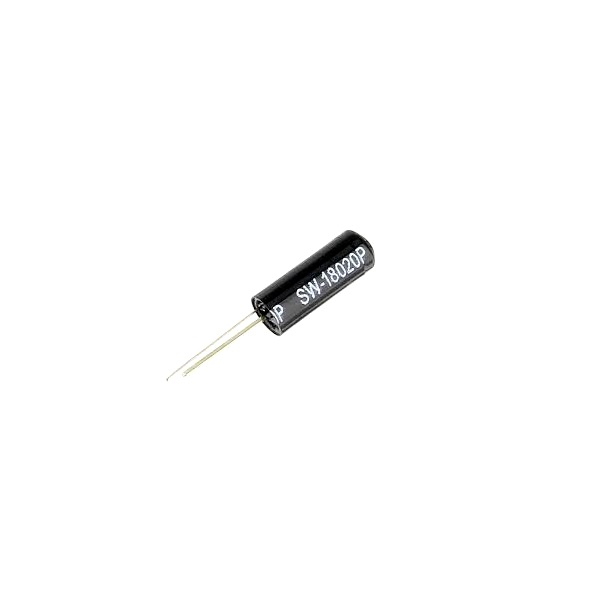

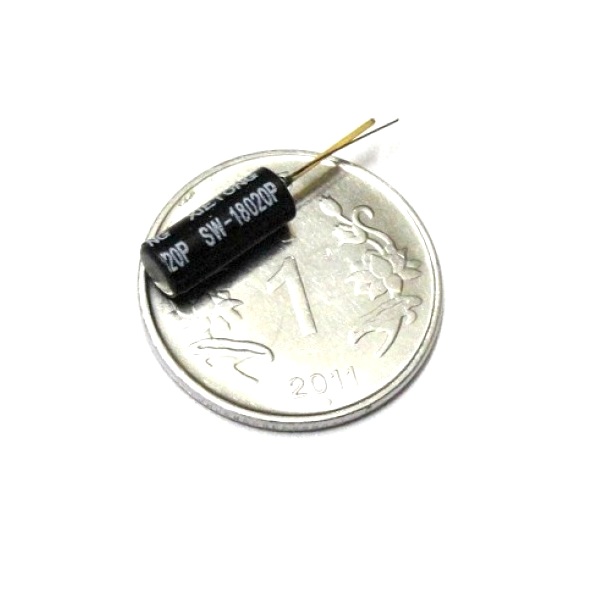

Generic SW-18020P Vibration Sensor Module - Spring-Type Non-Directional Trigger
The SW-18020P is a spring-type, non-directional vibration sensor module designed for detecting physical shocks and vibrations in the surrounding environment. It features a wide-voltage LM393 comparator for clean signal output and is compatible with common microcontroller platforms like Arduino and Raspberry Pi for alarm and monitoring systems.
Features
- Spring-type, non-directional vibration-induced trigger switch.
- Wide operating voltage range up to 12V DC with LM393 comparator.
- Outputs a clean digital signal with a driving capability exceeding 15mA.
- Robust operating temperature range from -40°C to +80°C.
- Includes a mounting hole for easy installation in enclosures.
Out of stock
The SW-18020P Vibration Sensor Module integrates a high-sensitivity SW-18020 series vibration switch with a signal-conditioning comparator circuit. The spring-type switch mechanism is non-directional, meaning it can be triggered by vibration from any angle, making it suitable for omnidirectional detection applications. The onboard LM393 comparator provides a stable digital output signal, simplifying interface with digital input pins on microcontrollers or logic circuits.
Constructed for durability across a wide temperature span, this module is designed for integration into various electronic and electromechanical systems where shock or vibration detection is required for operational monitoring or safety interlocks.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 4 × 3 × 2 cm |
