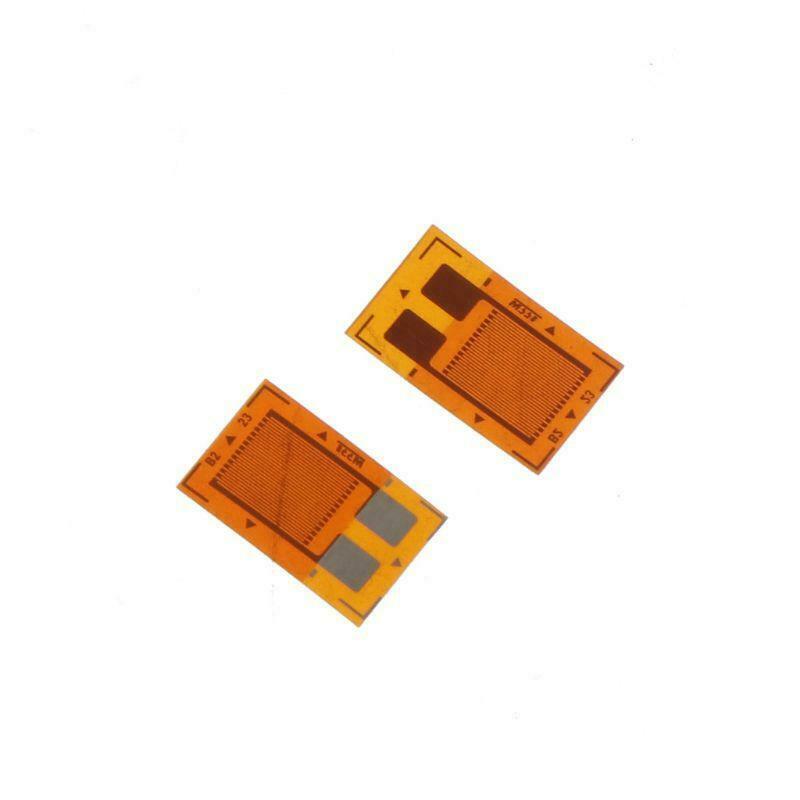

BF350 High Precision Resistance Strain Gauge / Pressure Sensor / Weighing Sensor 350 Ohm
The BF350 is a high-precision 350Ω foil strain gauge designed for direct strain measurement on components, offering excellent stability and accuracy for pressure and weighing sensor applications. It is suitable for integration into 0.02-level precision manufacturing systems and custom sensor builds.
Features
- High-precision foil strain gauge with 350Ω nominal resistance and ≤±0.1% tolerance
- Designed for 0.02-level manufacturing, ensuring minimal output deviation
- Features automatic temperature and creep compensation for stable long-term performance
- Robust construction with modified phenolic backing and Cuni gate wire

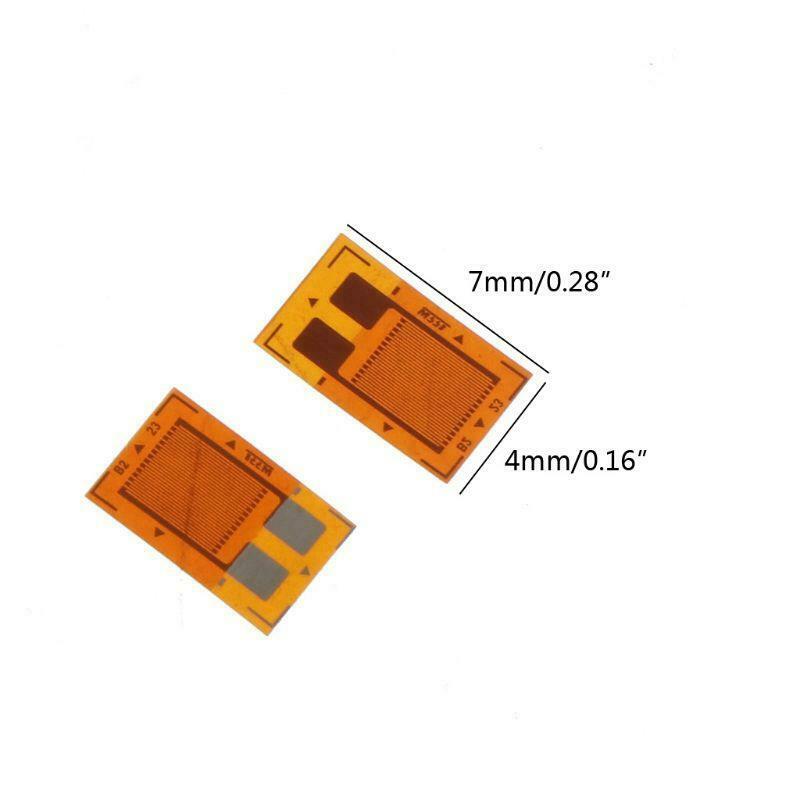

- Compact dimensions of 7.4mm x 4.4mm for versatile mounting
Out of stock

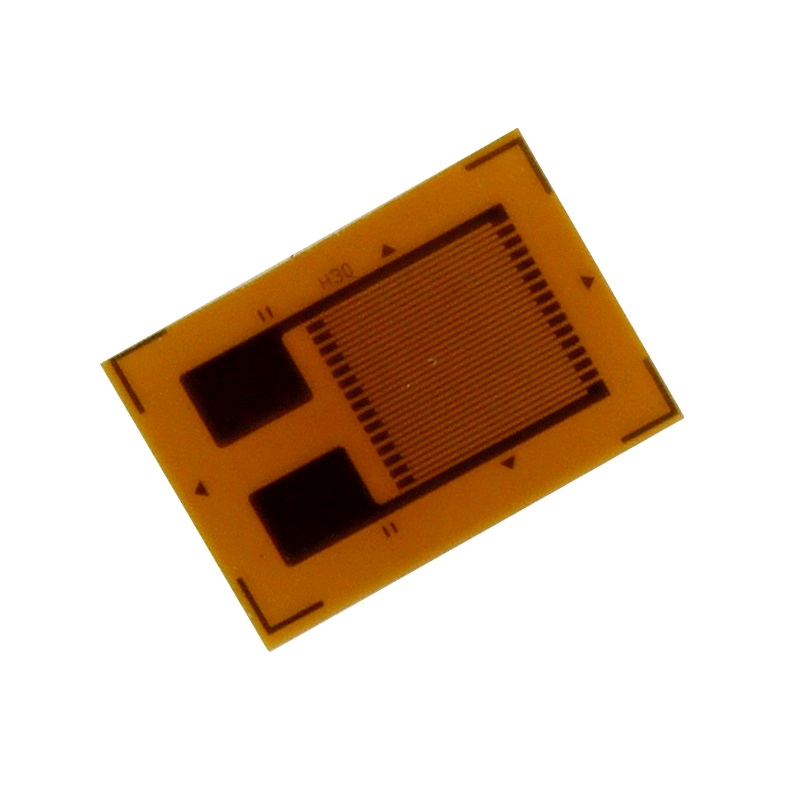

The BF350 is a precision metal foil strain gauge that converts mechanical strain into a proportional change in electrical resistance. Its fully-closed structure protects the sensitive grid, ensuring reliable data transmission and high immunity to environmental interference. The gauge is engineered for high-accuracy applications, including the manufacture of pressure transducers and load cells where output deviation must be tightly controlled.
With a strain limit of 2.0% and a fatigue life exceeding 1 million cycles, the BF350 offers durability for dynamic and static measurements. Its operating temperature range of -30°C to +80°C and built-in compensation mechanisms make it suitable for use in varied industrial environments, from laboratory test benches to embedded OEM sensor systems.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 0.74 × 0.44 cm |
