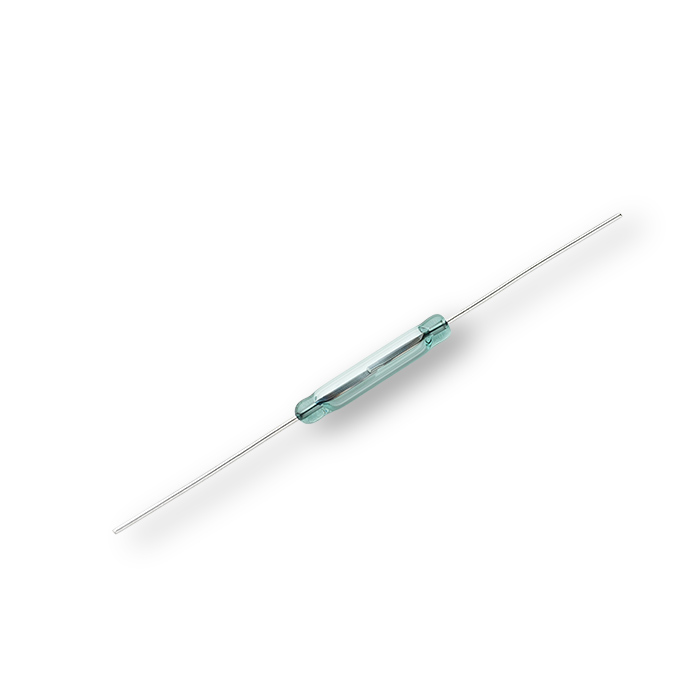

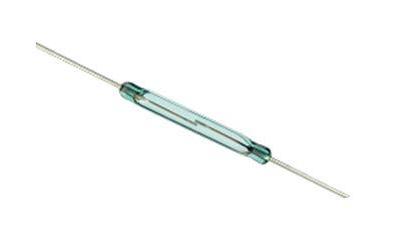

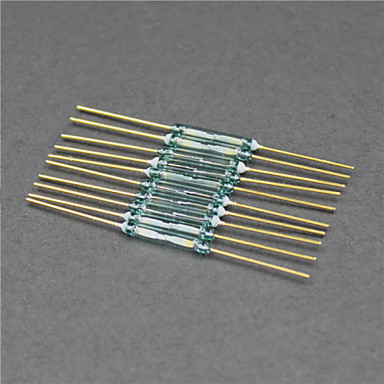

Generic Reed Switch 2×14mm Normally Open Magnetic Sensor (Pack of 10)
This 2×14mm Normally Open (NO) Reed Switch is a magnetically controlled, hermetically sealed switch ideal for non-contact sensing in Arduino, Raspberry Pi, and industrial control projects. It closes its contacts when exposed to a magnetic field, providing a reliable, low-power switching solution.
Features
- Normally Open (NO) contact configuration for fail-safe operation.
- Compact glass-encapsulated design with 2mm diameter and 14mm length.
- High switching capacity: 300 VDC / 0.55 A maximum ratings.
- Wide operating temperature range from -50°C to +140°C.
- Hermetically sealed contacts ensure reliable operation in various environments.
Out of stock
The Reed Switch operates on a simple magnetic principle: two ferromagnetic reeds inside a sealed glass tube are drawn together to close the circuit when an external magnetic field is applied. Upon removal of the field, the reeds separate, opening the circuit. This hermetically sealed construction protects the contacts from dust, moisture, and oxidation, ensuring long-term reliability.
With a maximum switching voltage of 300 VDC and a current rating of 0.55 A, this switch is suitable for low-power signal switching and detection circuits. Its high insulation resistance and robust design make it a dependable component for position sensing, security systems, and proximity detection in both prototyping and industrial applications.
Additional Information
| Weight | 0.03 kg |
|---|
