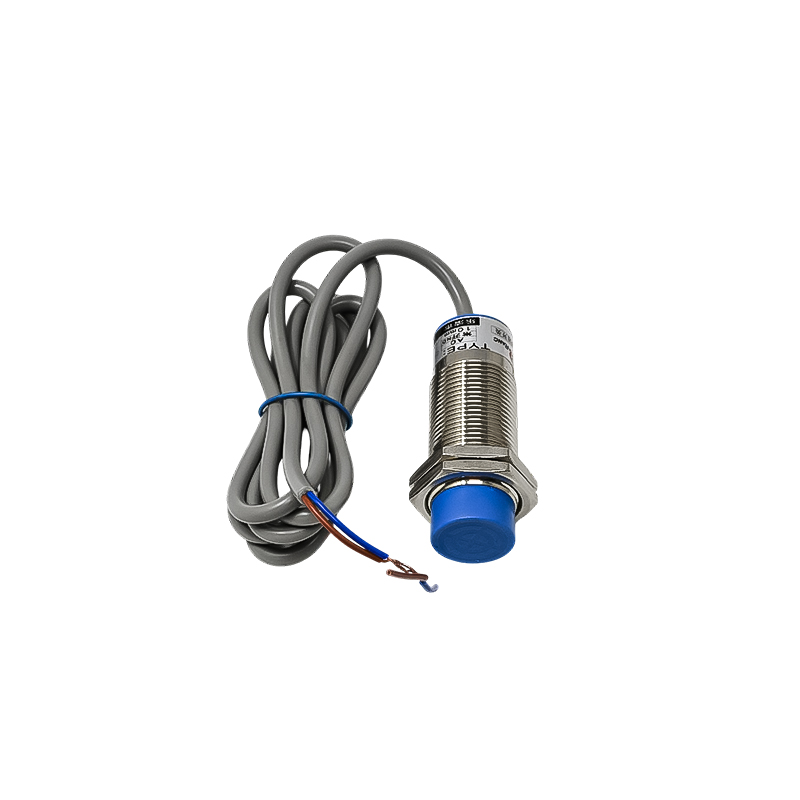

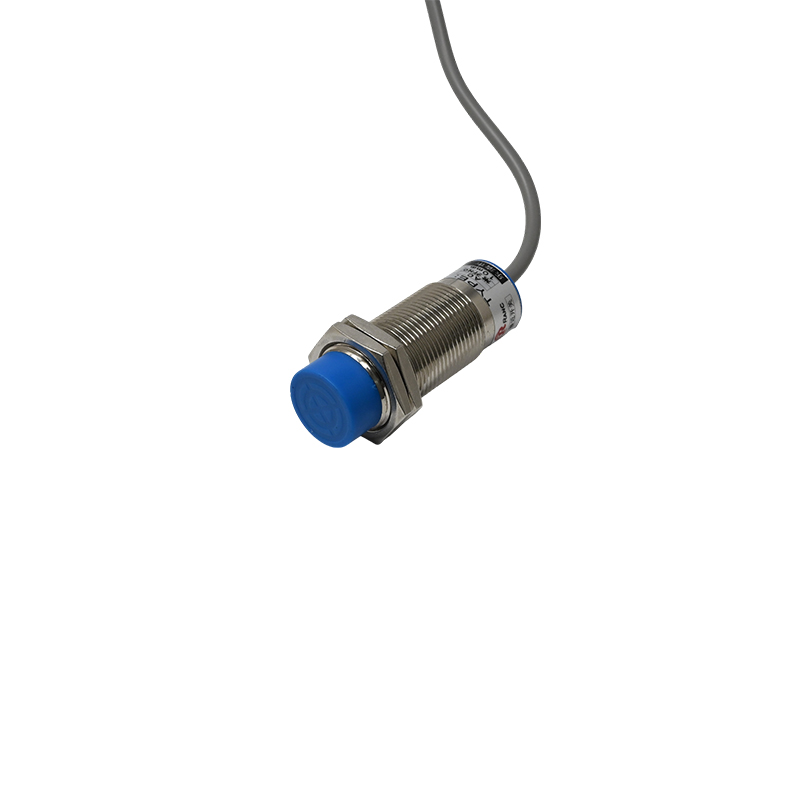

Generic LJ24A3-10-J/EZ / R24-10A1 Inductive Proximity Sensor, AC NO, 90–250VAC, 400mA, 10mm Range, IP65, Brass-Nickel Plated Housing
The LJ24A3-10-J/EZ / R24-10A1 is an AC-powered, normally open (NO) inductive proximity sensor designed for non-contact detection of ferrous metal targets within a 10mm range. Featuring a robust brass-nickel plated housing and IP65 protection, it integrates directly into industrial control systems, PLCs, and automation panels operating on 90–250VAC.
Features
- AC-powered inductive sensor with 90–250VAC operating range and 400mA max output current.
- Normally open (NO) output configuration for direct integration into control logic.
- 10mm nominal detection distance for ferrous (iron) metal targets.
- IP65-rated brass-nickel plated housing ensures durability in dusty or wet industrial environments.
- Includes reverse connection protection for enhanced electrical safety and longevity.
Out of stock
The LJ24A3-10-J/EZ inductive proximity sensor operates on the principle of electromagnetic induction, generating an oscillating field from its sensing face. When a ferrous metal object enters this field within the specified 10mm range, it causes a detectable change in oscillation amplitude, triggering the sensor’s solid-state output. This non-contact detection method eliminates mechanical wear and provides reliable, maintenance-free operation.
Constructed with a brass-nickel plated housing and an ABS sensing face, the sensor is built to withstand challenging industrial conditions, including exposure to oil mist and particulate matter, as indicated by its IP65 ingress protection rating. The integrated 1.2-meter cable facilitates straightforward installation into control cabinets and machine panels, making it suitable for high-voltage industrial automation environments.
Additional Information
| Weight | 0.138 kg |
|---|---|
| Dimensions | 8 × 12 × 3 cm |
