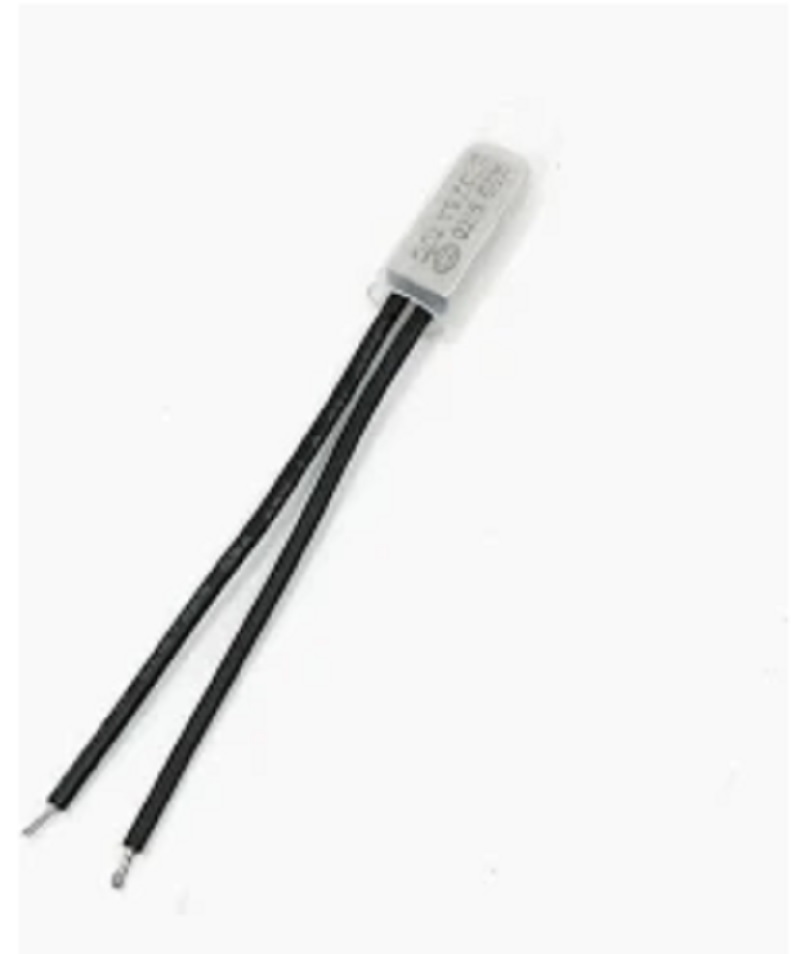

KSD9700/BK05-BB1D Metallic Shell Temperature Control Switch - 5A 250V, 105C Normally Open
The KSD9700/BK05-BB1D is a metallic-shell, snap-action thermal switch rated for 5A at 250V AC. This normally open (NO) device opens its contacts at 105°C, providing reliable over-temperature protection for motors, transformers, and power supplies.
Features
- Metallic shell construction for durability and effective thermal conduction.
- Normally Open (NO) snap-action switch opens at the rated 105°C temperature.
- Rated for 5A at 250V AC, suitable for direct control of small loads.
- Compact dimensions (11 x 8 x 1 cm) for easy integration into enclosures.
- Designed for reliable over-temperature protection in electrical devices.
Out of stock
The KSD9700/BK05-BB1D is a bimetallic disc-type thermal switch housed in a metallic shell. When the surrounding temperature reaches its calibrated setpoint of 105°C, the internal bimetallic element snaps, mechanically opening the normally closed contacts to interrupt the circuit. This provides a fail-safe method of cutting power to prevent overheating damage.
Its robust metallic housing ensures efficient heat transfer from the protected component to the sensing element and offers mechanical protection. The switch is designed for direct series connection with the load, making it a simple and cost-effective solution for over-temperature protection in a wide range of AC-powered equipment.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 11 × 8 × 1 cm |
