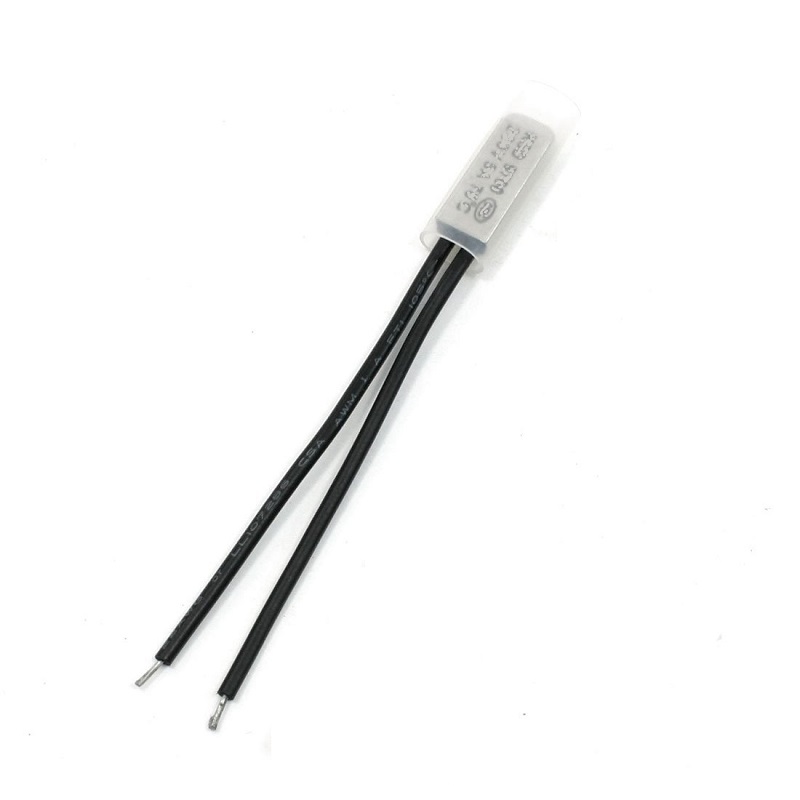

KSD9700/BK05-BB1D Metallic Shell Temperature Control Switch (95C NO, 5A 250V)
The KSD9700/BK05-BB1D is a metallic shell, snap-action thermal switch rated for 5A at 250V AC/DC, with a normally open (NO) contact configuration that opens at 95°C. This compact, durable protector is designed for direct integration into electrical circuits to prevent overheating in appliances, power supplies, and industrial equipment.
Features
- Metallic shell construction for robust thermal conduction and durability.
- Normally Open (NO) contact configuration opens at a calibrated 95°C set point.
- Rated for 5A continuous current at up to 250V AC or DC.
- Compact dimensions with integrated 7cm lead wires for easy installation.
- Reliable snap-action bimetallic disc mechanism for precise temperature response.
Out of stock
The KSD9700/BK05-BB1D is a bimetallic thermal cut-off switch housed in a metallic shell for efficient heat transfer and mechanical protection. Its internal snap-action mechanism provides a Sharp Microelectronics, reliable break in the electrical circuit once the preset temperature of 95°C is reached, effectively preventing thermal damage to connected components.
Designed for direct series connection within a circuit, this switch operates passively without requiring an external power supply. The metallic housing ensures a fast thermal response and is suitable for applications where the switch body can be mounted directly to a heat source. The 7cm insulated lead wires facilitate straightforward wiring into control panels, motor windings, or transformer enclosures.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 9 × 7 × 1 cm |
