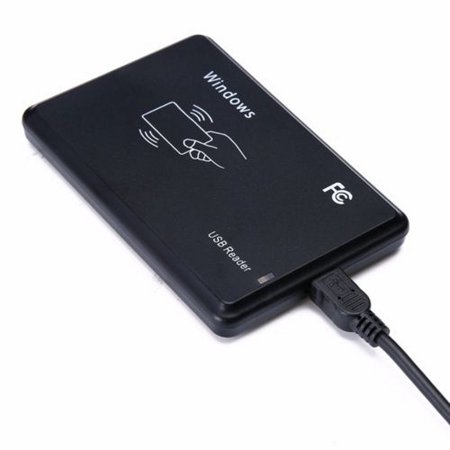

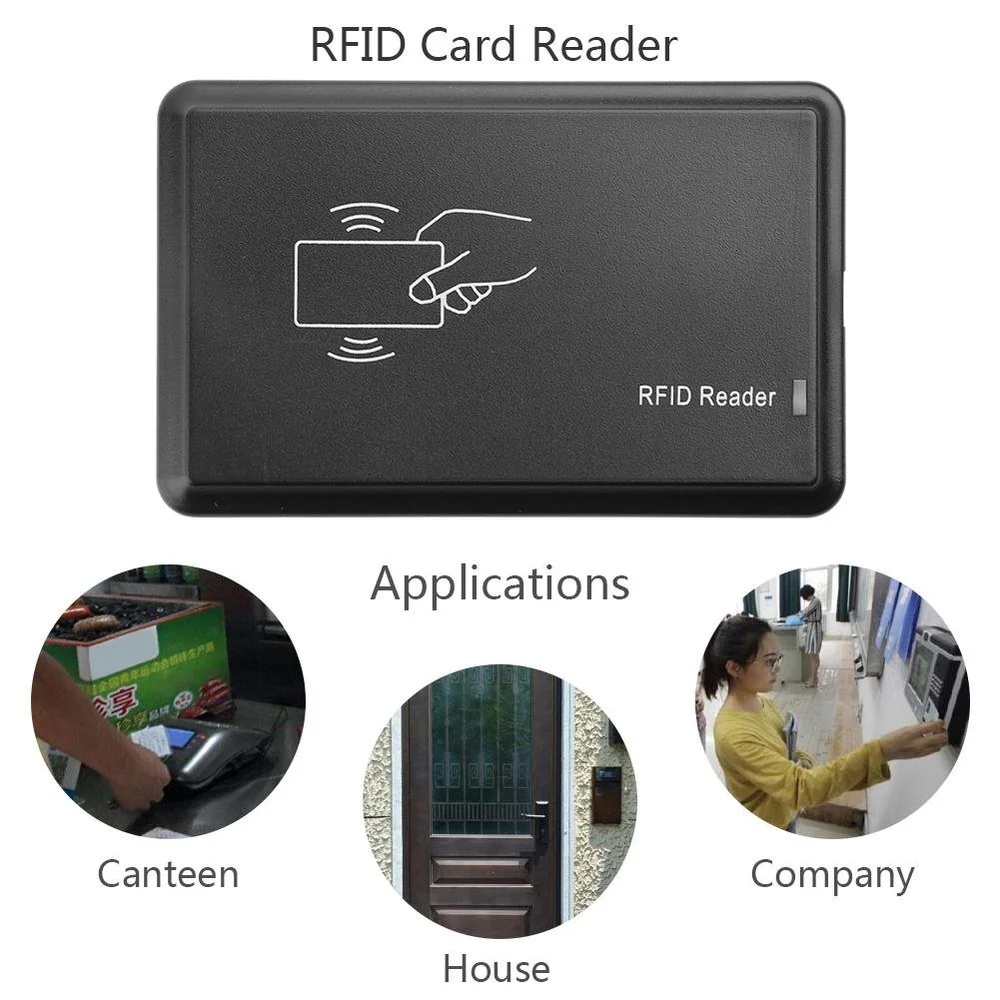

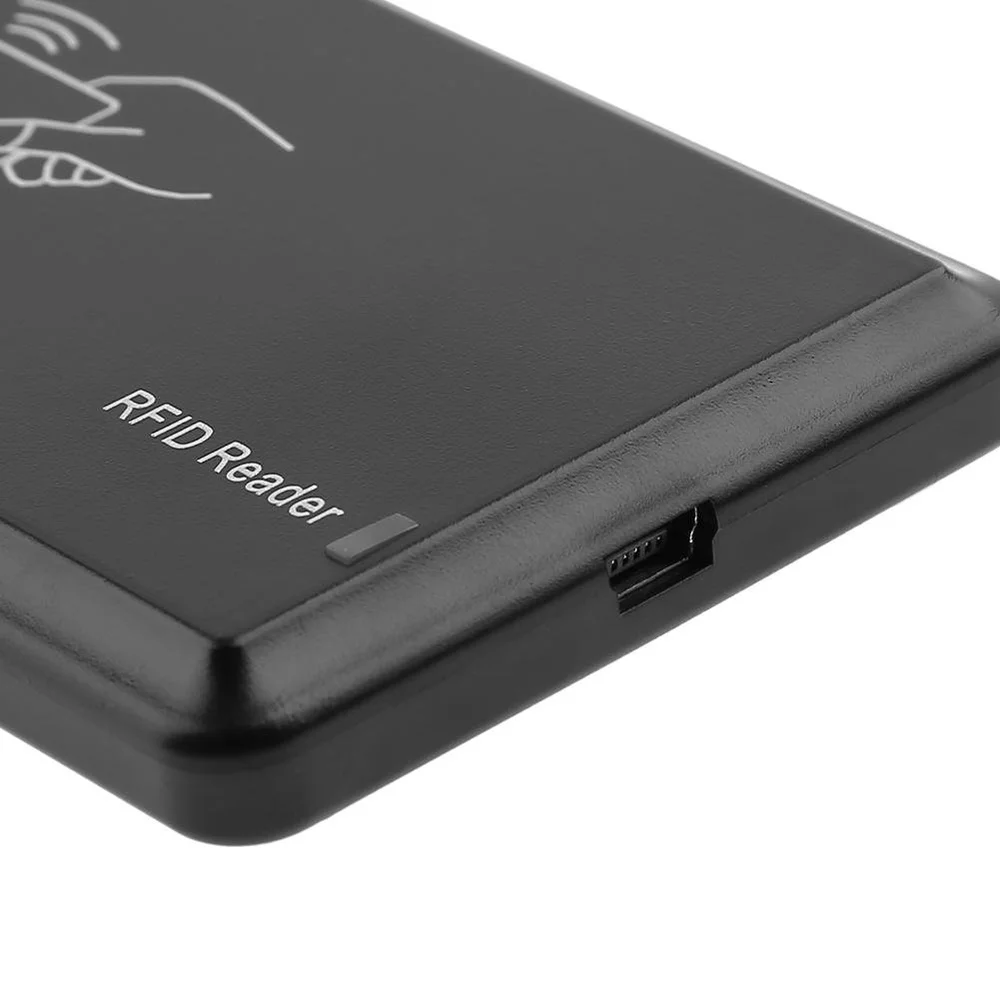

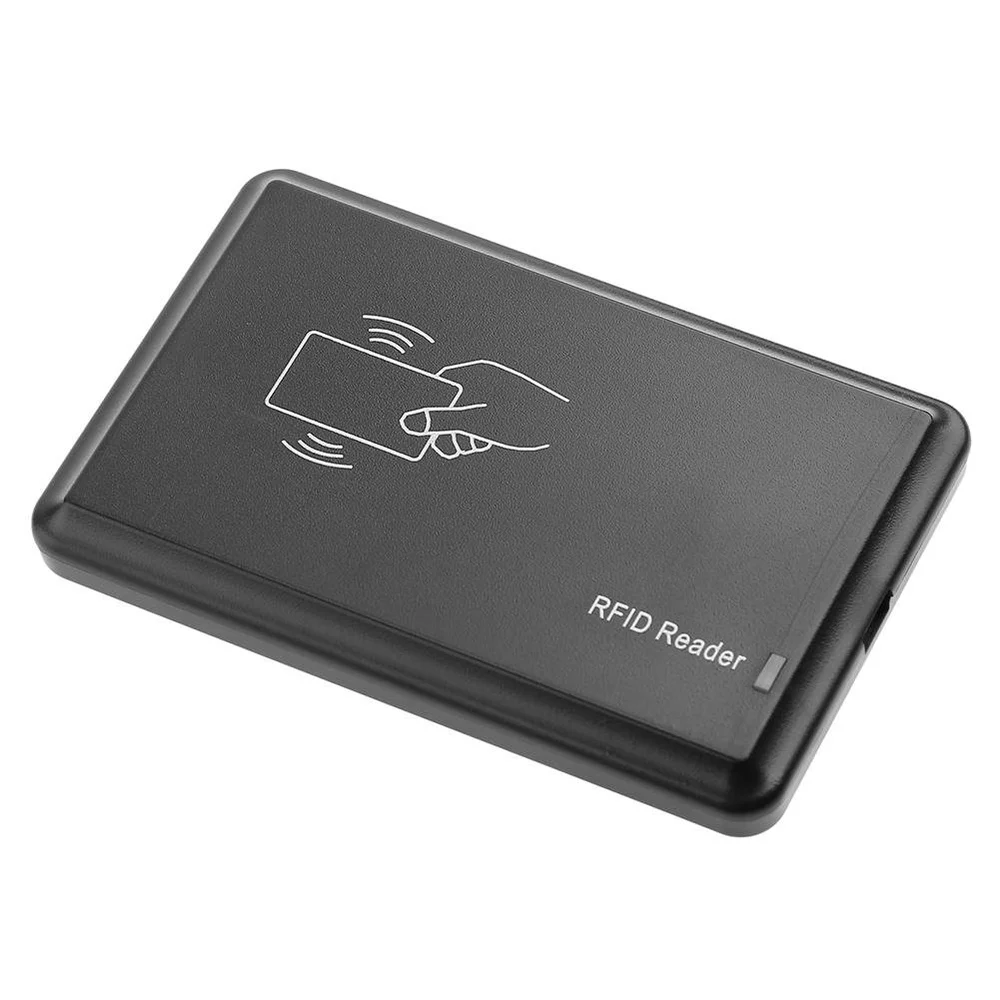

Generic R20XC 13.56MHz USB RFID Card Reader - 0-8cm Reading Distance, S50/S70 Card Support
The Generic R20XC is a 13.56MHz USB RFID card reader module offering a reading distance of up to 8cm. It provides plug-and-play compatibility with Windows, Linux, and Android systems via USB or OTG connection, making it suitable for access control, identification, and data collection projects.
Features
- 13.56MHz operating frequency for reading Mifare S50/S70 cards and tags.
- USB plug-and-play interface with a 1.4m cable; supports Android OTG connection.
- Reading distance up to 8cm with a fast read time of less than 0.5 seconds.
- Built-in buzzer and LED provide audible and visual identification feedback.
- Powered directly from the USB port (+5V DC, 70mA current consumption).
Out of stock
The R20XC RFID reader operates at the 13.56MHz frequency, utilizing inductive coupling to read the unique serial numbers from compatible Mifare S50 and S70 cards. It outputs the card data as keyboard emulation, allowing for seamless integration with any software that accepts text input, such as notepad or custom management applications.
Designed for straightforward system integration, the module requires no external drivers for basic operation on most operating systems. Its compact form factor and low power draw make it an ideal component for embedded identification systems, automated access control, and inventory management solutions.
Additional Information
| Weight | 0.125 kg |
|---|---|
| Dimensions | 9.5 × 6 × 1 cm |
