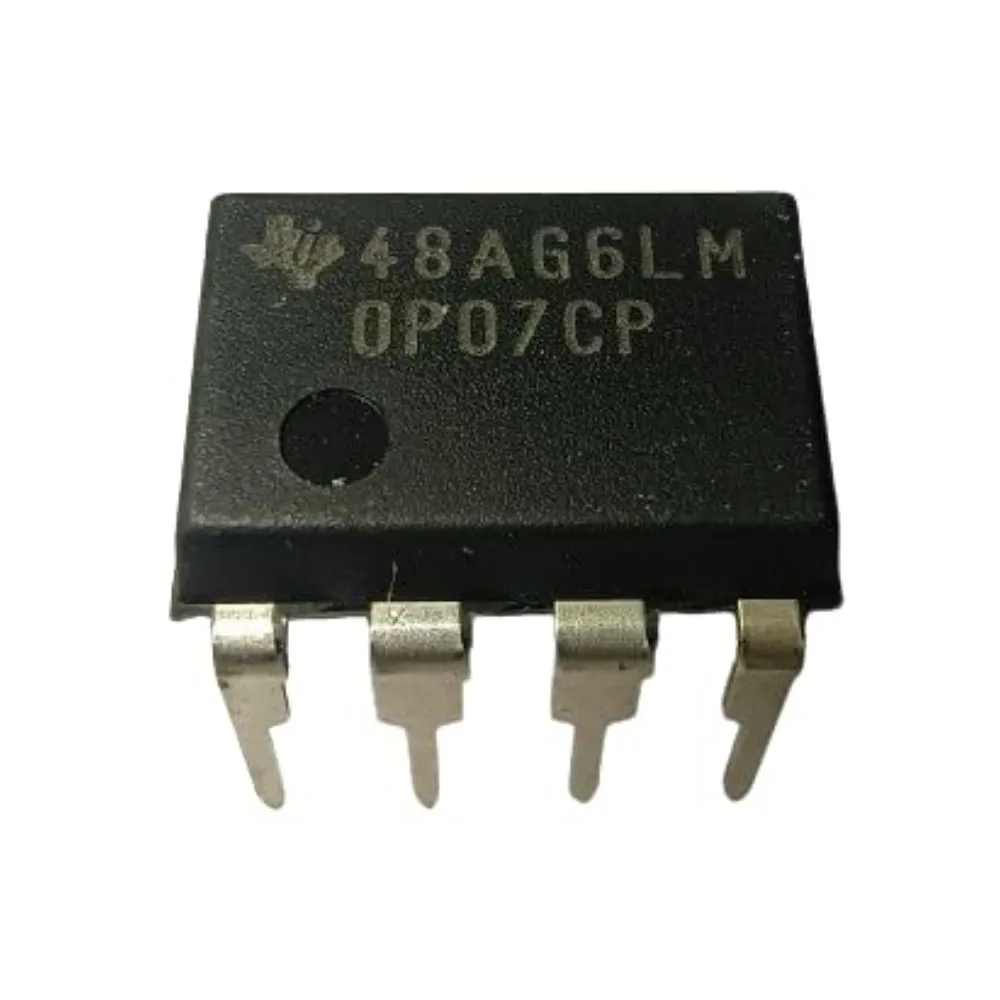

Generic OP07CP Amplifier IC – High Precision Operational Amplifier (1 Pcs)
₹45.00₹80.00 (price_including_tax) (-44%)
Achieve unparalleled signal accuracy in your designs. Integrate this industry-standard precision operational amplifier for reliable performance. Engineered for demanding industrial and hobbyist applications with robust quality.
The OP07CP is a robust operational amplifier, delivering exceptional precision for critical signal conditioning applications.
Achieve unparalleled signal integrity and minimal error in your most sensitive electronic designs.
Count on consistent, stable performance across varying conditions for long-term project success.
Effortlessly incorporate into diverse circuits with wide voltage compatibility and standard package.
The Engineering Behind OP07CP Operational Amplifiers
The OP07CP is a high-performance, low offset voltage operational amplifier renowned for its exceptional DC precision and stability. Designed for critical instrumentation and signal conditioning circuits, it provides reliable amplification with minimal drift over temperature and time. Its internal compensation ensures stable operation without external components, simplifying complex circuit designs for engineers and advanced hobbyists alike.
Manufactured to stringent industry standards, the OP07CP boasts a robust construction, ensuring long-term durability and consistent performance in demanding environments. Its specified operating temperature range confirms its suitability for both prototyping and long-term embedded systems, upholding OLelectronics’ commitment to quality active components.
High Precision & Low Offset Voltage
The primary technical advantage of the OP07CP lies in its exceptionally low input offset voltage, typically just microvolts. This crucial characteristic minimizes measurement errors and reduces the need for external trimming or calibration, enabling engineers to design highly accurate and stable amplification stages for sensitive sensor interfaces and data acquisition systems.
Broad Supply Voltage & Input Protection
Operating reliably across a wide supply voltage range from ±5V to ±18V, the OP07CP offers versatile integration into various power architectures. Its robust input stage incorporates protection against overvoltage conditions, enhancing the longevity and reliability of the amplifier in real-world applications by safeguarding against potential damage from transient spikes.
Optimized for Performance & Integration
- Input Offset Voltage: 75 μV (max)
- Offset Voltage Drift: 1.3 μV/°C (max)
- Large Signal Voltage Gain: 300 V/mV (min)
- Operating Temperature Range: 0°C to +70°C (commercial grade)
- Supply Voltage Range: ±5V to ±18V
- Package Type: 8-Pin PDIP
- Input Bias Current: 4 nA (max)
Features & Benefits
- Ultra-Low Offset Voltage: Minimizes signal measurement errors, ensuring higher accuracy in critical applications.
- High Open-Loop Gain: Provides superior amplification for weak signals with minimal distortion.
- Wide Supply Voltage Range: Compatible with diverse power supplies, enhancing design flexibility.
- Internal Frequency Compensation: Ensures stability without external components, simplifying circuit design.
- Input Overvoltage Protection: Safeguards the amplifier against transient voltage spikes, increasing longevity.
- Low Noise Performance: Ideal for sensitive instrumentation where signal integrity is paramount.
Pro-Grade Advantages
- Exceptional DC precision and stability across temperature variations.
- Very low input offset voltage reduces calibration requirements significantly.
- Internally compensated for stable operation, simplifying external circuitry.
- Robust input protection enhances durability in challenging electrical environments.
Technical Considerations
- Limited slew rate compared to high-speed op-amps, not suitable for very fast signals.
- Higher cost per unit than general-purpose op-amps for basic amplification tasks.
What is the primary application of the OP07CP amplifier IC?
The OP07CP is primarily used in precision instrumentation, data acquisition systems, and sensitive sensor interfaces due to its very low input offset voltage and high DC accuracy.
Does the OP07CP require external compensation components?
No, the OP07CP features internal frequency compensation, which ensures stable operation without the need for additional external capacitors or resistors, simplifying circuit design.
What is the typical supply voltage range for the OP07CP?
The OP07CP operational amplifier typically operates with a wide supply voltage range from ±5V to ±18V, allowing for flexible integration into various power systems.
What package type is common for the OP07CP?
The ‘CP’ in OP07CP typically denotes an 8-pin Plastic Dual In-line Package (PDIP), which is breadboard-friendly and suitable for prototyping and through-hole mounting.
What is the maximum input offset voltage for the OP07CP?
The commercial grade OP07CP typically specifies a maximum input offset voltage of 75 microvolts (μV), ensuring high precision without extensive trimming.
Is the OP07CP suitable for high-frequency applications?
While highly precise, the OP07CP has a relatively limited slew rate and bandwidth, making it less suitable for high-frequency or high-speed signal processing applications compared to specialized high-speed op-amps.
| Specification | Value |
|---|---|
| Input Offset Voltage (Max) | 75 μV |
| Input Offset Current (Max) | 2 nA |
| Input Bias Current (Max) | 4 nA |
| Open-Loop Voltage Gain (Min) | 300 V/mV |
| Supply Current (Max) | 4 mA |
| Operating Temperature Range | 0°C to +70°C |
| Slew Rate | 0.3 V/μs |
| Common-Mode Rejection Ratio (Min) | 80 dB |
| Power Supply Rejection Ratio (Min) | 90 dB |
| Package Type | 8-Pin PDIP |
| Number of Channels | 1 |
Additional information
| Brand | Generic |
|---|---|
| Technology | Operational Amplifier (Op-Amp) |
| Operating Voltage | ±5V to ±18V |
| Package | 8-Pin PDIP |
| Channels | 1 |
