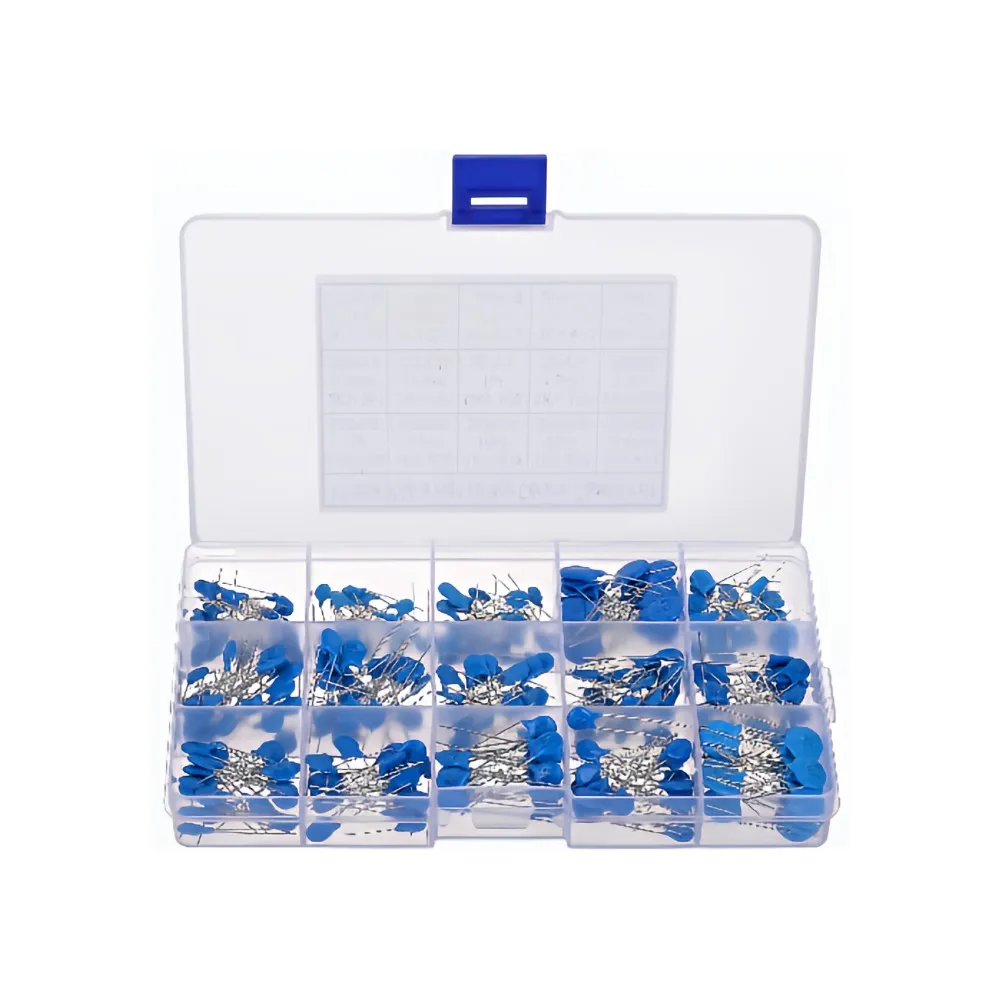

Generic High Voltage Ceramic Capacitor Kit – Assorted Values (Variety Pack)

The Engineering Behind High Voltage Ceramic Capacitor Kit

This kit provides a fundamental assortment of high-voltage ceramic capacitors, crucial components for filtering, decoupling, and energy storage in electronic circuits operating at elevated potentials. Ceramic capacitors are renowned for their stability, low equivalent series resistance (ESR), and excellent high-frequency characteristics, making them indispensable in applications ranging from power supplies to radio frequency (RF) circuits. They function by storing electrical charge and blocking direct current while allowing alternating current to pass, effectively smoothing voltage ripples or coupling signals between stages.

Comprising multi-layer ceramic capacitors (MLCCs), these components are designed to withstand significant voltage stresses due to their high dielectric breakdown strength. The robust construction and material properties ensure stable capacitance values across a wide operating temperature range, crucial for reliable long-term performance in industrial, consumer, and hobbyist electronics. Their compact nature and varied capacitance values within the kit support agile prototyping and efficient design validation.

Exceptional Voltage Handling & Stability

The primary advantage of these ceramic capacitors lies in their superior voltage handling capability. Employing dielectrics like Class 1 (e.g., NPO/COG) or Class 2 (e.g., X7R), they offer predictable performance even under several kilovolts. This makes them ideal for critical high-voltage sections where component integrity is paramount, minimizing the risk of dielectric breakdown and ensuring circuit longevity. Their low dissipation factor further contributes to efficient operation, especially in resonant circuits.

Broad Capacitance Range for Diverse Designs

A significant benefit of this kit is the provision of a wide spectrum of capacitance values, typically ranging from picofarads to nanofarads. This diversity empowers engineers and hobbyists to quickly select the optimal capacitor for specific requirements without the delay of ordering individual components. Whether for impedance matching in RF, snubber circuits, or high-frequency decoupling, the kit accelerates the development cycle by offering immediate access to a comprehensive selection.

Optimized for Performance & Integration

• Component Type: Multi-layer Ceramic Capacitors (MLCC)
• Dielectric Class: Typically NPO/COG and X7R for high stability
• Voltage Ratings Included: Common values such as 1KV, 2KV, 3KV, and higher
• Capacitance Range: From 10pF up to 100nF (kit dependent)
• Tolerance: Commonly +/-5%, +/-10%, +/-20%
• Lead Spacing: Standard radial lead configurations
• Applications: High voltage power supplies, RF circuits, resonant circuits, snubbers, filters
• Kit Content: Assorted values, typically 5-10 pieces per value

Features & Benefits

• High Voltage Rating: Ensures safe operation in demanding power supply and resonant circuits.
• Diverse Capacitance Values: Provides flexibility for rapid prototyping and varied project requirements.
• Ceramic Dielectric: Offers excellent stability, low losses, and high frequency performance.
• Compact Footprint: Enables integration into space-constrained electronic designs.
• Reliable Performance: Built for consistent electrical characteristics across operating conditions.
