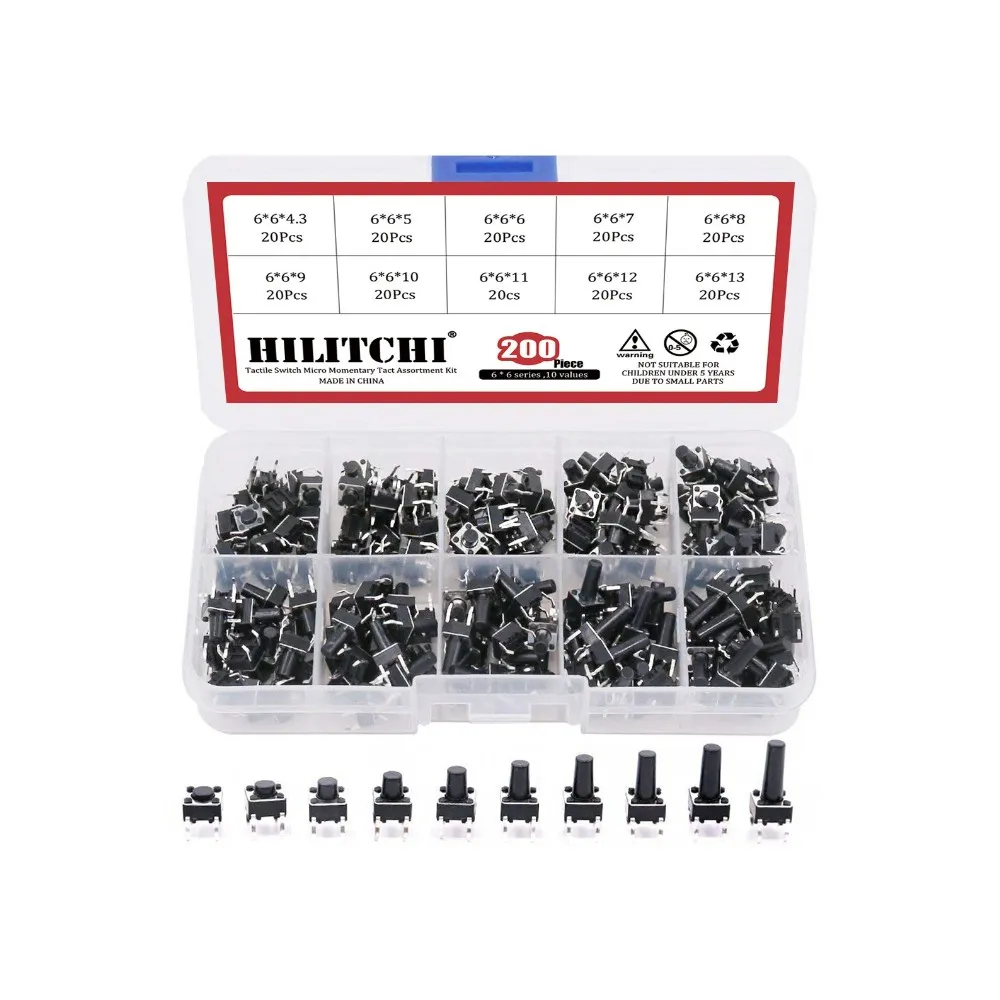

Generic Tactile DIP Switch Kit – Black Assortment (10 Types) | Versatile Control | Prototyping Essentials
₹299.00₹450.00 (price_including_tax) (-34%)
Unlock precise digital control for your electronics projects. Easily integrate these versatile tactile DIP switches into PCBs and breadboards. Count on durable construction for consistent, long-term operational integrity.
This tactile DIP switch assortment offers versatile prototyping, ensuring reliable circuit control for diverse electronic applications.
A diverse array of switches supports varied circuit designs and interface requirements with ease.
Engineers gain confident circuit control through distinct, reassuring click sensations upon activation.
Ensures secure, stable PCB mounting, preventing disconnections common in active prototyping.
The Engineering Behind Tactile DIP Switch Kits
This comprehensive kit provides a diverse array of tactile DIP switches, essential components for configuring digital logic, setting operational modes, and debugging circuits in various electronic applications. Each switch leverages a simple yet robust mechanical push-button mechanism to establish or break an electrical connection, offering clear tactile feedback upon actuation. They are frequently utilized in embedded systems, control panels, and prototyping environments to manage multiple binary input settings effectively.
Engineered for high reliability and ease of integration, these DIP switches feature standard pin spacing compatible with breadboards and through-hole PCB mounting. Their durable construction, typically involving a high-temperature thermoplastic housing and gold-plated contacts, ensures long operational life and stable electrical performance even under repeated use. The assortment provides flexibility for various project requirements, promoting quick and efficient development cycles.
Versatile Configuration Options
The primary technical feature of this kit is its versatility, offering 10 distinct types of tactile DIP switches ranging in pin count and physical form factor. This enables engineers and hobbyists to select the optimal switch for specific space constraints, operational requirements, and user interface designs, from compact 2-pin options to multi-position configurations. This breadth of choice eliminates the need for individual component sourcing, streamlining the design and prototyping process.
Reliable Through-Hole Mounting
Designed for through-hole mounting, these switches provide exceptional mechanical stability and robust electrical connections. The pins are firmly soldered to the PCB, minimizing susceptibility to vibration or mechanical stress, which often plagues surface-mount alternatives in prototyping environments. This structural choice ensures long-term operational integrity and simplifies manual assembly or rework, resolving common real-world pain points associated with component detachments and intermittent contact.
Optimized for Performance & Integration
- Component Type: Tactile DIP Switches
- Switching Mechanism: Momentary Contact
- Contact Material: Gold-plated alloy
- Mounting Type: Through-hole
- Total Types Included: 10 unique configurations
- Quantity: Assorted pack
- Color: Black
Features & Benefits
- Diverse Assortment: Provides 10 different types of tactile DIP switches for broad project compatibility.
- Tactile Feedback: Ensures clear, audible, and tactile confirmation upon actuation for reliable operation.
- Standard Pin Spacing: Facilitates easy integration into breadboards and standard prototype PCBs.
- Durable Construction: Manufactured with robust materials for extended operational lifespan and consistent performance.
- Through-Hole Design: Offers superior mechanical stability and secure electrical connections on PCBs.
- Prototyping Efficiency: A comprehensive kit reduces component sourcing time, accelerating development cycles.
Pro-Grade Advantages
- Versatile kit covers multiple configuration needs.
- Excellent tactile response for precise input.
- Robust through-hole leads ensure secure PCB mounting.
- High durability contacts for long operational life.
Technical Considerations
- Requires soldering for permanent PCB integration.
- Not suitable for high-speed signal switching applications.
What is a tactile DIP switch used for?
Tactile DIP switches are primarily used for setting hardware configurations, controlling digital logic states, and providing user input in electronic devices and prototypes.
How do I identify the different types of switches in this kit?
The switches in this kit are differentiated by their physical dimensions, number of pins, and the tactile feel upon actuation. Reference the provided datasheets for specific pinouts.
Are these switches momentary or latching?
These tactile DIP switches are momentary contact switches, meaning they only make a connection while physically pressed and return to their open state when released.
Can these switches be used with a breadboard?
Yes, their standard through-hole pin spacing makes them perfectly compatible for direct insertion into standard solderless breadboards for prototyping.
What is the typical operating voltage for these switches?
These switches are passive components and do not have an operating voltage themselves; they simply open or close a circuit connection, typically rated for low-voltage signal applications.
| Specification | Value |
|---|---|
| Switch Type | Tactile Push Button |
| Number of Types | 10 |
| Contact Configuration | SPST-NO (Single Pole, Single Throw – Normally Open) |
| Max Contact Rating | 50mA @ 12VDC (Typical) |
| Insulation Resistance | 100 MΩ min @ 500VDC |
| Dielectric Strength | 250VAC for 1 minute |
| Operating Temperature | -25°C to +85°C |
| Actuation Force | Varies by type (e.g., 100-250gf) |
| Life Expectancy | 100,000 cycles min |
| Terminal Material | Tinned Copper Alloy |
Additional information
| Technology | Mechanical Switch |
|---|---|
| Control Interface | Momentary |
| Package | Through-Hole |
| Piece Count | Assorted 10 types |
| Value | Assortment Kit |
