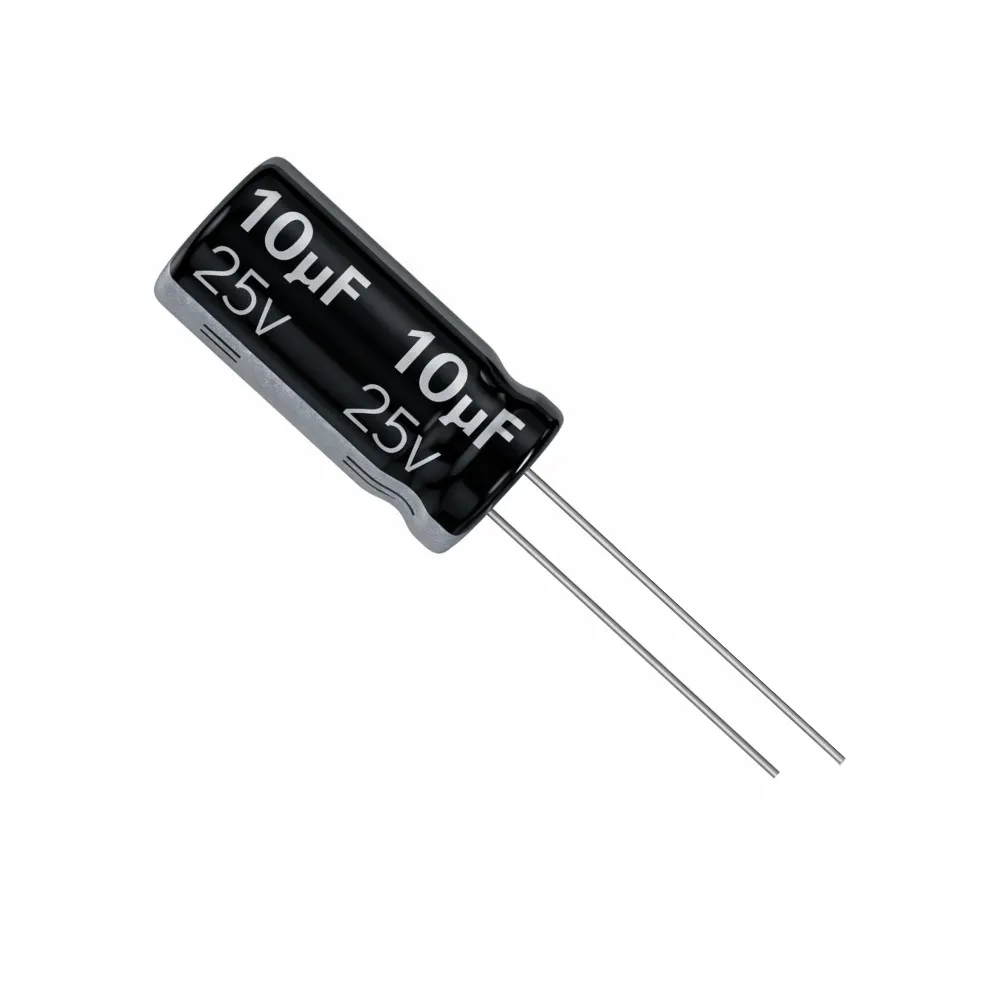

Generic Electrolytic Capacitor – 10 uF 25V (Single Unit)
₹4.00₹10.00 (price_including_tax) (-60%)
Achieve stable power delivery and signal integrity in your electronic designs. This versatile electrolytic capacitor is essential for filtering, bypass, and coupling applications. Engineered for consistent performance, ensuring the longevity and reliability of your circuits.
Reliable 10uF 25V electrolytic capacitor for stable power filtering and coupling in diverse electronic circuits.
Minimizes voltage fluctuations efficiently, crucial for sensitive electronics and consistent circuit performance.
Integrates seamlessly into tight spaces without sacrificing essential performance or reliability.
Ideal for diverse projects from power supplies to audio, ensuring broad utility and adaptability.
The Engineering Behind Electrolytic Capacitor 10uF 25V
This electrolytic capacitor, with a nominal capacitance of 10 microfarads and a rated voltage of 25 volts, is a polarized component crucial for various electronic applications. Internally, it utilizes an electrolyte-soaked paper or gel between two conductive plates, typically aluminum, forming a thin oxide layer as the dielectric. This construction allows for high capacitance values in a compact form factor, making it ideal for energy storage, filtering AC ripple from DC power supplies, and signal coupling/decoupling.
Designed for robustness, this capacitor is fabricated with high-purity aluminum and a stable electrolyte, ensuring minimal leakage current and a long operational lifespan. Its cylindrical form factor and radial lead configuration facilitate easy integration into through-hole PCB designs, offering reliable performance across a broad range of operating temperatures typical in consumer and industrial electronics.
High Capacitance Density
The electrolytic design provides a significantly higher capacitance-to-volume ratio compared to other capacitor types, enabling effective energy storage and efficient smoothing of rectified AC waveforms. This density is paramount for applications where space is at a premium, without compromising filtering capabilities.
Polarized Operation & DC Biasing
Its polarized nature dictates that the positive terminal must be connected to a higher potential than the negative terminal. This characteristic is leveraged in DC power supply filtering, where a stable DC bias ensures the dielectric integrity and prevents damage, optimizing performance in power regulation and audio coupling circuits.
Optimized for Performance & Integration
- Capacitance: 10 µF (Microfarads)
- Voltage Rating: 25 V DC
- Tolerance: Typically ±20%
- Dielectric Material: Aluminum Oxide
- Lead Type: Radial Through-Hole
- Operating Temperature: -40°C to +85°C
- ESR (Equivalent Series Resistance): Low
- Leakage Current: Low
Features & Benefits
- 10µF Capacitance: Provides effective energy storage and signal filtering for stable circuit operation.
- 25V DC Voltage Rating: Suitable for a wide range of low-to-medium voltage applications and power supplies.
- Radial Lead Design: Simplifies through-hole mounting on printed circuit boards for easy integration.
- Aluminum Electrolytic Construction: Ensures high capacitance density in a compact and cost-effective package.
- Polarized Operation: Optimized for DC filtering and bypass applications, enhancing power rail stability.
- Standard Tolerance: Offers reliable performance in general-purpose electronic designs.
Pro-Grade Advantages
- Cost-effective solution for high capacitance requirements.
- Excellent ripple current filtering in DC power supplies.
- Widely available and industry-standard for broad compatibility.
- Reliable performance across a typical operating temperature range.
Technical Considerations
- Polarized component; incorrect orientation leads to failure.
- Higher ESR compared to ceramic or film capacitors.
What is the primary function of an electrolytic capacitor?
Its primary function is to store electrical energy and release it as needed, acting as a filter to smooth out voltage fluctuations in DC power supplies and to couple/decouple AC signals between circuit stages.
Why is polarity important for electrolytic capacitors?
Electrolytic capacitors are polarized, meaning they have a designated positive and negative terminal. Connecting them with incorrect polarity can lead to internal damage, overheating, and potential explosion due to the breakdown of the dielectric layer.
What does 10 uF and 25V signify?
10 uF (microfarads) refers to the capacitance, which is its ability to store charge. 25V (volts) is the maximum DC voltage that can be safely applied across the capacitor’s terminals without risking dielectric breakdown.
Can this capacitor be used in AC circuits?
While electrolytic capacitors are primarily designed for DC circuits, they can be used in AC coupling or decoupling applications where the DC bias ensures correct polarity across the capacitor. They are generally not suitable for direct application in pure AC power circuits due as their polarized nature would be problematic.
What are common applications for a 10uF 25V capacitor?
Common applications include power supply filtering (smoothing rectified DC), bypass capacitors to shunt noise from power rails, signal coupling between audio stages, and timing circuits in conjunction with resistors.
| Specification | Value |
|---|---|
| Capacitance | 10 µF |
| Voltage Rating | 25 V DC |
| Dielectric Material | Aluminum Oxide |
| Operating Temperature Range | -40°C to +85°C |
| Lead Spacing | Typically 2.5mm / 5mm |
| ESR (Equivalent Series Resistance) | Low |
| Polarity | Polarized |
| Series (General Purpose) | Standard |
Additional information
| Brand | Generic |
|---|---|
| Technology | Electrolytic |
| Capacity | 10 µF |
| Operating Voltage | 25 V DC |
| Tolerance | ±20% |
| Package | Radial Through-Hole |
