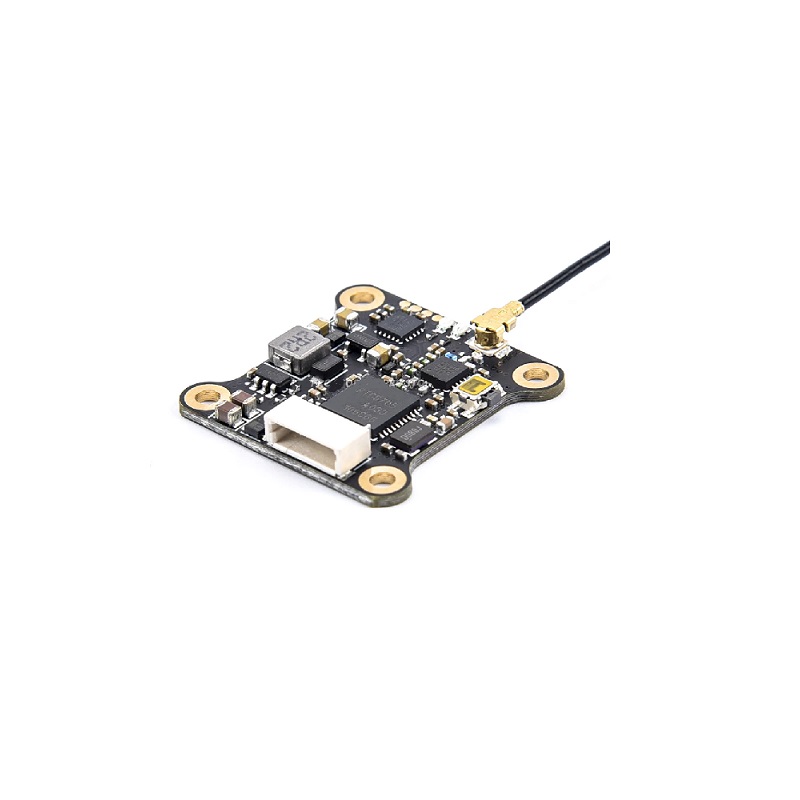

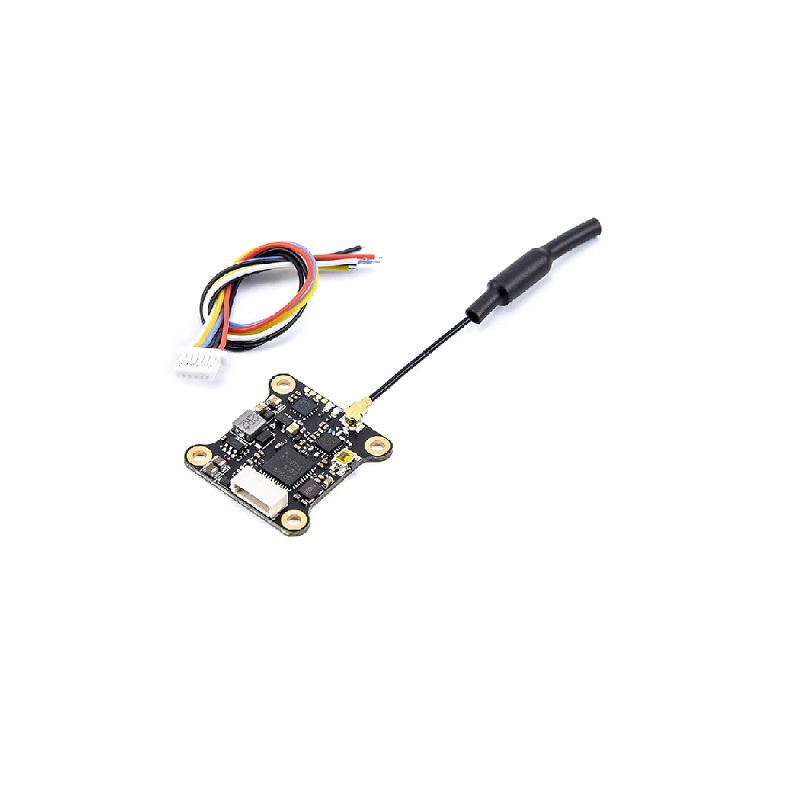

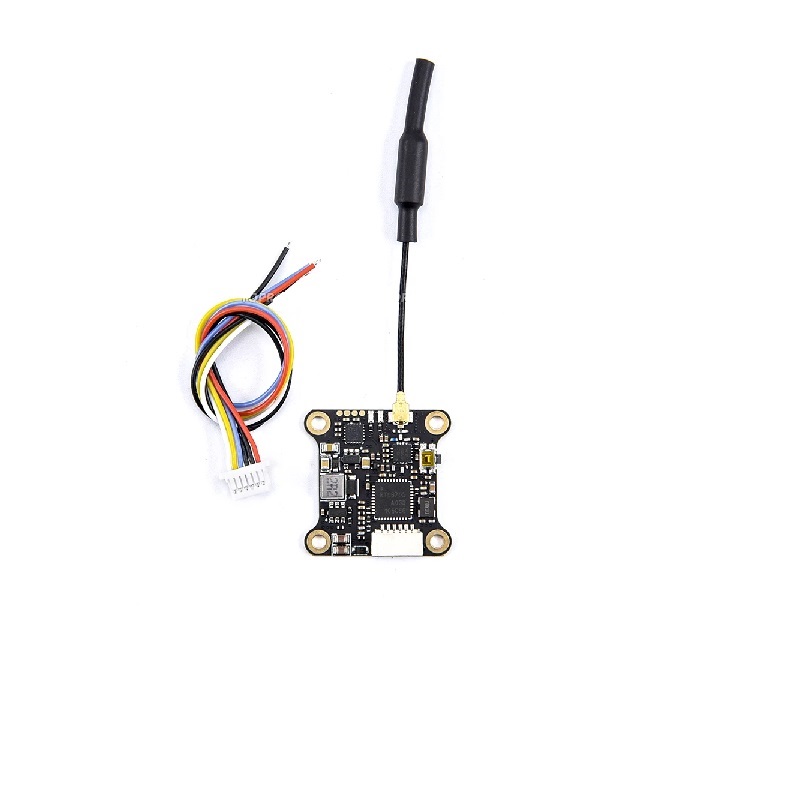

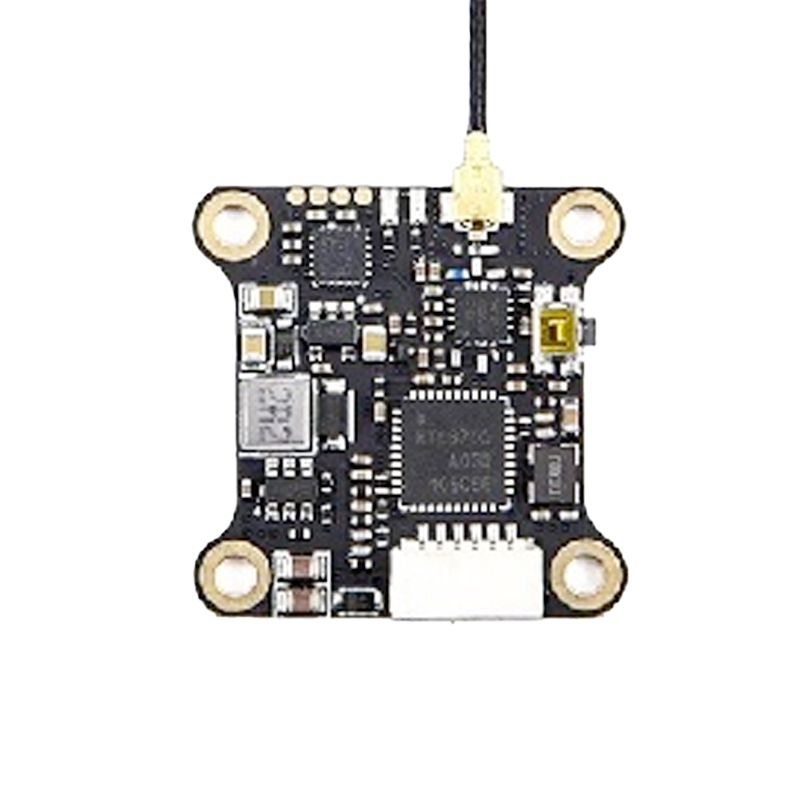

Generic MINI XF5805 5.8G Transmitter
The MINI XF5805 is a compact 5.8GHz analog video transmitter (VTX) designed for FPV drones, supporting a wide 7-26V input range for direct LiPo battery connection. It features 37 channels, four switchable output power levels up to 600mW, and is compatible with both PAL and NTSC video formats for stable, long-range FPV feed transmission.
Features
- 5.8GHz ISM Band Analog Video Transmitter with 37 selectable channels.
- Four-stage switchable RF output power: 25mW, 200mW, 600mW, and a Pit Mode.
- Wide input voltage range from 7V to 26V, compatible with 2S to 6S LiPo batteries.
- Supports both PAL and NTSC video input formats for global camera compatibility.
- Features remote-control OSD frequency switching and a self-checking function for output power.
Out of stock
The MINI XF5805 5.8G Transmitter is engineered for reliable, long-range analog FPV video transmission in a compact form factor. Its robust power filtering ensures a clean video signal with minimal interference, snow, or cross-stripes, even under maximum throttle conditions, providing a stable feed for pilots.
Designed for multi-pilot environments, the VTX features fast frequency locking to prevent interference with other pilots at boot-up and supports more than eight users flying simultaneously on different channels. The inclusion of a Pit Mode allows for low-power operation when on the ground to comply with event regulations and reduce heat generation.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 12 × 8 × 1 cm |
