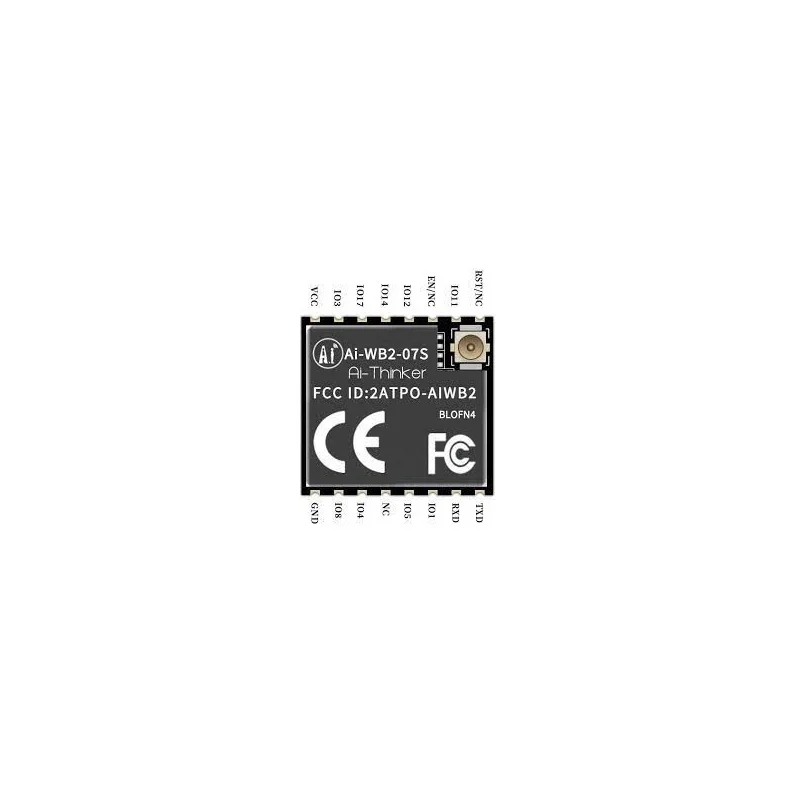

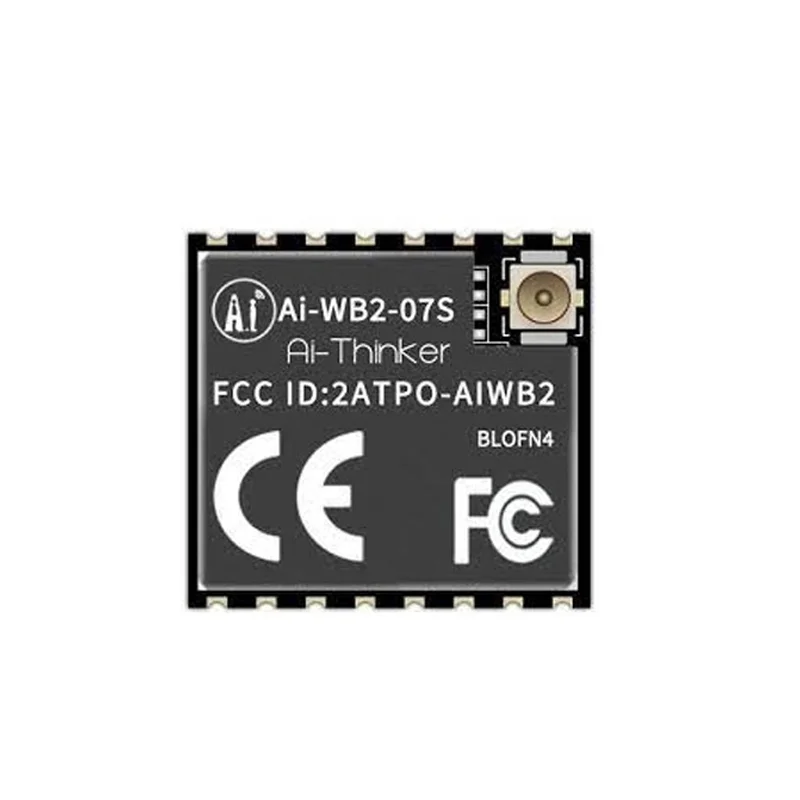

AI-Thinker Ai-WB2-07S Wi-Fi & BLE 5.0 Module w/ IPEX Connector
The AI-Thinker Ai-WB2-07S is a compact SMD module featuring the BL602 RISC-V SoC, supporting 2.4GHz Wi-Fi 802.11b/g/n and Bluetooth Low Energy 5.0 with Mesh for IoT, smart home, and wearable applications.
Features
- Powered by BL602 32-bit RISC-V CPU with 276KB RAM for embedded IoT applications.
- Dual-mode wireless supports 2.4GHz Wi-Fi (802.11b/g/n) and Bluetooth 5.0 Low Energy with Mesh networking.
- Ultra-low power design with deep sleep current as low as 12μA for battery-operated devices.
- Rich peripheral set includes GPIO, UART, I2C, SPI, ADC, DAC, PWM, and IR remote interfaces.
- Integrated IPEX antenna connector for flexible external antenna deployment and optimized RF performance.
Out of stock

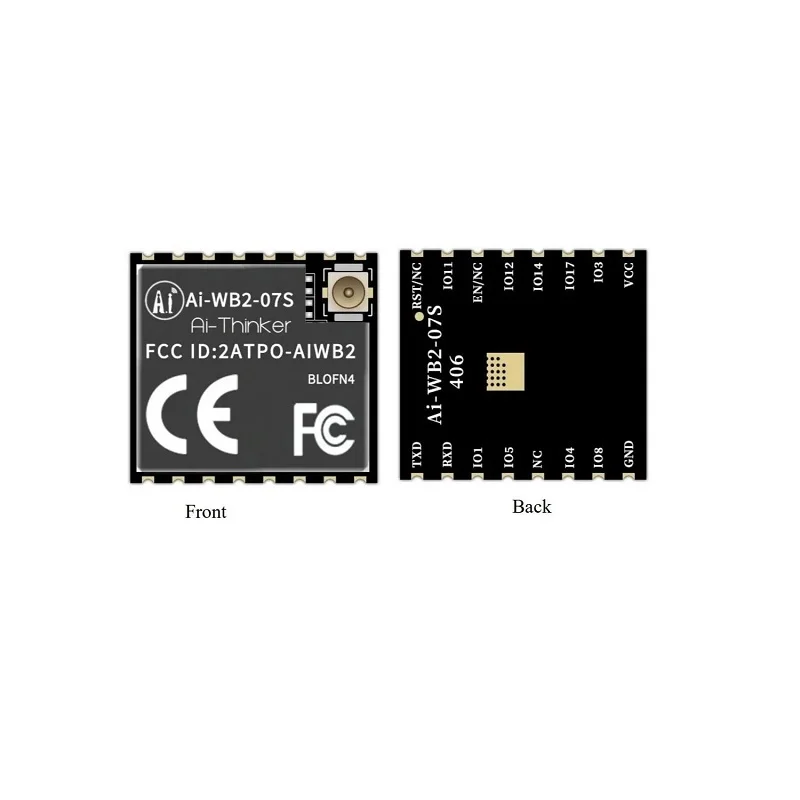

The Ai-WB2-07S module integrates AI-Thinker’s BL602 chip, a cost-effective SoC combining a 32-bit RISC-V processor, Wi-Fi MAC/BB/RF/PA/LNA, and Bluetooth LE 5.0 radio into a single 17x16mm SMD package. It provides a complete RF subsystem with on-chip power amplifier and low-noise amplifier, simplifying PCB design for space-constrained IoT products.
Engineered for low-power operation, the module supports multiple sleep modes, enabling long-term deployment in battery-powered sensor nodes and remote monitors. Its comprehensive security suite includes secure boot with ECC-256, AES hardware encryption/decryption, SHA hashing, and a true random number generator (TRNG), meeting requirements for secure device provisioning and data transmission in commercial applications.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 1.7 × 1.6 × 0.31 cm |
