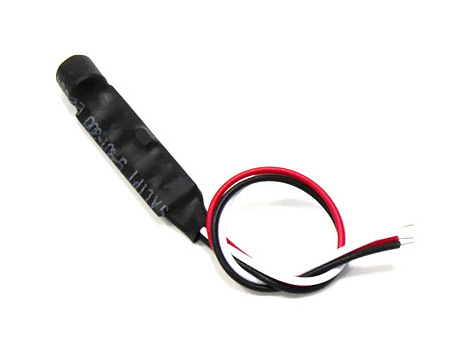

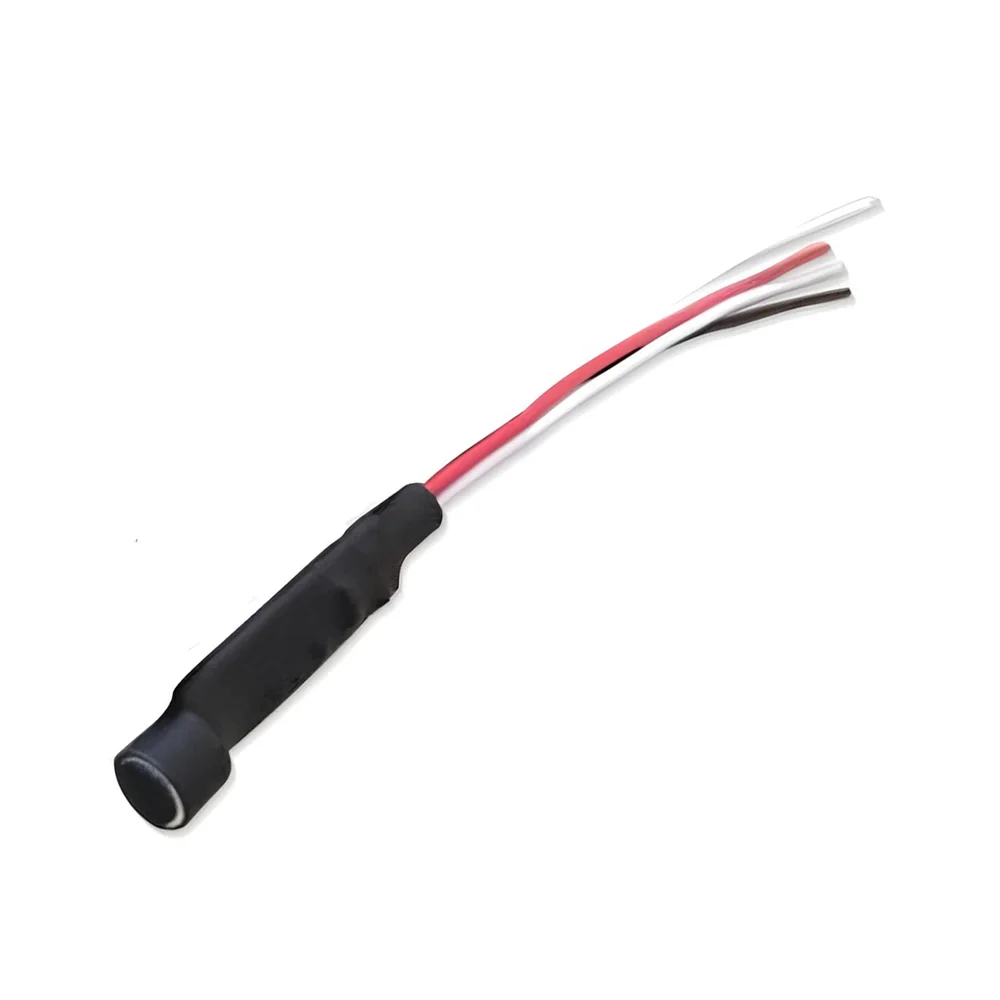

Generic Mini Microphone Audio Pickup Module - 6-12V DC, 100-5500Hz
This 6–12V DC Mini Microphone Audio Pickup Module provides a dedicated, high-fidelity audio input for FPV transmitters, DVR systems, and other applications requiring clear sound capture. It features a wide frequency response and low-noise output, offering superior audio quality compared to integrated transmitter microphones.
Features
- Wide 6–12V DC operating voltage range for flexible power supply compatibility.
- 100–5500 Hz frequency response captures a broad spectrum of audible sounds.
- Low-noise, high-fidelity 2.5Vpp/-25dB output signal for clear audio transmission.
- Ultra-lightweight and compact design for easy integration into tight spaces.
- Standard 3-wire interface (VCC, GND, Signal) for straightforward connection.
Out of stock
This compact microphone module is engineered as a dedicated audio pickup solution, delivering superior sound quality over typical built-in transmitter microphones. It operates on a wide 6–12V DC input, making it compatible with various FPV video transmitters, digital video recorders (DVRs), and other systems requiring an external audio source. The module outputs a conditioned 2.5V peak-to-peak signal with a -25dB level, optimized for direct input into standard audio transmission circuits.
The design prioritizes low electrical noise and high fidelity across its 100–5500 Hz operational bandwidth, effectively capturing the critical range of human speech and environmental sounds. Its minimal power consumption and lightweight construction make it an ideal upgrade for multirotor, drone, and remote-controlled vehicle applications where clear audio feedback enhances situational awareness and pilot immersion.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 4 × 3 × 1 cm |
