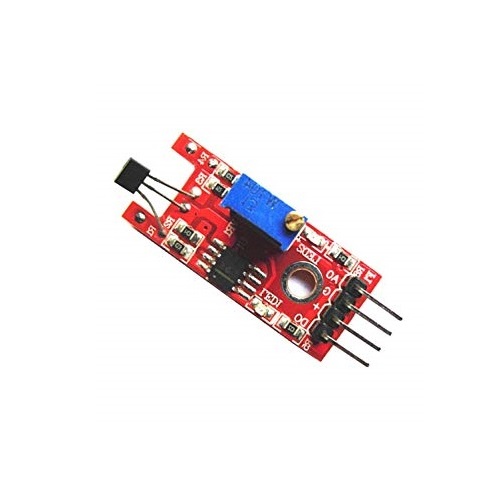

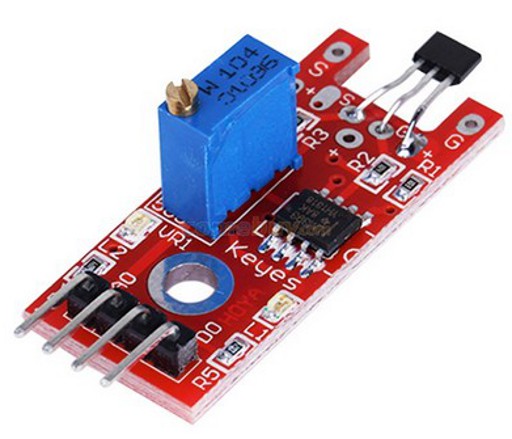

Generic Linear Magnetic Hall Sensor Module - LM393 Comparator, Digital/Analog Output
This Linear Magnetic Hall Sensor Module provides a digital and analog interface for magnetic field detection, compatible with 3.3V and 5V logic systems like Arduino, Raspberry Pi, and ESP32. It features an adjustable LM393 comparator for precise sensitivity tuning and outputs a low-level signal upon magnetic detection.
Features
- Dual Output Interface: Provides both digital (switch) and analog voltage outputs for flexible MCU integration.
- Adjustable Sensitivity: On-board potentiometer allows fine-tuning of the magnetic detection threshold.
- Wide Operating Voltage: Compatible with 3.3V to 5V DC power supplies, suitable for most development boards.
- Integrated Indicator: Built-in LED provides a visual signal output indication for easy debugging.
- Mounting Hole: Includes a retaining bolt hole for secure and convenient physical installation.
Out of stock
This module utilizes a Hall-effect integrated circuit to convert magnetic flux density into a digital voltage signal. The internal circuitry includes a voltage regulator, Hall voltage generator, differential amplifier, Schmitt trigger, and temperature compensation, ensuring stable performance across its operating range. The primary digital output switches to a low logic level when a magnetic field exceeding the set threshold is detected.
The analog output (A OUT) provides a voltage proportional to the magnetic field strength, enabling more nuanced measurements. The on-board LM393 voltage comparator is responsible for the clean digital switching action. The module is designed for easy integration into prototypes and systems requiring non-contact magnetic sensing.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 3.5 × 1.5 cm |
