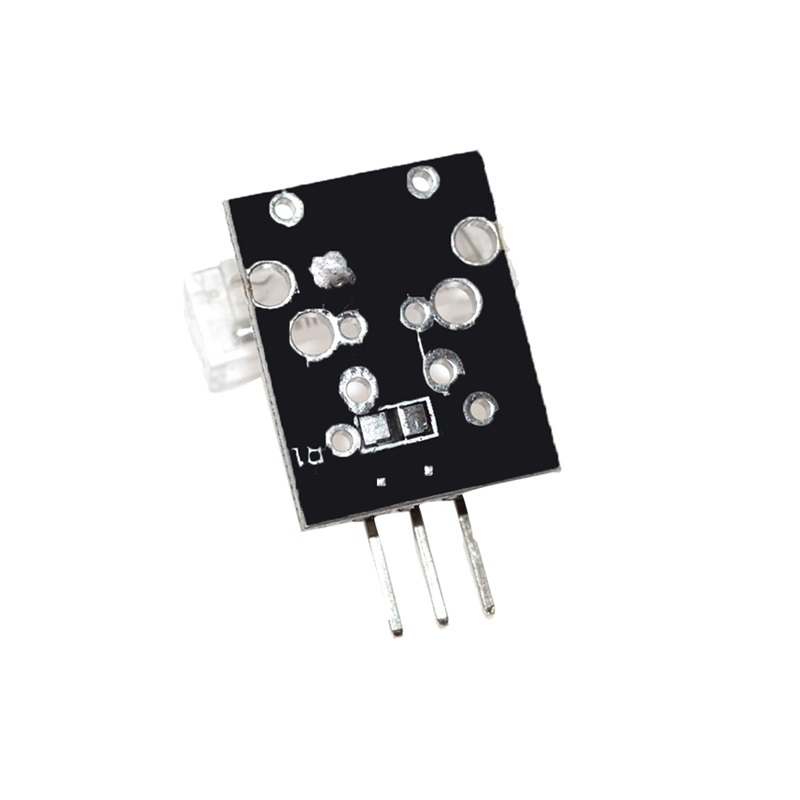

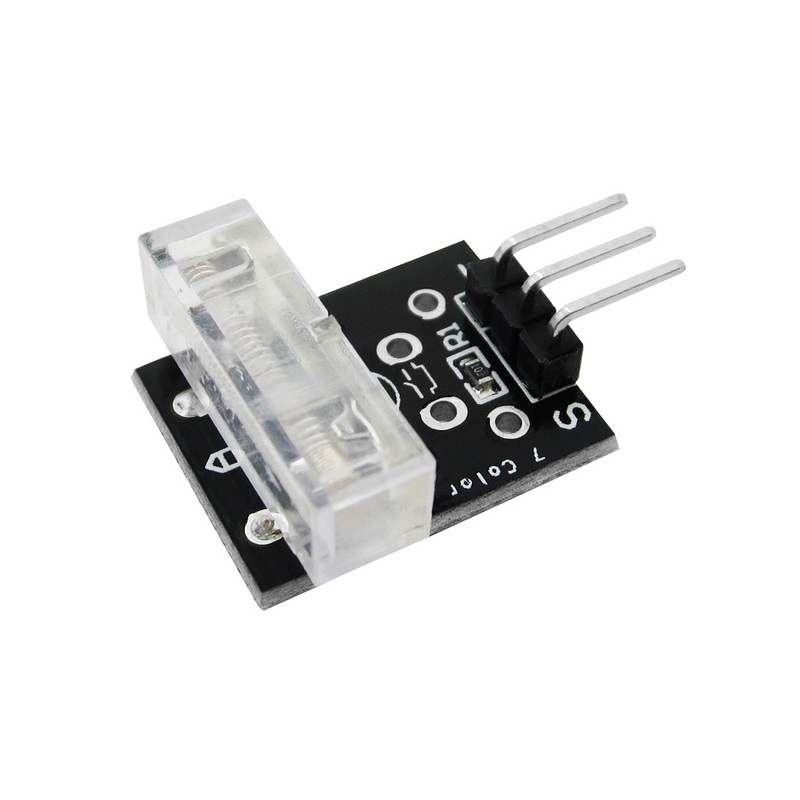

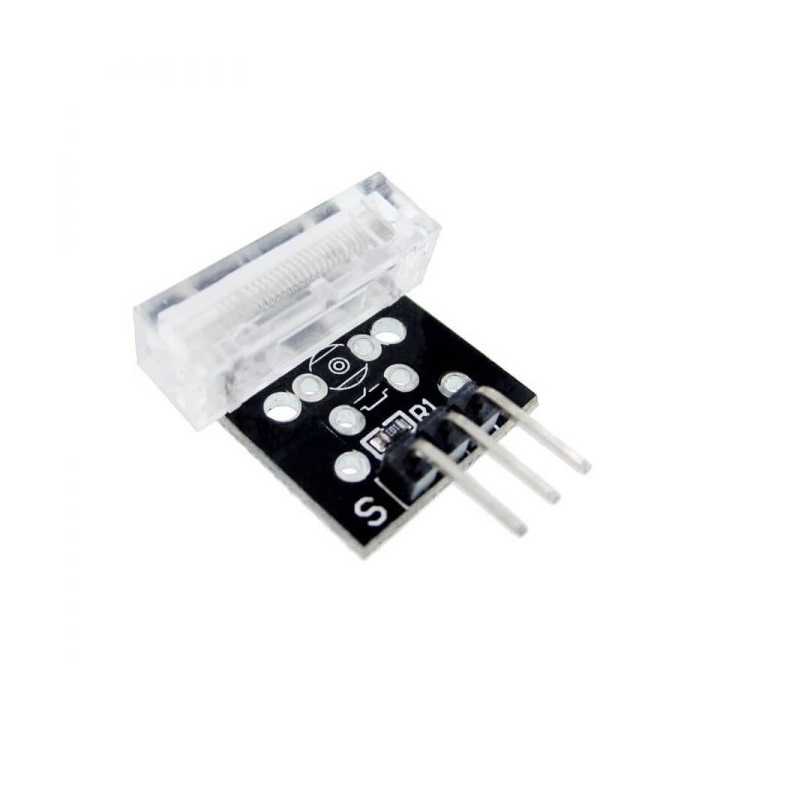

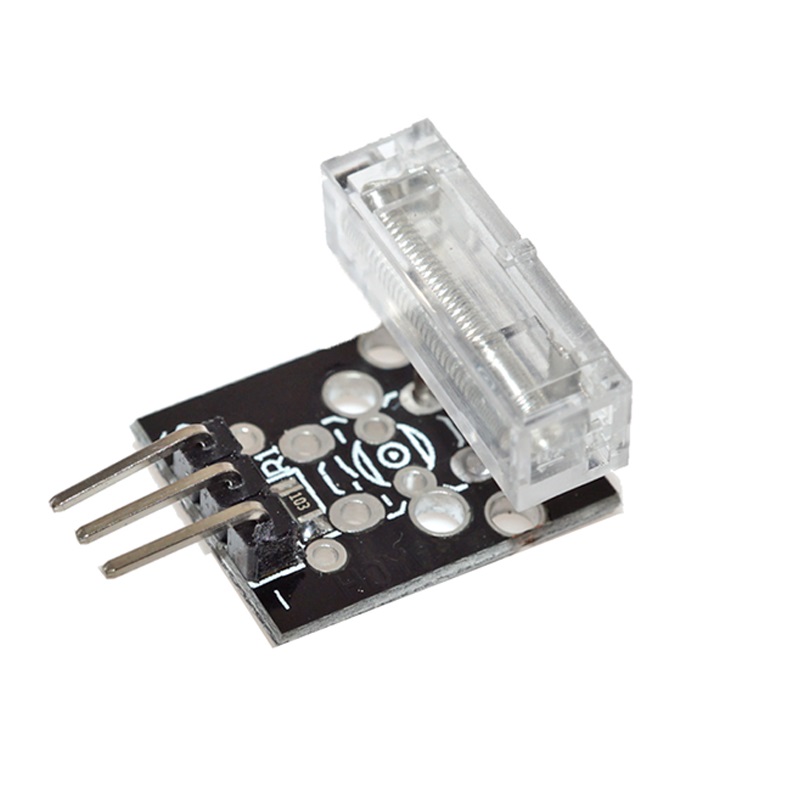

Generic Knock Shock Vibration Sensor Module - Digital Output
The Knock Shock Vibration Sensor Module is a digital switch-type sensor designed to detect impacts, knocks, and vibrations. Compatible with 3.3V and 5V logic systems like Arduino and Raspberry Pi, it provides a simple high/low signal output for easy integration into security, monitoring, and interactive projects.
Features
- Digital output signal for direct microcontroller interfacing.
- Wide operating voltage range from 3.3V to 5V DC.
- Compact PCB design with integrated mounting holes for secure installation.
- Internal spring-based mechanical sensor for reliable shock detection.
Out of stock
This module functions as a basic vibration-activated switch. An internal spring-mass system makes contact upon a physical shock or knock, causing the digital output pin to change state. The output is a clean digital signal, eliminating the need for analog-to-digital conversion and simplifying code logic for platforms like Arduino, ESP32, or Raspberry Pi.
The module’s design prioritizes straightforward integration, featuring a standard 3-pin interface (VCC, GND, Signal) and pre-drilled mounting holes for stable physical mounting, which is critical for consistent sensitivity. Its low power consumption and simple digital interface make it suitable for battery-powered or always-on monitoring applications.
Additional Information
| Weight | 0.001 kg |
|---|---|
| Dimensions | 1.95 × 1.9 cm |
