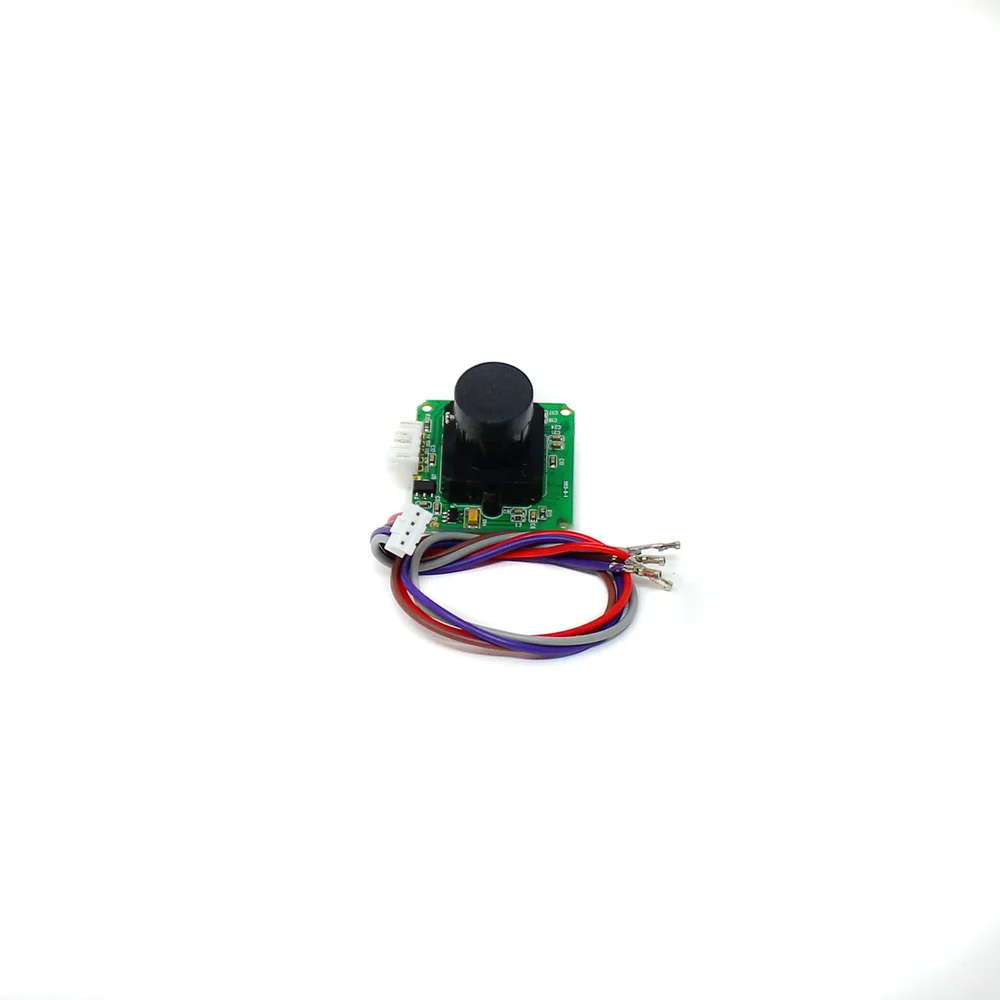

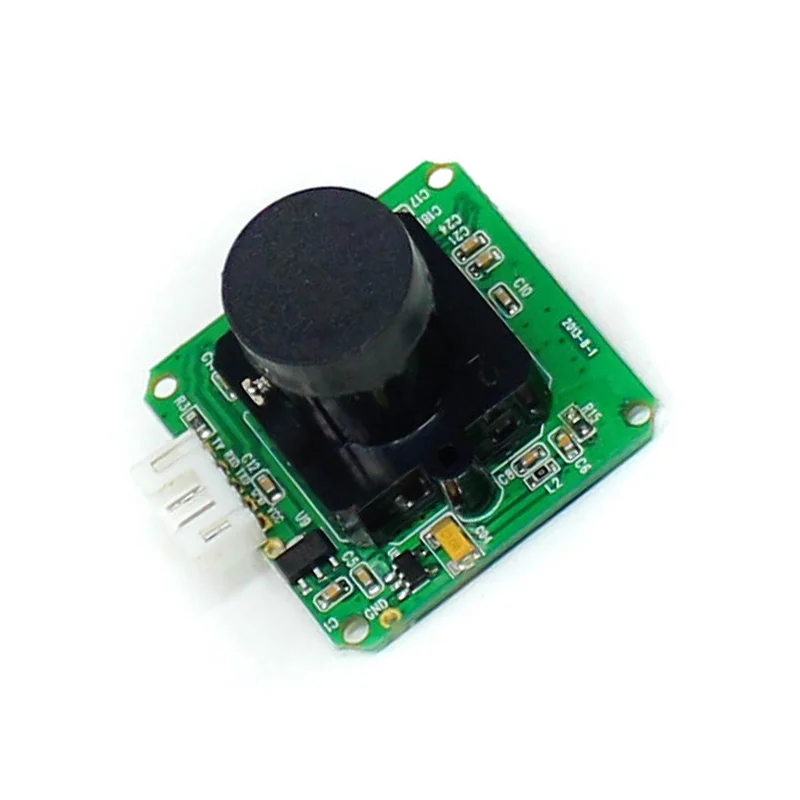

Generic CMOS Camera Module 728x488 for Raspberry Pi
This Generic CMOS camera module provides a 728×488 resolution video feed via RCA output, designed for integration with Raspberry Pi 3 Model B and other systems requiring a simple, low-light capable imaging solution.
Features
- 728×488 Resolution Sensor: Features a 1/3-inch PC1089K CMOS sensor delivering over 520 TV lines of horizontal resolution for clear video capture.
- Wide Operating Voltage: Supports a broad 6V to 20V DC input range, offering flexibility for various embedded and portable power setups.
- Low-Light Sensitivity: Capable of 0.2 Lux @ F2.0, enabling usable video capture in dimly lit environments.
- Direct RCA Output: Includes onboard circuitry to output a standard composite video signal, simplifying connection to monitors and displays.
- Compact & Mountable: Small 32x32mm footprint and lightweight 26g design allows for easy integration into projects and enclosures.
Out of stock
This CMOS camera module is a cost-effective imaging solution centered around the PC1089K sensor, delivering a 728×488 pixel color video feed. It outputs a standard composite (RCA) signal, making it directly compatible with a wide range of displays, monitors, and capture devices without requiring complex drivers.
The module’s wide 6V to 20V operating voltage simplifies power supply design, accommodating everything from battery packs to regulated bench supplies. With a sensitivity of 0.2 Lux and a signal-to-noise ratio exceeding 42 dB (AGC OFF), it provides a stable, usable image in various lighting conditions, suitable for basic surveillance, telepresence robots, or educational projects where high-definition video is not required.
Additional Information
| Weight | 0.026 kg |
|---|---|
| Dimensions | 3.2 × 3.2 cm |
