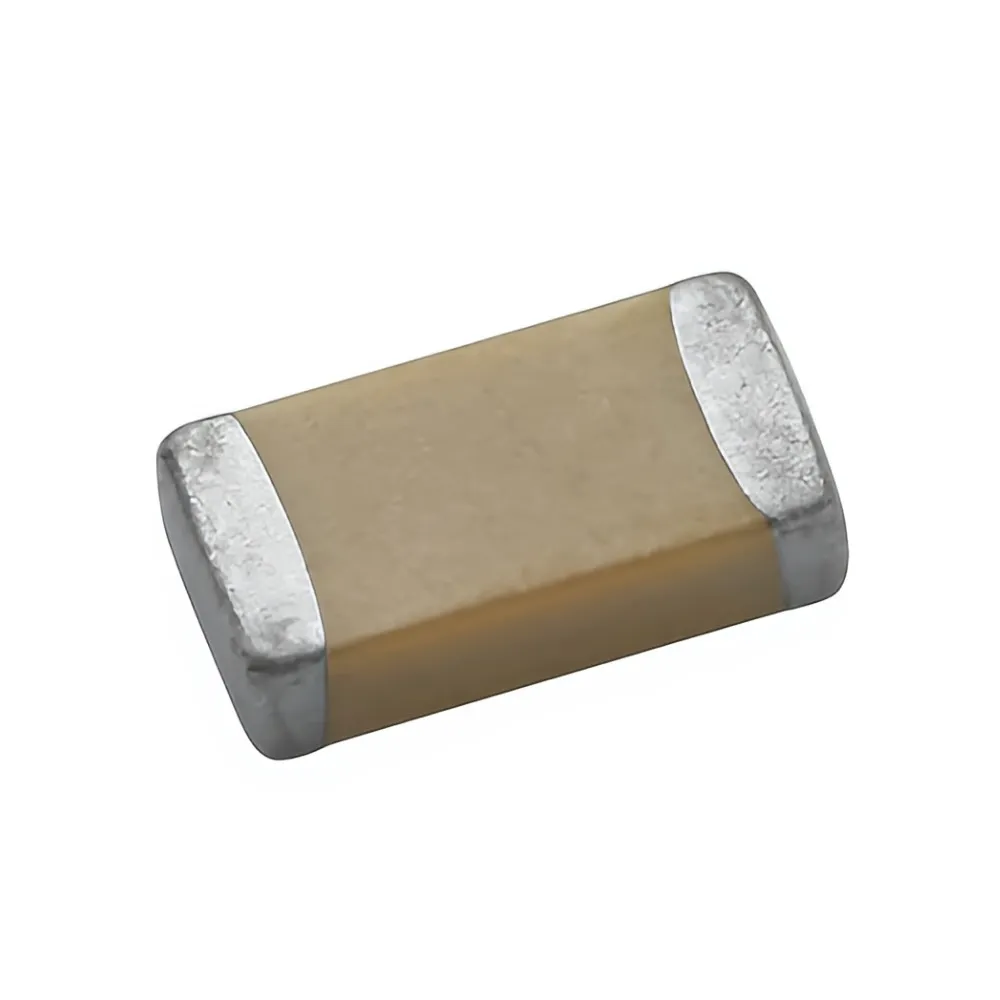

Generic Ceramic Capacitor – 220pF 1206 Surface Mount Multilayer
₹4.00₹10.00 (price_including_tax) (-60%)
Achieve stable signal filtering and energy storage in compact designs. This 220pF 1206 MLCC integrates seamlessly into surface mount PCBs for diverse electronic projects. Engineered for consistent performance, it offers dependable operation in critical applications.
Reliable 220pF 1206 multilayer ceramic capacitor for robust surface mount circuit integration, ensuring stable high-frequency performance.
Miniature 1206 package enables high-density designs for modern, space-constrained electronic applications effectively.
Multilayer ceramic design ensures consistent performance across broad frequency spectrums without degradation effectively.
Low ESR and ESL properties prevent noise interference, guaranteeing clean signal transmission consistently.
The Engineering Behind Ceramic Capacitor 220pF 1206
The Ceramic Capacitor 220pF 1206 is a vital multilayer ceramic capacitor (MLCC) engineered for precise charge storage and filtering in surface mount technology (SMT) applications. Utilizing a dielectric material like Barium Titanate, these components leverage multiple stacked layers of ceramic and metallic electrodes to achieve a high capacitance value within a miniature footprint, crucial for modern PCB designs. Its primary function is to smooth voltage fluctuations, couple/decouple signals, and provide frequency discrimination in a wide range of electronic circuits, from high-speed data lines to power supply bypass.
Constructed with robust ceramic layers and advanced metallization, the 1206 package ensures excellent mechanical strength and thermal stability, making it suitable for automated assembly processes and demanding operating environments. The multilayer design inherently reduces equivalent series inductance (ESL) and equivalent series resistance (ESR), leading to superior high-frequency performance and reliability compared to older capacitor technologies. This component is a cornerstone for designing compact and efficient electronic systems, offering exceptional durability and a long operational lifespan.
Optimal Capacitance & Frequency Response
The 220pF capacitance value is carefully selected to provide effective filtering and signal coupling for specific frequency ranges, making it ideal for precision analog circuits, timing applications, and resonant circuits where accurate frequency response is paramount. Its low ESR and ESL inherent to the multilayer ceramic construction ensure minimal power loss and excellent signal integrity, preventing unwanted noise and guaranteeing clean power delivery to sensitive ICs even at higher switching frequencies.
Standardized 1206 Surface Mount Package
The 1206 form factor (3.2mm x 1.6mm) represents a globally recognized standard for surface mount components, facilitating straightforward integration into automated pick-and-place manufacturing lines and compact PCB layouts. This standardization ensures wide compatibility with existing design tools and manufacturing workflows, reducing development time and material costs while promoting robust solder joint reliability. The miniature size allows for high-density component placement, enabling smaller and more functional electronic devices.
Optimized for Performance & Integration
- Capacitance: 220 pF
- Tolerance: ±10%
- Package Type: 1206 (3.2mm x 1.6mm)
- Dielectric Type: X7R
- Mounting Style: Surface Mount Device (SMD)
- Operating Temperature: -55°C to +125°C
- Voltage Rating: 50V DC
Features & Benefits
- 220pF Capacitance: Provides precise signal filtering and stable charge storage for sensitive analog circuits.
- 1206 Surface Mount Package: Ensures compact PCB integration and compatibility with automated assembly processes.
- Multilayer Ceramic Construction: Delivers low ESR/ESL for superior high-frequency performance and minimal signal loss.
- High Temperature Stability (X7R): Maintains capacitance reliably across a wide operating temperature range.
- Robust Dielectric Material: Offers long-term reliability and excellent durability in demanding electronic environments.
- Voltage Decoupling Capability: Effectively mitigates noise and stabilizes power lines for enhanced circuit stability.
Pro-Grade Advantages
- Excellent high-frequency decoupling and filtering capabilities.
- Standard 1206 SMT package ensures broad compatibility and easy assembly.
- Multilayer ceramic construction offers superior reliability and lifespan.
- Low equivalent series resistance (ESR) and inductance (ESL).
Technical Considerations
- Susceptible to microphonic effects in high-vibration environments.
- Capacitance can slightly vary with applied DC bias voltage.
What does 220pF signify for this ceramic capacitor?
The 220pF (picofarad) indicates the nominal capacitance value, which determines its ability to store an electrical charge and influences its filtering and timing characteristics within a circuit.
What does the ‘1206’ designation in the product name refer to?
1206 refers to the standardized package size of the surface mount device (SMD) in imperial units, specifically 0.12 inches by 0.06 inches (approximately 3.2mm x 1.6mm), indicating its physical dimensions for PCB layout.
What are the primary applications for a 220pF 1206 ceramic capacitor?
This capacitor is commonly used for high-frequency bypass and decoupling, signal coupling, resonant circuits, and filtering in various analog and digital electronic applications where small capacitance and compact size are crucial.
Why is a multilayer ceramic capacitor (MLCC) preferred over other capacitor types?
MLCCs are favored for their small size, low equivalent series resistance (ESR), low equivalent series inductance (ESL), wide frequency response, and excellent reliability, making them ideal for high-density, high-frequency circuits.
What are common dielectric types for ceramic capacitors and their characteristics?
Common dielectric types include C0G/NP0 (ultra-stable, low loss, temperature invariant), X7R (temperature stable, high capacitance, general purpose), and Z5U/Y5V (high capacitance, less stable over temperature and voltage).
Can this 220pF capacitor be used for power supply smoothing?
While it can contribute to high-frequency noise suppression on power lines, its low capacitance of 220pF is generally insufficient for bulk power supply smoothing, which typically requires much larger capacitance values, often in microfarads.
| Specification | Value |
|---|---|
| Capacitance | 220 pF |
| Package Size | 1206 (3.2mm x 1.6mm) |
| Mounting Type | Surface Mount Device (SMD) |
| Dielectric Material | X7R (Typical) |
| Tolerance | ±10% |
| Voltage Rating (DC) | 50V |
| Temperature Range | -55°C to +125°C |
| RoHS Compliant | Yes |
| Equivalent Series Resistance (ESR) | Very Low |
| Equivalent Series Inductance (ESL) | Very Low |
Additional information
| Brand | Generic |
|---|---|
| Technology | Multilayer Ceramic |
| Value | 220pF |
| Package | 1206 |
| Tolerance | ±10% |
| Operating Voltage | 50V DC |
