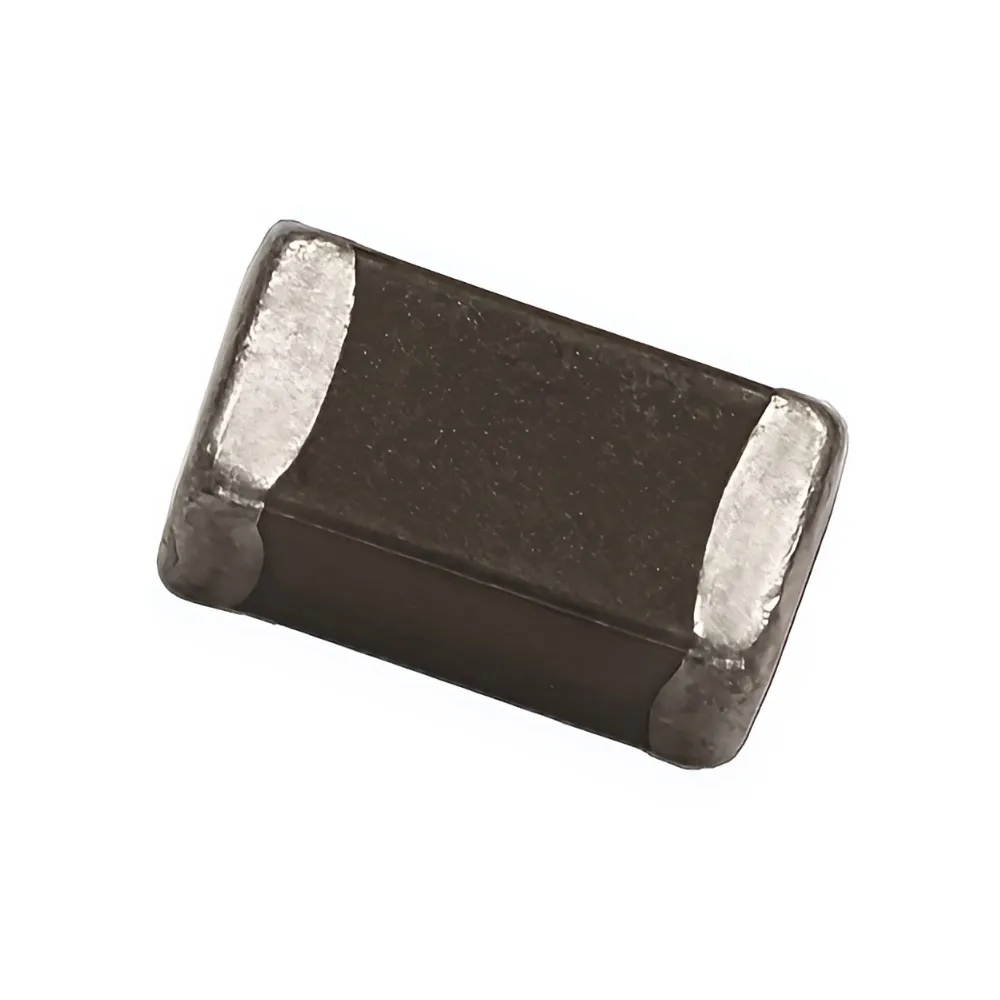

Generic 100pF 1206 Surface Mount Multilayer Ceramic Capacitor – 100pF (1206 Package)
₹4.00₹10.00 (price_including_tax) (-60%)
Achieve stable power decoupling and signal filtering. Integrate this precise 100pF MLCC into compact PCBs for robust performance. Engineered for demanding electronic applications, ensuring long-term reliability.
Reliable surface mount capacitor delivering stable 100pF capacitance for diverse high-frequency electronic circuits.
Miniature 1206 package saves valuable PCB space, ideal for high-density layouts.
Reliable 100pF capacitance ensures consistent operation across various environmental conditions.
Standardized SMD footprint allows seamless pick-and-place for efficient manufacturing.
The Engineering Behind 100pF 1206 Surface Mount Multilayer Ceramic Capacitor
This 100pF 1206 surface mount multilayer ceramic capacitor (MLCC) is a fundamental passive component designed for various electronic applications, particularly where board space is at a premium. Utilizing multiple layers of ceramic dielectric and metallic electrodes, it efficiently stores and releases electrical energy, crucial for decoupling, filtering, and resonant circuits in high-frequency environments. Its robust construction ensures reliable operation across a broad temperature range.
Fabricated using advanced ceramic materials, this capacitor provides excellent capacitance stability over time and temperature. The compact 1206 package facilitates automated assembly and integration into dense circuit board layouts, making it ideal for modern consumer electronics, industrial control systems, and telecommunications equipment. Its design prioritizes low equivalent series resistance (ESR) and equivalent series inductance (ESL) for optimal high-frequency performance.
Precise 100pF Capacitance
The core functionality of this component revolves around its precisely engineered 100 picofarad (pF) capacitance. This value is critical for filtering high-frequency noise, coupling AC signals between circuit stages, and ensuring stable power supply lines by buffering transient voltage fluctuations. The tight tolerance ensures predictable circuit behavior in sensitive applications.
1206 Surface Mount Package
The 1206 (3.2mm x 1.6mm) surface mount package offers significant advantages in modern PCB design. Its compact footprint enables higher component density, reducing overall board size and manufacturing costs. This standard package ensures compatibility with automated pick-and-place machinery, streamlining production processes and improving assembly accuracy, thereby resolving common challenges with manual component placement.
Optimized for Performance & Integration
- Capacitance: 100 pF
- Package Type: 1206 (Surface Mount Device)
- Dielectric Material: X7R (Typical for general-purpose MLCCs)
- Voltage Rating: Typically 50V DC (Standard for general-purpose 100pF MLCCs)
- Tolerance: ±5% (Common for precision applications)
- Operating Temperature: -55°C to +125°C
Features & Benefits
- 100pF Capacitance: Provides precise energy storage and signal filtering for critical circuit functions.
- 1206 Surface Mount Package: Ensures compact integration and compatibility with automated assembly processes.
- Multilayer Ceramic Construction: Offers high volumetric efficiency and excellent high-frequency performance.
- Wide Operating Temperature Range: Guarantees reliable operation in demanding environmental conditions.
- Low ESR/ESL: Minimizes power loss and enhances signal integrity in high-speed applications.
- RoHS Compliant: Meets environmental standards for hazardous substances, ensuring safe usage.
Pro-Grade Advantages
- Excellent high-frequency characteristics due to low ESR and ESL.
- Highly reliable ceramic dielectric ensures long operational lifespan.
- Compact 1206 package facilitates miniaturization of electronic devices.
- Cost-effective solution for decoupling, filtering, and timing applications.
Technical Considerations
- Susceptible to capacitance variation with DC bias voltage in some dielectric types.
- Mechanical stress can lead to cracking if not handled with care during assembly.
What is the primary application of a 100pF 1206 MLCC?
Its primary applications include high-frequency signal filtering, impedance matching, resonant circuits, and RF bypass/decoupling in various electronic designs, especially where minimal parasitic inductance is critical.
What does ‘1206’ signify in the capacitor’s name?
‘1206’ refers to the imperial package size of the surface mount device, indicating dimensions of 0.12 inches (3.2mm) in length and 0.06 inches (1.6mm) in width.
What type of dielectric material is typically used for a 100pF MLCC?
For general-purpose 100pF MLCCs, common dielectric materials are C0G (NP0) for ultra-stable performance with temperature or X7R for general-purpose stability over a wider temperature range.
Can this capacitor be used in AC circuits?
Yes, MLCCs are designed to block DC and pass AC signals. The specific AC voltage rating will depend on the breakdown voltage and dielectric characteristics, usually a fraction of its DC rating.
What is the advantage of Multilayer Ceramic Capacitors over other types?
MLCCs offer high volumetric efficiency, excellent frequency response, low ESR and ESL, wide operating temperature range, and are available in very small package sizes, making them ideal for high-density circuits.
| Specification | Value |
|---|---|
| Capacitance | 100 pF |
| Tolerance | ±5% |
| Voltage Rating (DC) | 50 V |
| Package Size (Imperial) | 1206 |
| Package Size (Metric) | 3.2mm x 1.6mm |
| Dielectric Type | X7R (Typical) |
| Temperature Range | -55°C to +125°C |
| Mounting Type | Surface Mount Device (SMD) |
| Equivalent Series Resistance (ESR) | Low |
| Equivalent Series Inductance (ESL) | Low |
Additional information
| Technology | Multilayer Ceramic |
|---|---|
| Capacity | 100 pF |
| Package | 1206 Surface Mount |
| Tolerance | ±5% |
| Operating Voltage | 50V DC |
