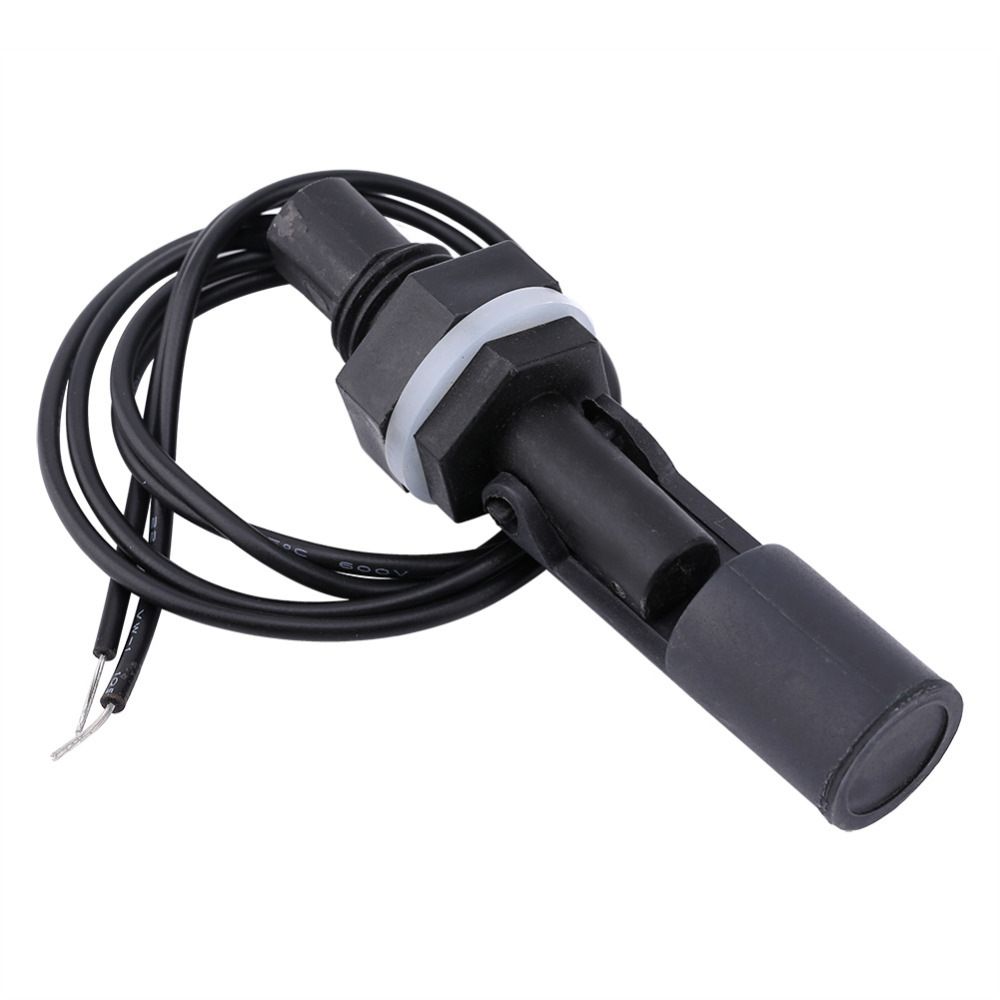

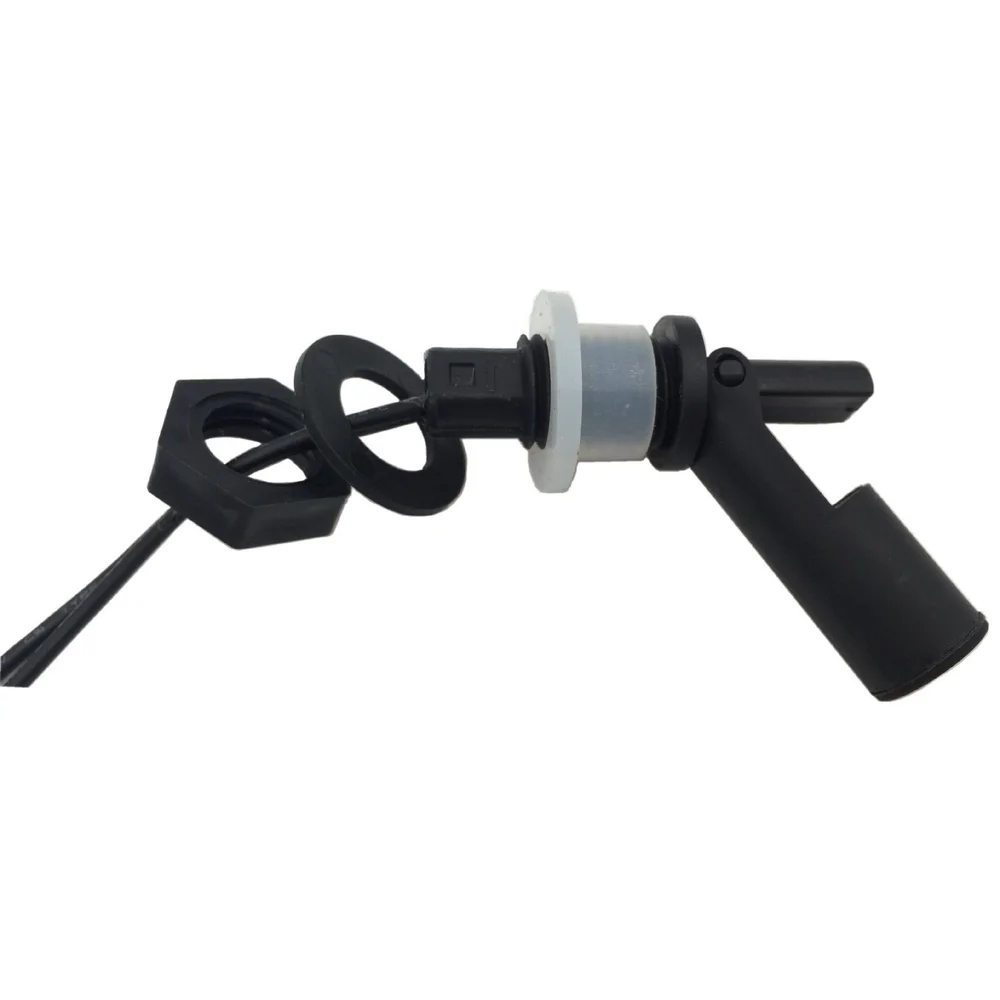

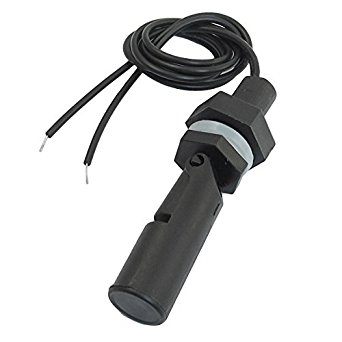

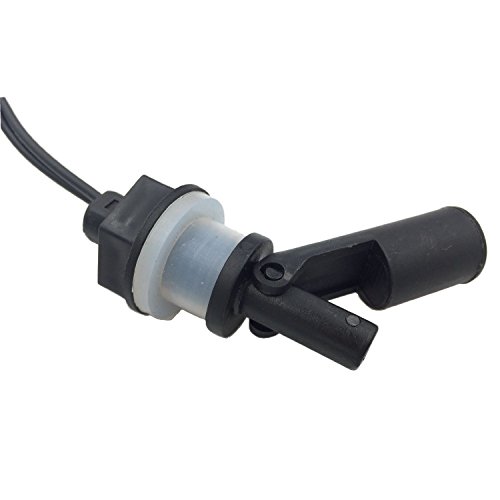

Generic Anti-Corrosion Water Level Sensor with Ball Float Switch - 110VDC, 40cm Cable
This anti-corrosion ball float switch is a mechanical water level sensor designed for on/off control in tanks and reservoirs. It features a 110VDC switching capacity and a 40cm cable for integration into industrial control panels, pump systems, and automation projects.
Features
- Mechanical float switch with 70° total float opening and 15°–20° ON/OFF switching angle
- High-voltage switching capacity up to 110VDC / 1A for direct pump or relay control
- Anti-corrosion construction suitable for freshwater, saltwater, and hydroponic applications
- Compact float ball dimensions (24mm x 17mm) for installation in confined spaces
- 40cm pre-wired cable simplifies connection to control systems
Out of stock
The sensor operates on a simple mechanical principle: as the liquid level rises or falls, the buoyant float ball tilts, actuating an internal sealed reed or micro switch. This creates a clean open/close electrical contact suitable for direct integration with pump controllers, alarm circuits, or PLC digital inputs.
Built with corrosion-resistant materials, it is engineered for long-term reliability in varied liquid environments, including aquariums, water storage tanks, and horticultural systems. Its operational temperature range of -10°C to 60°C ensures stable performance in both indoor and sheltered outdoor installations.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 8 × 3 × 2 cm |
