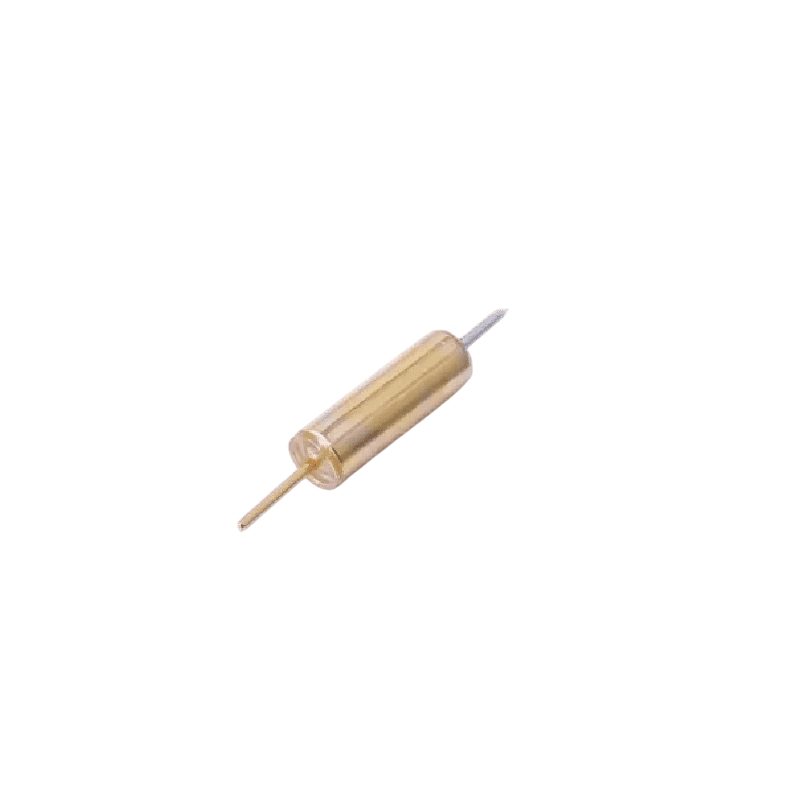

XKB Connection SW-200DW-7T5G Plugin Vibration Sensor - Tilt Switch
The XKB Connection SW-200DW-7T5G is a single-ball tilt/vibration trigger switch designed for low-voltage (under 12V) electronic systems. It provides a reliable, sealed mechanical contact output, ideal for detecting orientation changes or vibration events in compact, durable applications.
Features
- Low-voltage operation under 12V with current consumption below 20mA.
- Fast 2ms conduction time for immediate response to tilt or vibration.
- Sealed, waterproof, and dustproof design for reliable performance in harsh environments.
- Long operational life rated for up to 100,000 mechanical cycles.
- Simple on/off output triggered by a tilt angle greater than 10 degrees.
Out of stock
The SW-200DW-7T5G is a mechanical tilt and vibration sensor utilizing a single-ball, mercury-free switching mechanism. When the unit is tilted beyond its 10-degree threshold in the specified direction, the internal ball makes contact, closing the circuit (ON state). Returning to the opposite orientation opens the circuit (OFF state). This provides a clean, binary digital signal suitable for alarm systems, position detection, or vibration monitoring.
Constructed with an environmentally friendly metal housing and fully sealed against moisture and dust, the sensor is built for durability in industrial and outdoor applications. Its low power consumption and wide operating temperature range make it a versatile component for integration into battery-powered devices or systems exposed to variable environmental conditions.
Additional Information
| Weight | 0.014 kg |
|---|---|
| Dimensions | 11 × 5 × 2 cm |
