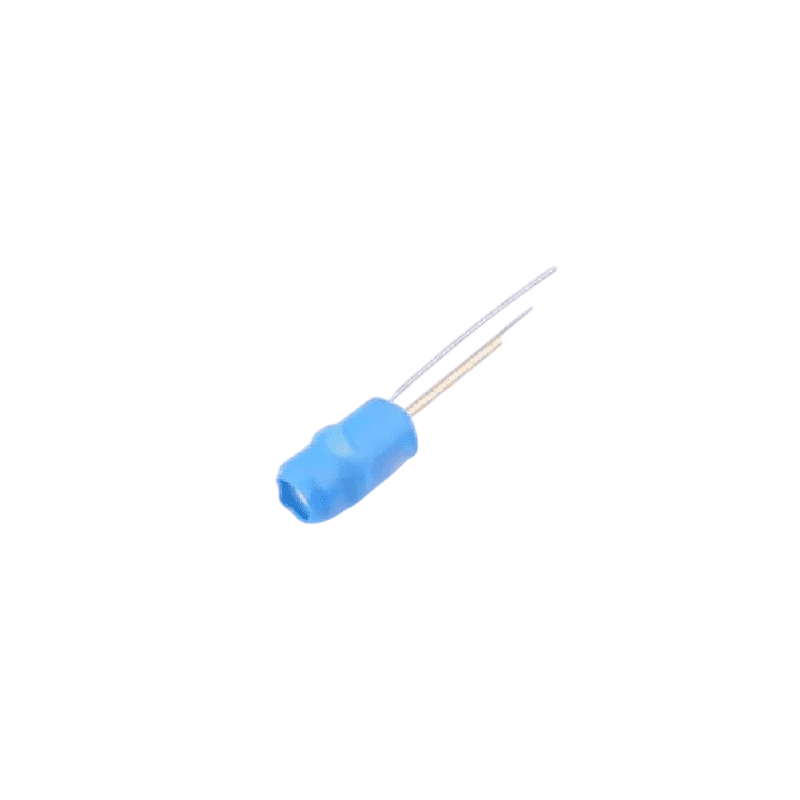

XKB Connection SW-105AC-10G Plugin Vibration Sensor - 10° Tilt Angle
The XKB Connection SW-105AC-10G is a single-direction, ball-type tilt switch sensor designed for vibration and tilt detection in electronic projects. It operates on low-voltage DC circuits (under 12V) and provides a simple on/off output signal, making it compatible with microcontrollers like Arduino, Raspberry Pi, and ESP32 for position sensing applications.
Features
- Single-direction tilt switch activates at a 10° angle threshold.
- Low operating voltage (<12V DC) and current (<20mA) for safe, low-power integration.
- Sealed, waterproof, and dustproof design ensures reliable performance in harsh environments.
- Fast 2ms conduction time and low closed-circuit resistance (~1 ohm) for responsive signal output.
- High durability with a rated mechanical lifespan of 100,000 actuation cycles.
Out of stock
The SW-105AC-10G is a mechanical ball-type tilt sensor that functions as a single-pole, single-throw (SPST) switch. Its internal mechanism uses a conductive ball that rolls to bridge contacts when the sensor is tilted beyond its 10° activation angle in the designated direction, closing the circuit. When level or tilted in the opposite direction, the circuit remains open.
Constructed with a sealed housing, this sensor is protected against water and dust ingress, enhancing its suitability for applications exposed to environmental elements. The device is built from stable, environmentally compliant metal materials, ensuring long-term reliability and a high cycle life for repeated use in monitoring and control systems.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 11 × 7 × 2 cm |
