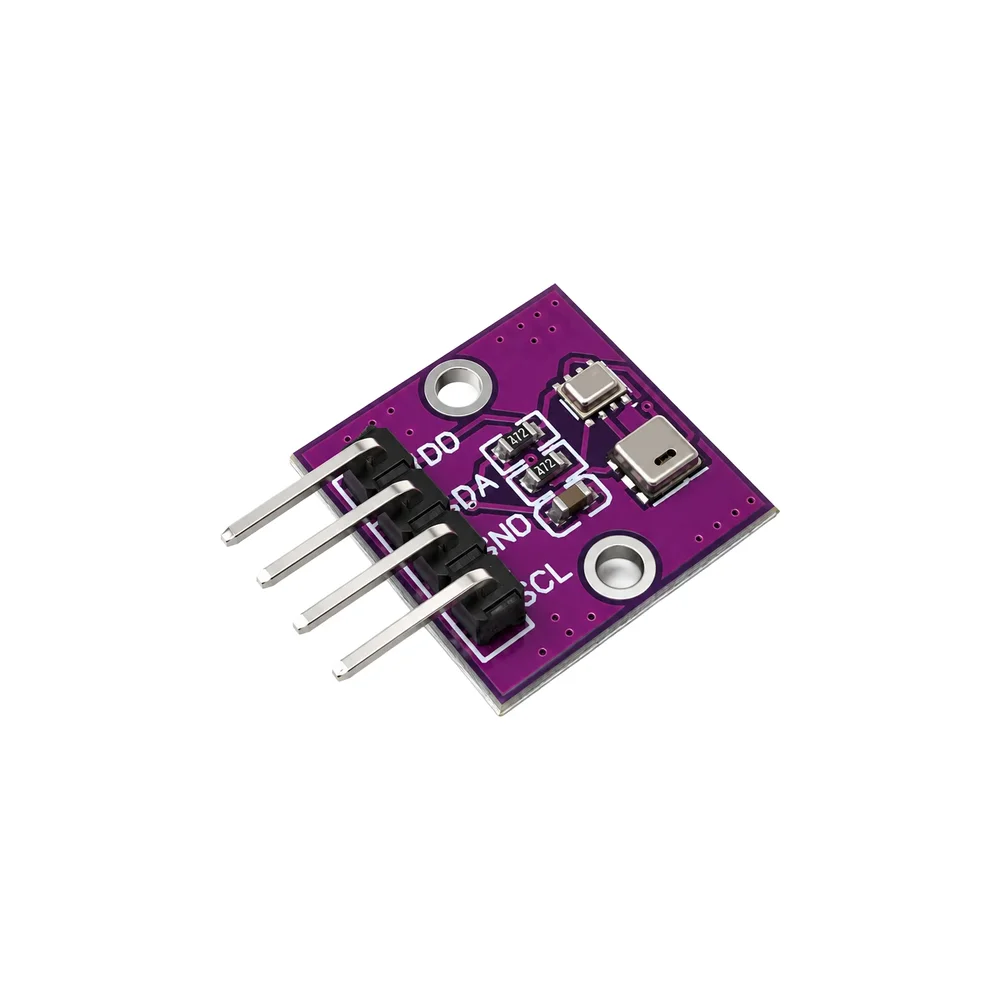

Generic AHT20+BMP280 Temperature Humidity Air Pressure Module with Soldering Pin - I2C 4P Grove Interface
This integrated environmental sensing module combines an AHT20 digital temperature and humidity sensor with a BMP280 barometric pressure sensor on a single compact board. It communicates via I2C interface and operates from a wide 2.0V to 5V DC supply, making it compatible with Arduino, Raspberry Pi, ESP32, and other 3.3V/5V logic platforms.
Features
- Integrated AHT20 & BMP280 sensors for temperature, humidity, and pressure.
- I2C digital communication interface with configurable address.
- Wide operating voltage range: 2.0V to 5V DC.

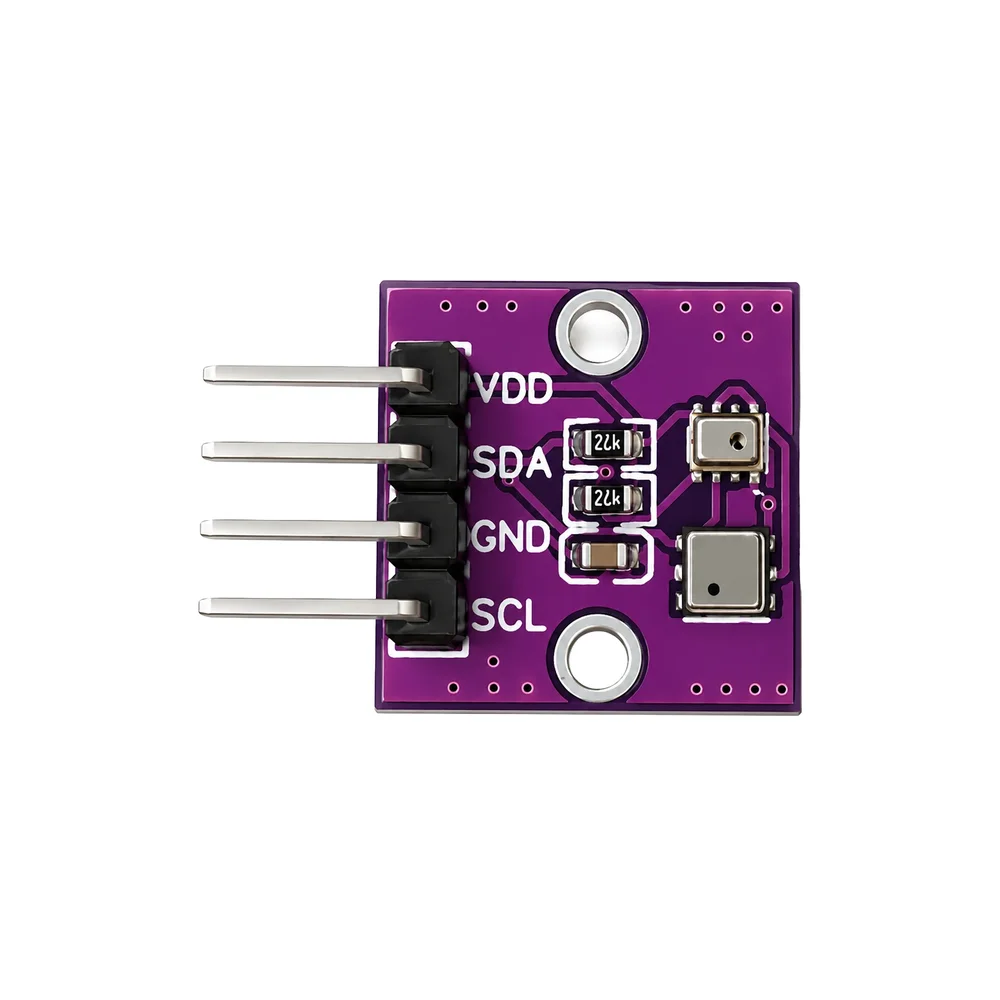

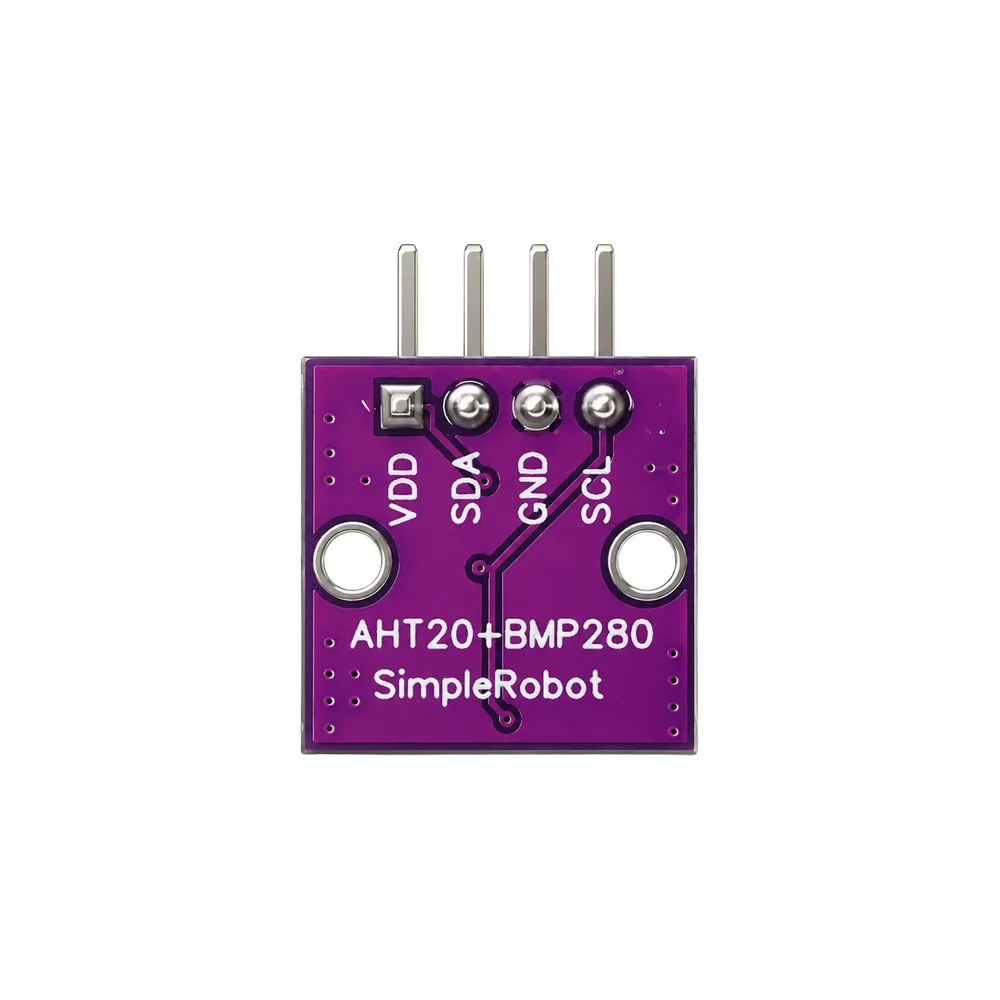

- Compact board design with 4-pin Grove connector and solderable pins.
- Low power consumption suitable for battery-powered IoT applications.
Out of stock
The module integrates two high-performance digital sensors: the AHT20 for temperature and relative humidity, and the BMP280 for barometric pressure and altitude estimation. Both sensors provide calibrated, stable digital outputs via a shared I2C bus, simplifying system wiring and firmware development. The AHT20 utilizes a MEMS capacitive humidity sensing element and a band-gap temperature sensor, while the BMP280 employs a piezoresistive pressure sensing element.
Designed for seamless integration, the board supports a wide 2.0V to 5V logic level, accommodating both 3.3V and 5V microcontroller systems without level shifting. The inclusion of both a 4-pin Grove connector and a row of solderable pins offers flexibility for rapid prototyping or permanent PCB installation. This module is engineered for applications requiring reliable, multi-parameter environmental data with minimal footprint and power draw.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 1.5 × 1.5 cm |
