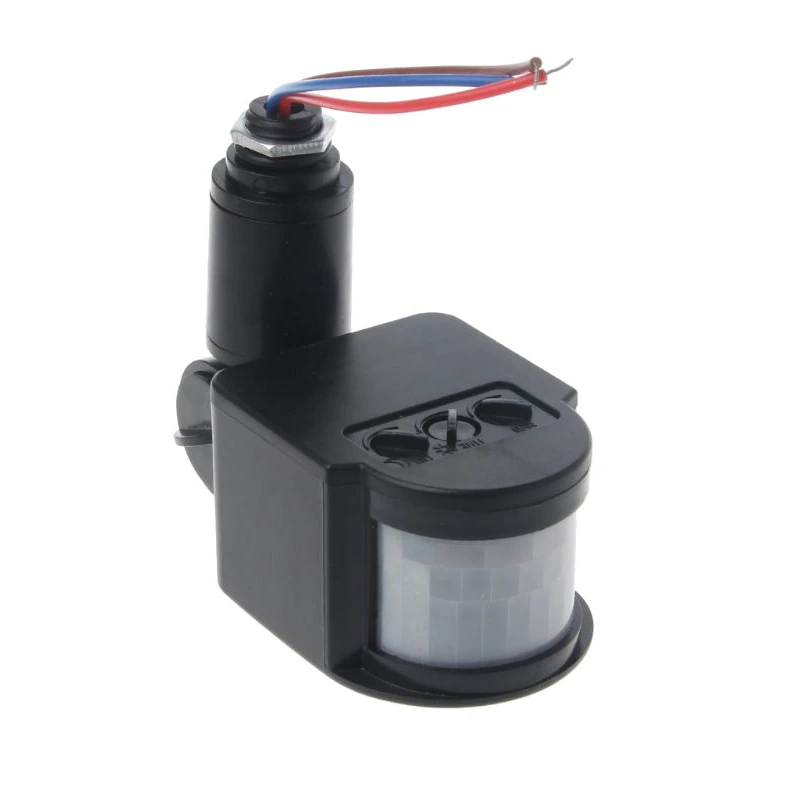

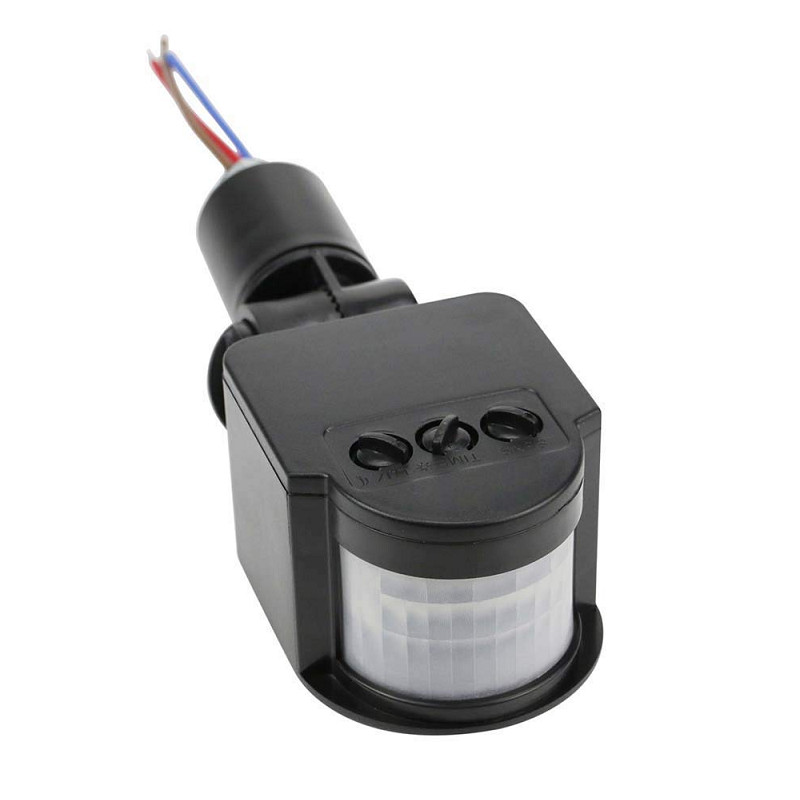

Generic AC 220V PIR Motion Sensor Module - 180° Detection, 8m Range
This AC 220V PIR motion sensor module is designed for mains-powered lighting and ventilation control, automatically switching connected loads (25-200W) upon detecting human movement within an 8-meter, 180° field of view. It features a fixed 40-second delay and is suitable for indoor security and energy-saving applications.
Features
- Mains-Powered Operation: Directly connects to AC 220V (50/60Hz) power lines, eliminating the need for a separate DC power supply.
- Wide-Angle Detection: Features a 180° detection cone with a range of up to 8 meters for broad area coverage.
- Integrated Load Control: Directly switches inductive or resistive loads up to 200W, such as lights or exhaust fans.
- Fixed Delay Timer: Maintains the load in an ON state for 40 seconds after the last motion is detected before automatically switching off.
- Robust Environmental Rating: Operates reliably in temperatures from -20°C to +40°C and up to 93% relative humidity.
Out of stock

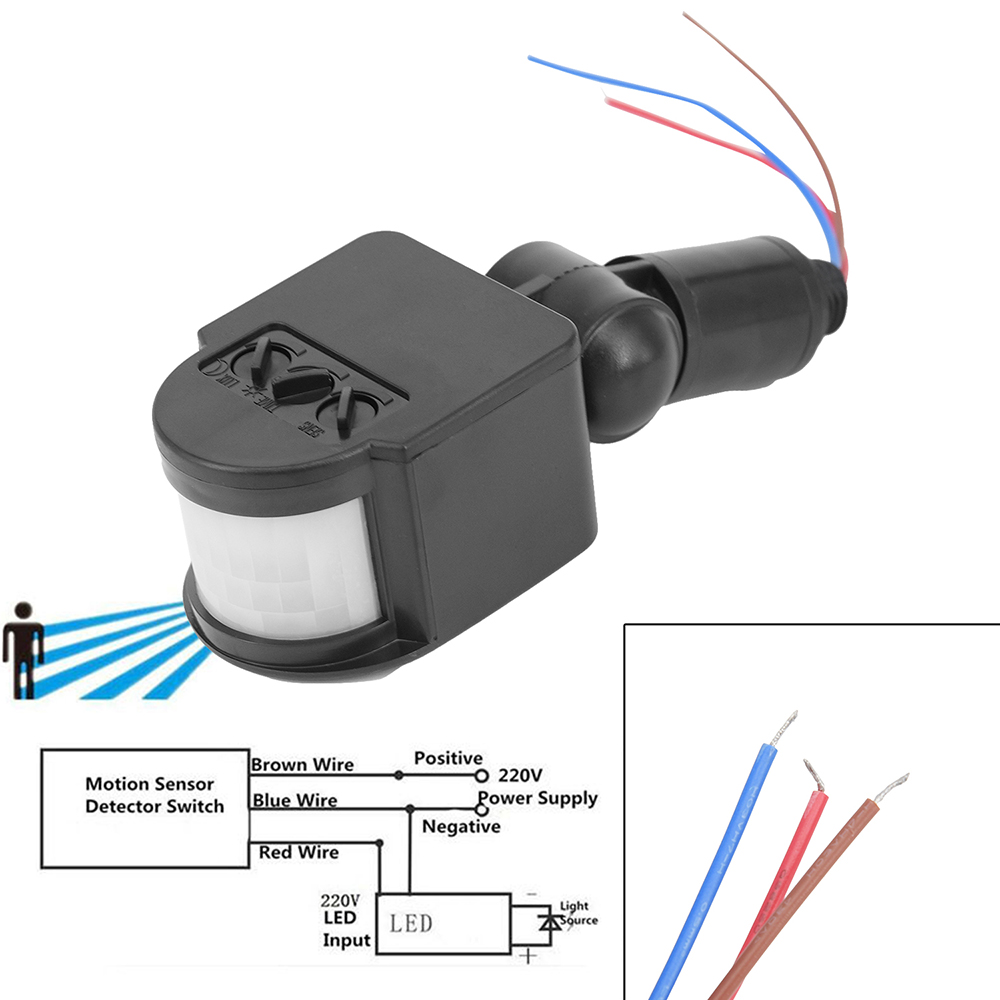

This module integrates a passive infrared (PIR) sensor with a solid-state relay and control circuitry into a single unit designed for direct installation into 220V AC lighting circuits. It detects changes in infrared radiation caused by human body movement, triggering a non-contact electronic switch that eliminates arcing and electrical noise interference with other appliances.
The sensor is optimized for energy conservation, with logic that typically disables operation during daylight hours to prevent unnecessary activation. Its design prioritizes long-term reliability and safety, featuring a low standby power consumption that contributes to extended operational life for both the module and the connected load.
Additional Information
| Weight | 0.051 kg |
|---|---|
| Dimensions | 16 × 6 × 4.5 cm |
