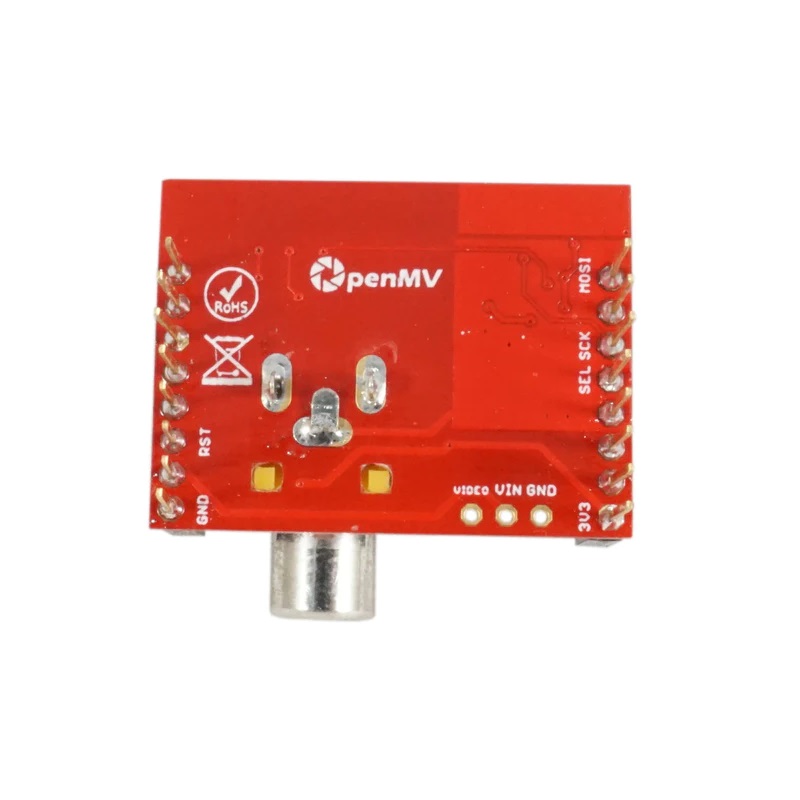

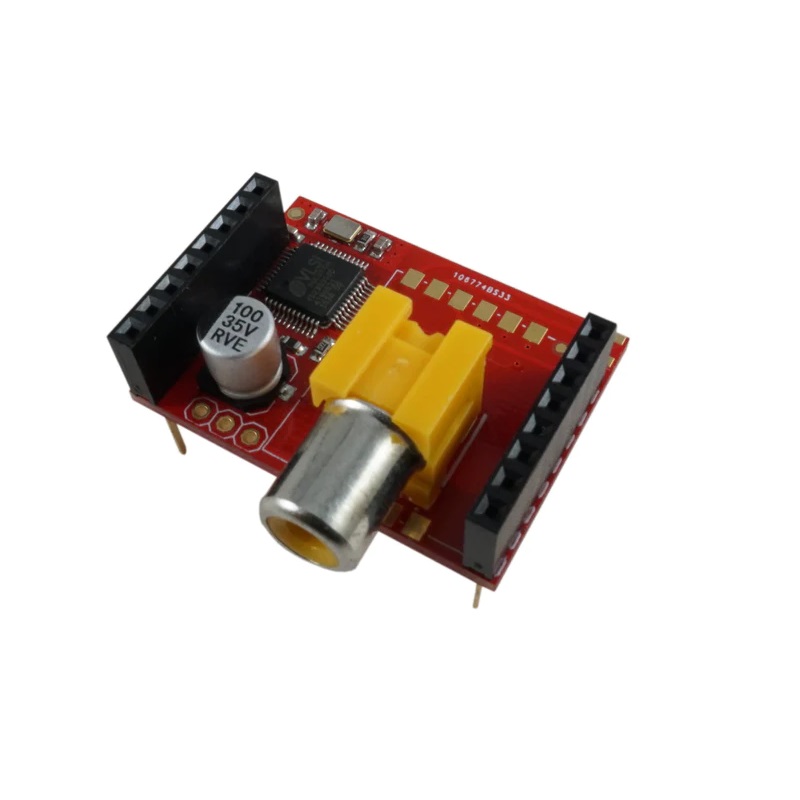

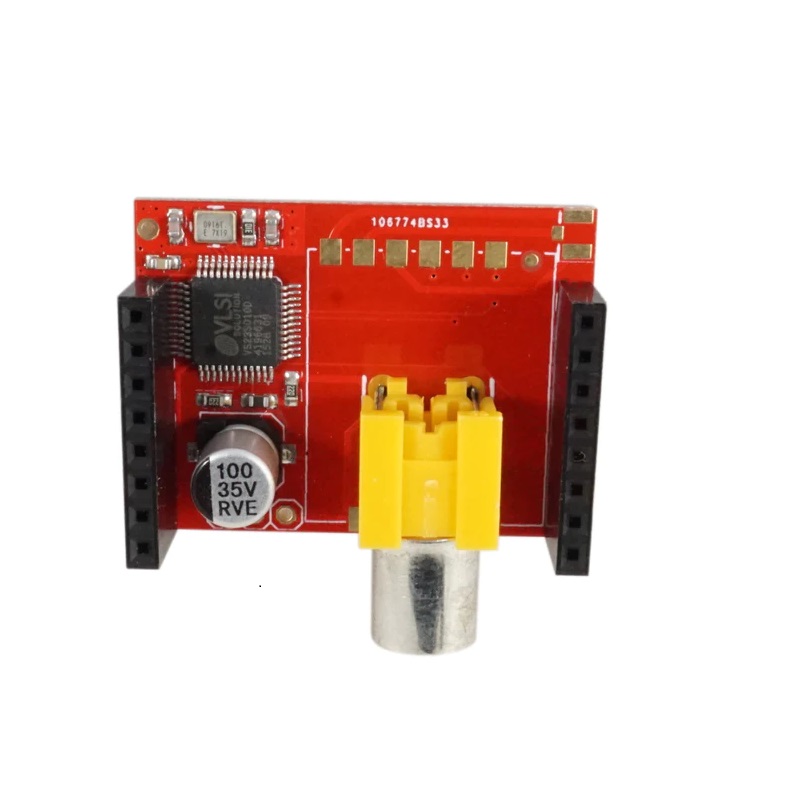

OpenMV TV Shield - Interface Connector
The OpenMV TV Shield is an interface board that enables analog video output from OpenMV Cam modules, converting SPI signals to NTSC for display on portable screens or monitors.
Features
- Converts OpenMV Cam SPI video to standard NTSC analog output
- Compact PCB design measuring 35mm x 33mm for easy integration
- Supports a 60 Hz frame rate for smooth video transmission
- Wide operating temperature range from -10°C to 60°C
- Ultra-lightweight at only 7 grams for minimal payload impact
Out of stock
The OpenMV TV Shield serves as a critical interface for developers and builders using OpenMV Cam computer vision modules in drone or robotic applications. It bridges the digital SPI output of the camera to an analog NTSC signal, allowing real-time video to be displayed on standard monitors, portable screens, or even transmitted via simple analog video transmitters.
Its compact footprint and minimal weight make it an ideal add-on for projects where visual feedback or telemetry display is required without adding significant bulk. The board is designed for straightforward commissioning, requiring only a connection to the OpenMV Cam’s SPI pins.
Additional Information
| Weight | 0.007 kg |
|---|---|
| Dimensions | 3.3 × 3.5 cm |
