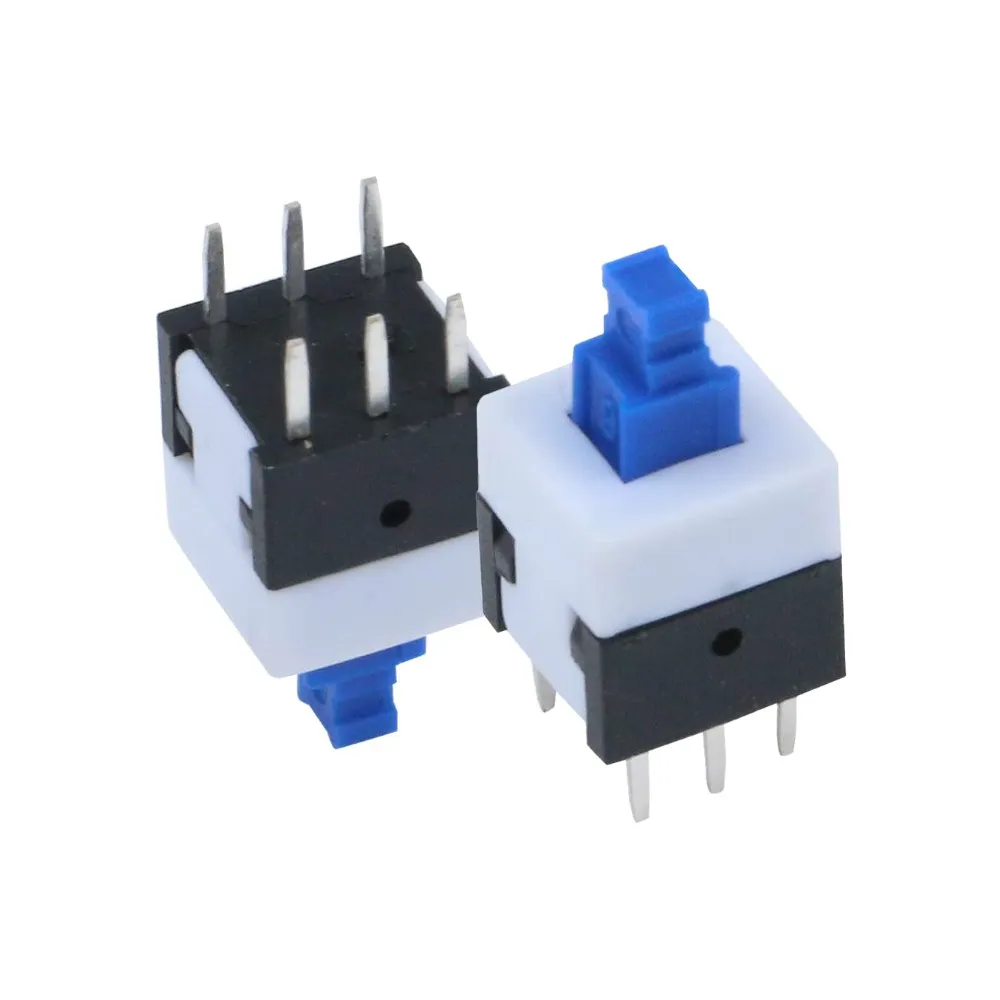

Generic 6 Pin DPDT Push Switch – Self-Locking (1 Pcs)

The Engineering Behind DPDT Push Switches

The 6 Pin DPDT (Double Pole Double Throw) Push Switch is a fundamental electromechanical component designed for versatile circuit control. It operates on a simple push-to-actuate mechanism, providing two independent sets of contacts that can each switch between two different circuits. The self-locking feature ensures that once pressed, the switch maintains its activated state until pressed again, offering a stable ‘on’ or ‘off’ condition without continuous manual pressure. This makes it ideal for applications requiring persistent state changes, such as power toggles or mode selections in complex electronic systems.

Constructed with a durable plastic housing and high-quality metal contacts, this switch is built for repeated actuation cycles, offering both mechanical resilience and electrical reliability. Its through-hole design facilitates easy integration into breadboards and custom PCBs, making it a staple for both educational STEM projects and professional prototyping. The robust build ensures consistent performance in demanding environments, preventing intermittent connections and extending product lifespan.

Dual Pole Dual Throw (DPDT) Functionality

The DPDT configuration is a significant upgrade from simpler SPDT or SPST switches, providing two independent poles, each with two throw positions. This allows for simultaneous control of two separate circuits or the reversal of polarity, offering advanced routing capabilities. For instance, it can switch both live and neutral lines simultaneously, or reverse the direction of a DC motor, providing superior isolation and functional versatility in intricate designs.

This dual-channel capability significantly simplifies circuit design by consolidating control over multiple lines, reducing component count, and enhancing operational safety. It enables complex switching logic within a single compact unit, streamlining user interfaces and increasing the functional density of control panels in robotics, audio equipment, and industrial applications. The inherent versatility supports a broad spectrum of engineering challenges.

Self-Locking Mechanism

The integrated self-locking (latching) mechanism is a crucial feature that distinguishes this push switch. Unlike momentary switches, which return to their original state upon release, this switch mechanically latches into its actuated position. A subsequent press releases the latch, returning it to the unactuated state. This provides a clear, persistent state indication and eliminates the need for external latching circuits or continuous user interaction.

This latching action directly addresses pain points associated with momentary switches in applications requiring sustained state changes, such as power toggles for devices or mode selections that need to remain active. It prevents accidental disengagement and ensures the device stays in the desired operational state, improving user experience and reducing the complexity and power consumption of maintaining a state through software or additional hardware.

Optimized for Performance & Integration

• Switch Type: DPDT Push Button (Self-Locking)
• Number of Pins: 6
• Action Type: Latching / Self-Lock
• Contact Rating: Typically 0.5A @ 50V AC/DC
• Mounting Type: Through-Hole (PCB Mount)
• Operating Temperature: -20°C to +70°C (Typical)
• Electrical Life: >10,000 cycles (Typical)

Features & Benefits

• DPDT Configuration: Controls two independent circuits simultaneously, offering advanced routing and polarity reversal capabilities.
• Self-Locking Action: Maintains activated state after a single press, providing persistent ON/OFF control without continuous manual input.
• 6-Pin Design: Facilitates clear and organized wiring for double pole double throw applications on PCBs.
• Robust Mechanical Build: Ensures high durability and reliable performance through thousands of actuation cycles.
• Versatile Application: Ideal for power toggles, mode selections, and various control functions in electronics projects.
• Easy Integration: Standard through-hole pins allow for straightforward mounting on breadboards and custom circuit boards.
