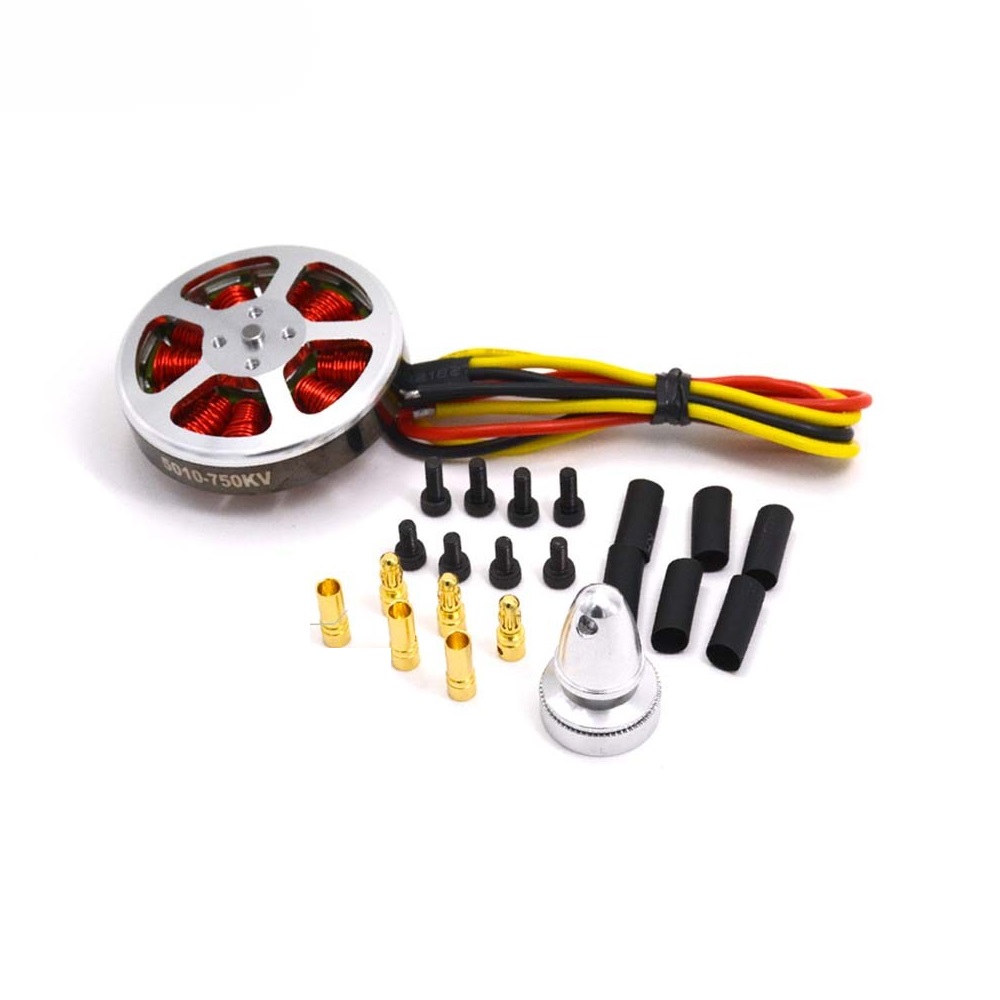

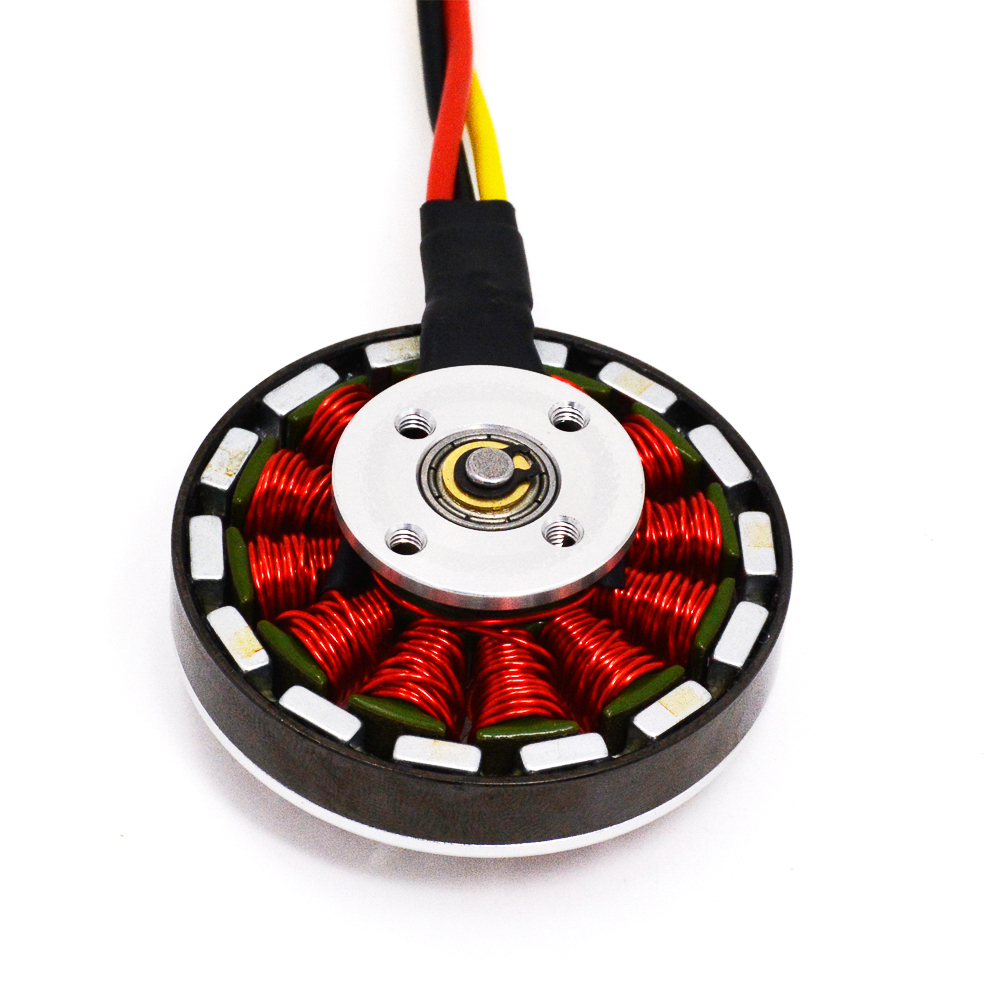

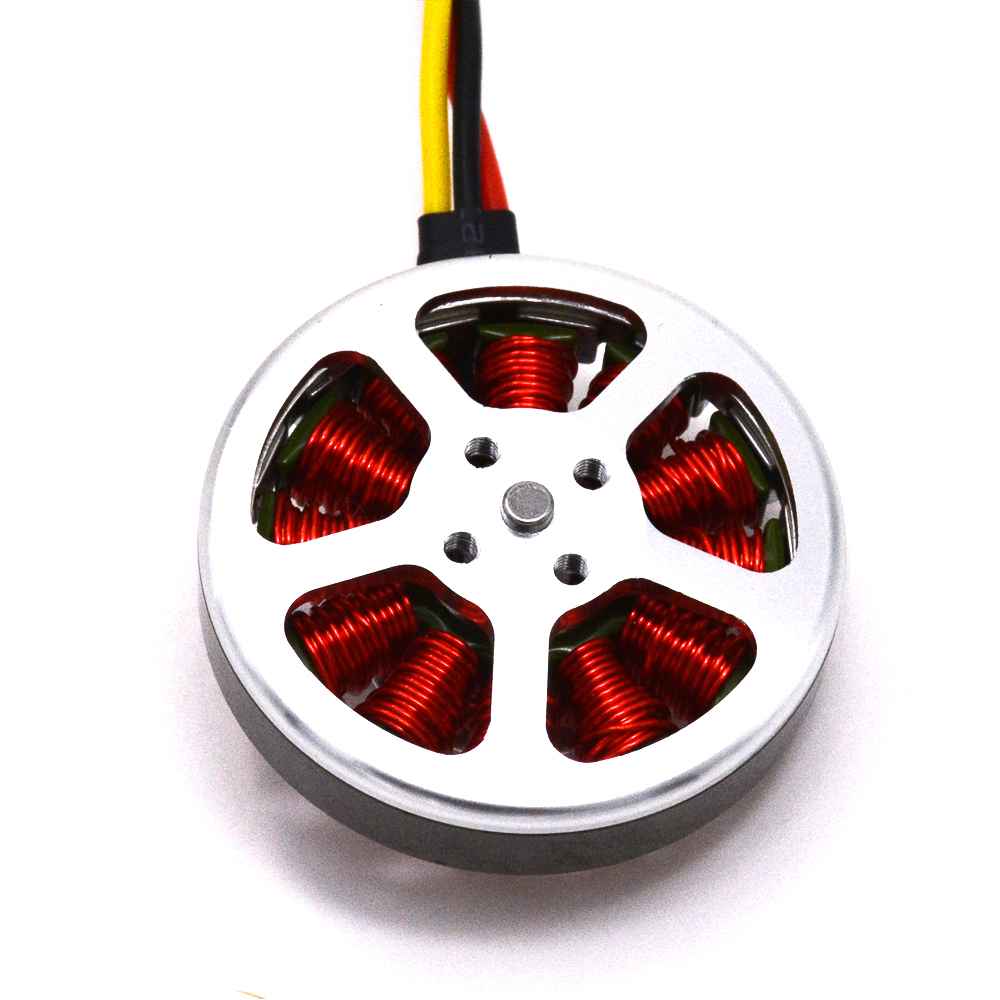

Generic 5010 750KV High Torque Brushless Motor
The Generic 5010 750KV High Torque Brushless Motor is engineered for heavy-lift and industrial UAV applications, compatible with 2S to 6S LiPo batteries and requiring a 20-40A ESC. Its high-torque design delivers up to 1500g of thrust on 4S, making it suitable for large multirotor platforms.
Features
- 750KV high-torque brushless motor designed for 14″ to 16″ propellers.
- Wide 2S to 6S LiPo battery compatibility for flexible power configurations.
- Integrated self-cooling technology with fan-style holes for thermal management up to 140°C.
- Features a 4mm shaft and dual 16mm/19mm mounting hole patterns for versatile installation.
- Constructed with NdFeB magnets and lubricated ball bearings for smooth, reliable operation.
Out of stock
This 5010 750KV brushless motor is built for demanding UAV applications requiring sustained high torque and thermal resilience. Its stator windings utilize 140°C high-temperature wire and are secured with thermal adhesives to prevent shifting and short circuits, ensuring durability under continuous load. The epoxy-coated internal plates provide additional electrical insulation, protecting the windings.
The motor’s design incorporates four fan-style cooling holes that actively circulate air during operation, effectively managing heat buildup. This, combined with its robust mechanical construction featuring a 4mm shaft and dual mounting patterns (16mm and 19mm M3), makes it a reliable propulsion solution for custom heavy-lift drones, agricultural sprayers, and aerial photography platforms.
Additional Information
| Weight | 0.12 kg |
|---|---|
| Dimensions | 5 × 5 × 2 cm |
