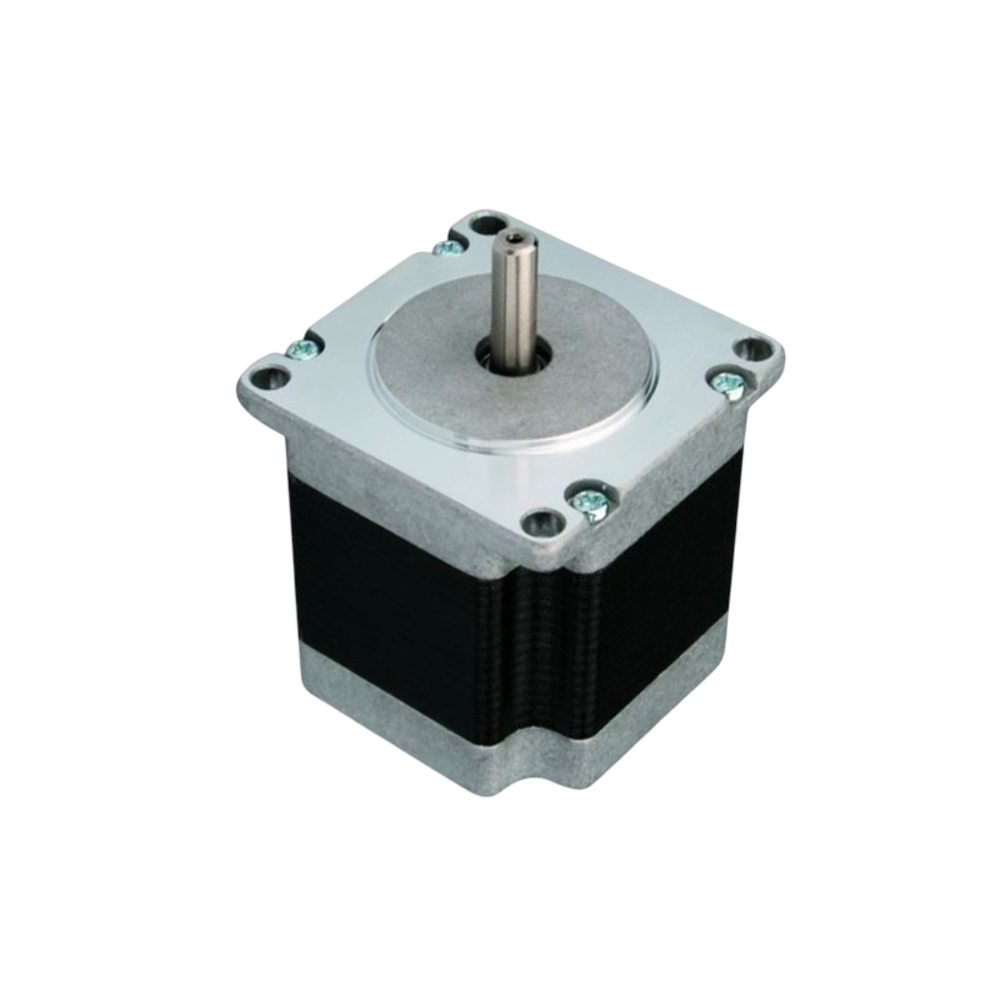

NEMA 23 57HS51-1006B Hybrid Stepper Motor - Dual Round Shaft

This 57HS51-1006B NEMA 23 stepper motor provides a holding torque of 7.2 kg-cm (0.72 N-m). This torque is achieved with an operating current of 1A per phase, ensuring robust and stable positioning for various applications requiring significant rotational force, especially at lower speeds.

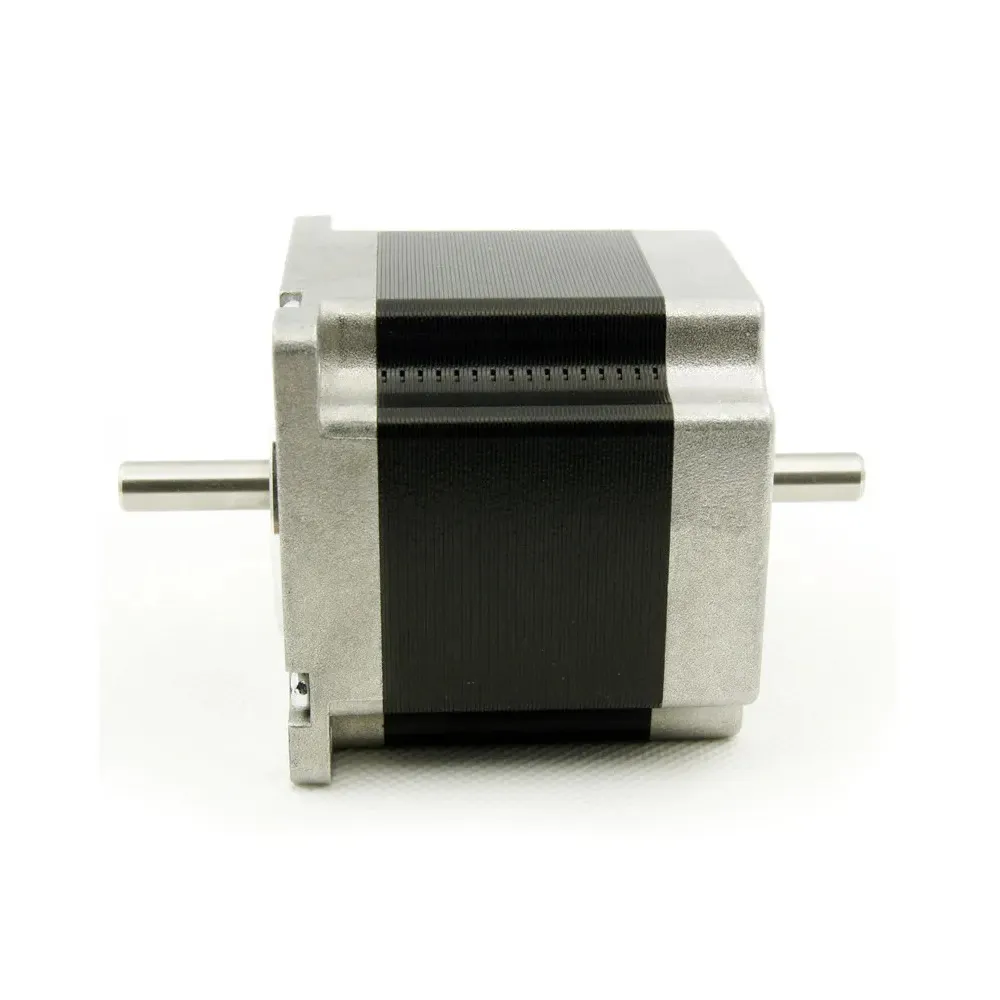

A dual round shaft features output shafts on both ends of the motor body. This design offers increased versatility, allowing attachment of components like gears, pulleys, or encoders on either side. It simplifies mechanical integration and enables more complex drive systems or feedback mechanisms.

While capable, this NEMA 23 stepper motor is primarily optimized for low-speed applications requiring high precision and torque. Stepper motors generally experience a decrease in torque at very high speeds. For optimal performance, it is best utilized in scenarios where accuracy and holding power are prioritized over extreme velocity.

This 57HS51-1006B stepper motor typically operates with an open-loop control mechanism. This means position is determined by the input pulses sent to the motor driver without direct feedback. While simplifying control circuitry, precise tuning of step rates and microstepping is essential for achieving desired accuracy in various motion applications.

A 6-lead configuration allows for greater wiring flexibility. It can be connected in either bipolar series, bipolar parallel, or unipolar modes. Bipolar series offers higher torque at lower speeds, bipolar parallel provides higher speed performance, and unipolar simplifies driver requirements while reducing torque output.
