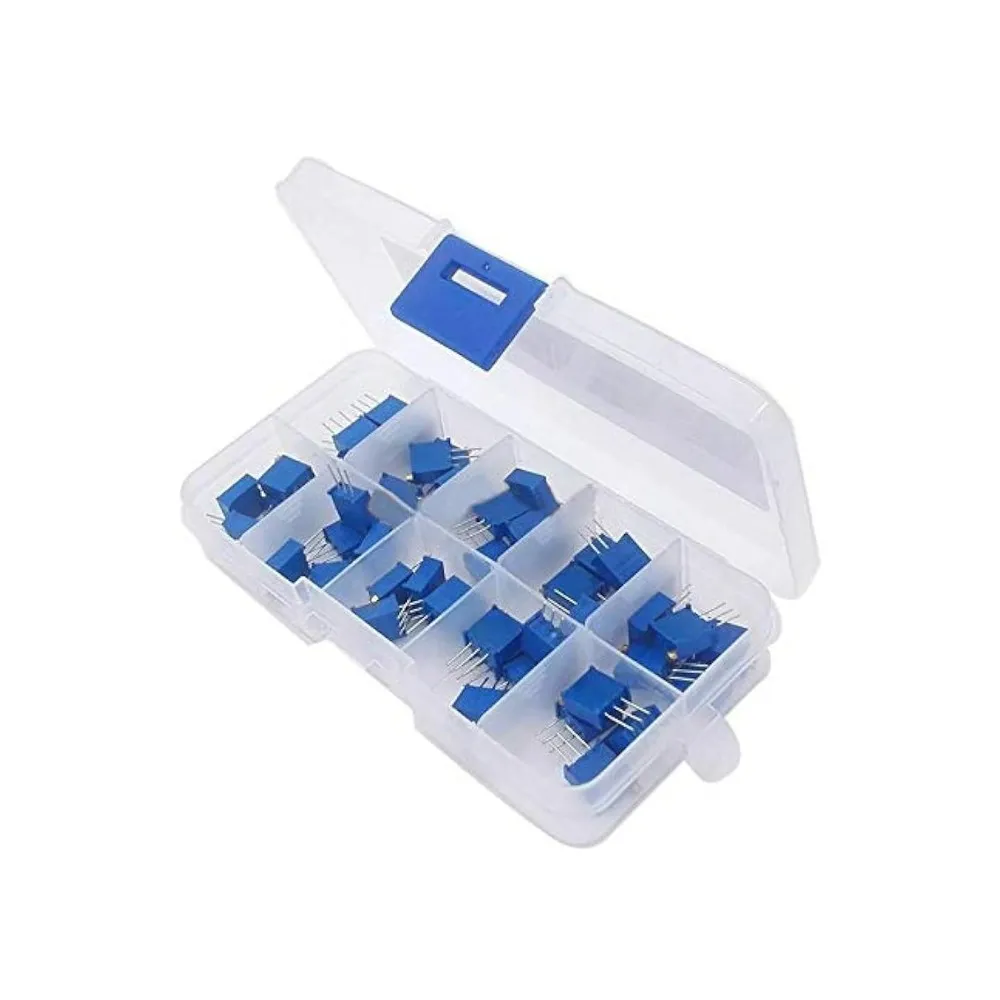

Generic 3296W Adjustable Potentiometer Kit | Multi-Turn Trimmer | High Precision Voltage Control
₹299.00₹450.00 (price_including_tax) (-34%)
Achieve unparalleled precision in circuit tuning with this 3296W potentiometer kit. Optimize voltage and resistance for sensitive electronics and calibration. Built with robust materials for enduring reliability in any engineering endeavor.
Precision voltage regulation for demanding circuit applications, ensuring stable, accurate performance across diverse projects.
Achieve unparalleled circuit precision with 25-turn adjustment, essential for sensitive calibration tasks.
Experience lasting stability and reliability from the Cermet element, ideal for demanding environments.
This kit offers diverse resistance values, empowering wide-ranging electronic design and prototyping.
The Engineering Behind 3296W Adjustable Potentiometer Kit
The 3296W series multi-turn adjustable potentiometer kit provides engineers and hobbyists with a reliable solution for fine-tuning resistance in electronic circuits. Utilizing a robust worm-gear adjustment mechanism, these trimpots offer 25 turns for precise, incremental resistance changes, making them ideal for calibration, voltage division, and current limiting in sensitive applications where granular control is paramount.
Constructed with high-grade Cermet resistive elements, these potentiometers ensure excellent stability, high-temperature performance, and long operational life. Their compact design and industry-standard pin configuration make them suitable for integration into a wide array of prototyping boards, custom PCBs, and final product assemblies requiring stable, adjustable resistance.
Multi-Turn Precision Adjustment
The distinctive 25-turn design of the 3296W potentiometer allows for exceptionally fine-grained resistance adjustment. Unlike single-turn potentiometers that offer coarse control, the multi-turn mechanism translates significant shaft rotation into minute resistance changes, crucial for achieving exact setpoints in sensitive analog circuits, sensor calibration, and oscillator frequency tuning.
Cermet Element Durability
Featuring a Cermet (ceramic-metal) resistive element, the 3296W series boasts superior electrical stability, power dissipation capabilities, and resistance to environmental factors compared to carbon or conductive plastic alternatives. This construction guarantees consistent performance over extended periods, minimizing drift and maximizing reliability even in fluctuating operational conditions.
Optimized for Performance & Integration
- Adjustment Type: Top Adjustment
- Resistance Element: Cermet
- Number of Turns: 25 Turns
- Temperature Range: -55°C to +125°C
- Power Rating: 0.5W at 70°C
- Pin Configuration: Standard 3-pin SIP
- Tolerance Standard: ±10% (Common values included)
- Kit Inclusions: Assorted resistance values for broad utility
Features & Benefits
- 25-Turn Design: Enables highly accurate and stable resistance setting for critical circuit calibration.
- Cermet Resistive Element: Ensures superior thermal stability and extended operational lifespan under diverse conditions.
- Wide Resistance Range: Kit provides a selection of values for broad applicability across various electronic projects.
- Standard Pinout: Facilitates easy integration with breadboards, perfboards, and custom printed circuit boards.
- Compact Form Factor: Minimizes PCB footprint, optimizing space utilization in dense electronic designs.
- High Power Rating: Capable of handling up to 0.5W, suitable for many intermediate power applications.
Pro-Grade Advantages
- Exceptional multi-turn precision for critical adjustments.
- Cermet construction ensures high stability and thermal resilience.
- Compact, industry-standard footprint for easy integration.
- Broad utility with assorted resistance values in one kit.
Technical Considerations
- Limited to moderate power applications, 0.5W max.
- Mechanical adjustment lifespan can be a factor in high-cycle use cases.
What are the key advantages of a multi-turn potentiometer like the 3296W?
Multi-turn potentiometers provide significantly higher resolution and precision compared to single-turn variants. The 25-turn mechanism allows for very fine adjustments, which is critical for sensitive calibration in analog circuits, precise voltage setting, and feedback control systems where minute changes are required.
What does ‘Cermet’ refer to in the 3296W’s construction?
Cermet refers to a composite material made from ceramic and metallic particles, used for the resistive element. This construction offers superior stability, lower temperature coefficient of resistance, and better power dissipation capabilities compared to traditional carbon or conductive plastic elements, ensuring long-term reliability.
Can the 3296W potentiometers be used in high-frequency applications?
While the 3296W series is primarily designed for DC and low-frequency AC applications, its compact design minimizes parasitic inductance and capacitance. For very high-frequency RF circuits, specialized RF trimmers are usually preferred, but for most general-purpose electronics, the 3296W performs adequately.
What is the typical operating voltage range for these trimpots?
The 3296W series is rated for a maximum operating voltage, typically around 300VDC or 200VAC (RMS). It’s crucial to consider the power dissipation rating (0.5W at 70°C) and ensure that the product of current and voltage across the potentiometer does not exceed this limit.
How should I choose the correct resistance value from the kit?
The appropriate resistance value depends entirely on your circuit’s specific requirements for voltage division, current limiting, or impedance matching. Calculate the required resistance range based on your circuit’s inputs and desired outputs, then select the potentiometer from the kit that encompasses or matches that range.
What is the mounting orientation for the 3296W series?
The 3296W series typically features a vertical adjustment screw (top adjustment) and through-hole pins designed for vertical mounting on a PCB. This configuration allows for adjustments from the top side of the board, making it convenient for access after assembly.
| Specification | Value |
|---|---|
| Resistance Element | Cermet |
| Adjustment Type | Top Adjustment (25 Turns) |
| Rated Power (70°C) | 0.5W |
| Maximum Operating Voltage | 300VDC / 200VAC (RMS) |
| Resistance Tolerance | ±10% |
| Temperature Coefficient | ±100 ppm/°C |
| Operating Temperature Range | -55°C to +125°C |
| Insulation Resistance | 1GΩ (min) at 500VDC |
| Rotational Life | 200 Cycles |
| Pin Spacing | 2.54mm (0.1″) Standard |
Additional information
| Brand | Generic |
|---|---|
| Value | Assorted (10Ω to 1MΩ) |
| Package | Top Adjustment Through-Hole |
| Tolerance | ±10% |
| Power Rating | 0.5W |
| Channels | Single |
