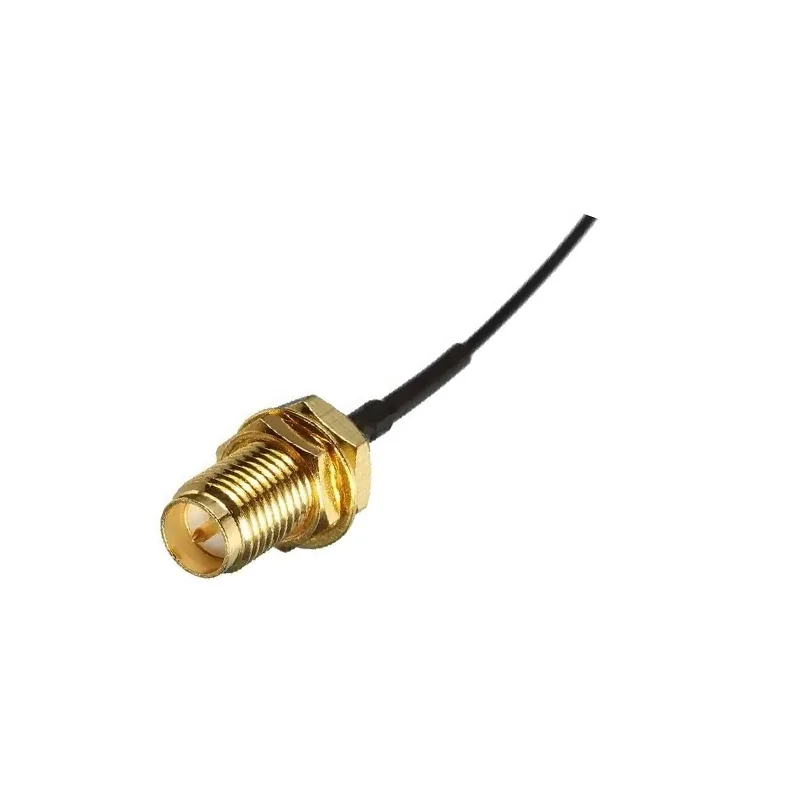

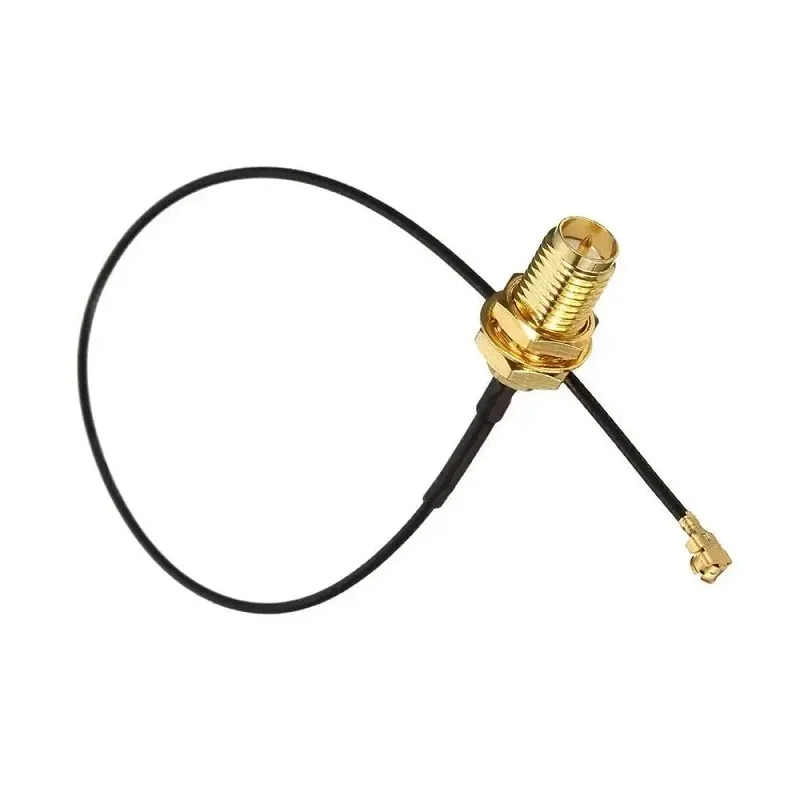

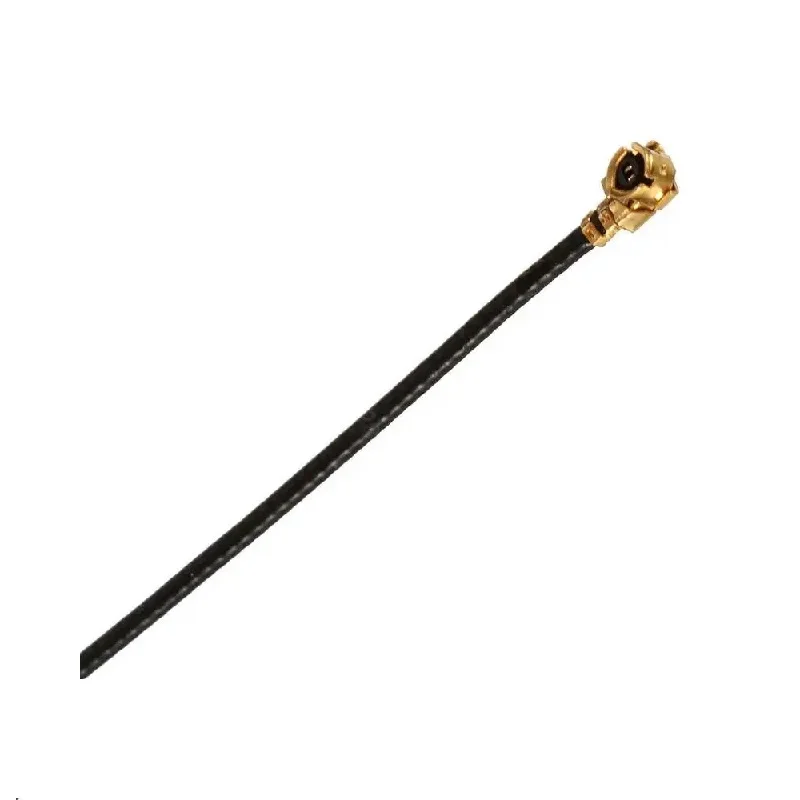

Generic 25cm IPEX 1 to RP-SMA Female Cable RG1.13
This 25cm RG1.13 coaxial cable provides a reliable IPEX 1 (MHF) to RP-SMA Female interface, essential for connecting external high-gain antennas to mini-PCIe cards, wireless routers, and embedded Wi-Fi/Bluetooth modules.
Features
- Direct IPEX 1 (MHF) to RP-SMA Female interface for antenna extension and replacement.
- 25cm RG1.13 coaxial cable offers low-loss, flexible routing for internal device layouts.
- Enables connection of external SMA antennas to internal mini-PCIe cards and embedded modules.
- Supports up to 50W maximum input power for robust wireless applications.
- Essential for router/access point repair, signal boosting, and RF testing setups.
Out of stock
This IPEX 1 to RP-SMA Female pigtail cable is a fundamental RF interconnect for wireless hardware development and repair. The IPEX 1 (or MHF) connector is the industry-standard interface found on embedded Wi-Fi, Bluetooth, and cellular modules, allowing a secure, low-profile connection to the module’s RF pad. The opposite RP-SMA Female connector provides a standard threaded interface for attaching a vast array of external antennas, enabling significant improvements in signal range and reliability.
Constructed with RG1.13 coaxial cable, it balances flexibility with controlled impedance (typically 50Ω) to maintain signal integrity over its 25cm length. With a rated maximum input power of 50W, it is suitable for high-power wireless applications, including router antenna upgrades, access point modifications, and connecting test equipment to embedded radio boards for performance validation.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 11 × 8 × 0.5 cm |
