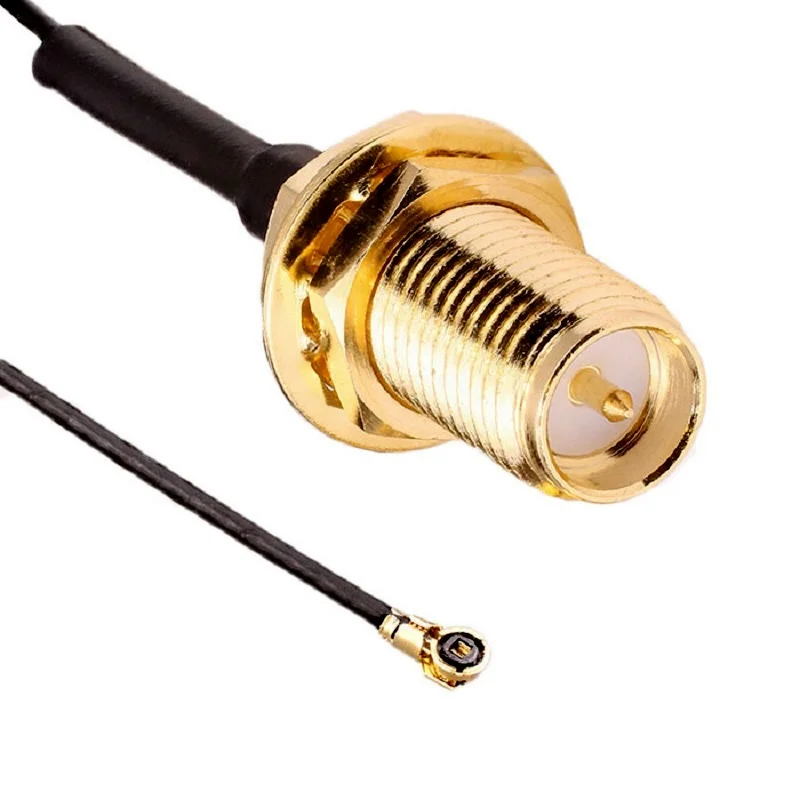

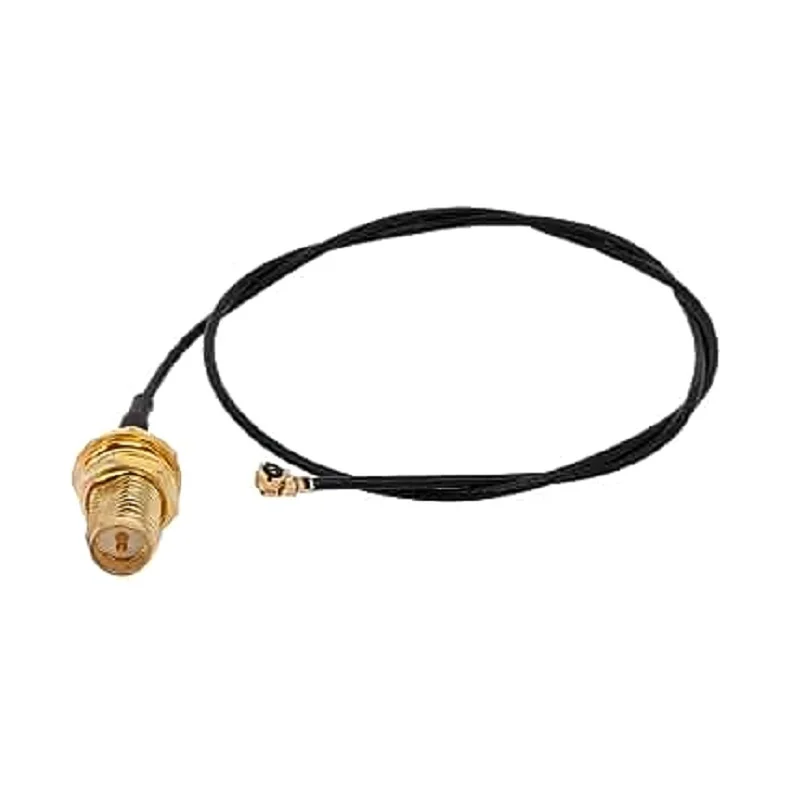

50cm RP-SMA Female to IPEX4 Connector Cable RG0.81
This 50cm RG0.81 coaxial pigtail cable connects RP-SMA female ports on routers, gateways, or external antennas to IPEX4 (U.FL) connectors on internal wireless modules, ensuring low-loss signal transfer for 5G, 4G, Wi-Fi, and LoRa applications.
Features
- RP-SMA Female to IPEX4 Interface: Bridges standard external antenna ports with compact internal module connectors commonly found on ESP32, cellular modems, and LoRa transceivers.
- 50cm RG0.81 Coaxial Cable: Provides flexible routing with a 50-ohm impedance characteristic for maintaining RF signal integrity across Wi-Fi, cellular, and GNSS bands.
- 11mm Connector Length: Features a standard IPEX4 (U.FL) plug with a secure snap-on locking mechanism for reliable connections on densely packed PCBs.
- Universal Wireless Compatibility: Supports signal extension for 5G/4G LTE modules, Wi-Fi 6/6E routers, Bluetooth adapters, LoRaWAN nodes, and GPS/GNSS receivers.
Out of stock
This 50cm RP-SMA female to IPEX4 connector cable is a critical RF interconnect for system integrators and embedded developers needing to route signals from an internal wireless module’s miniature IPEX4 port to an externally accessible RP-SMA antenna jack. The RG0.81 coaxial construction provides a balanced 50-ohm impedance, minimizing VSWR and signal loss across common IoT frequency bands from 700MHz to 6GHz.
The reverse-polarity SMA (RP-SMA) female connector is the standard interface for many consumer Wi-Fi routers, cellular gateways, and external antenna mounts, while the IPEX4 (often referred to as U.FL) male plug mates with the ultra-compact surface-mount sockets found on ESP32-S3, SIM7600G, RA-02 LoRa, and Quectel BG77 modules. The 11mm connector length and flexible cable allow for clean routing within tight enclosures without stressing the solder joints on the module.
