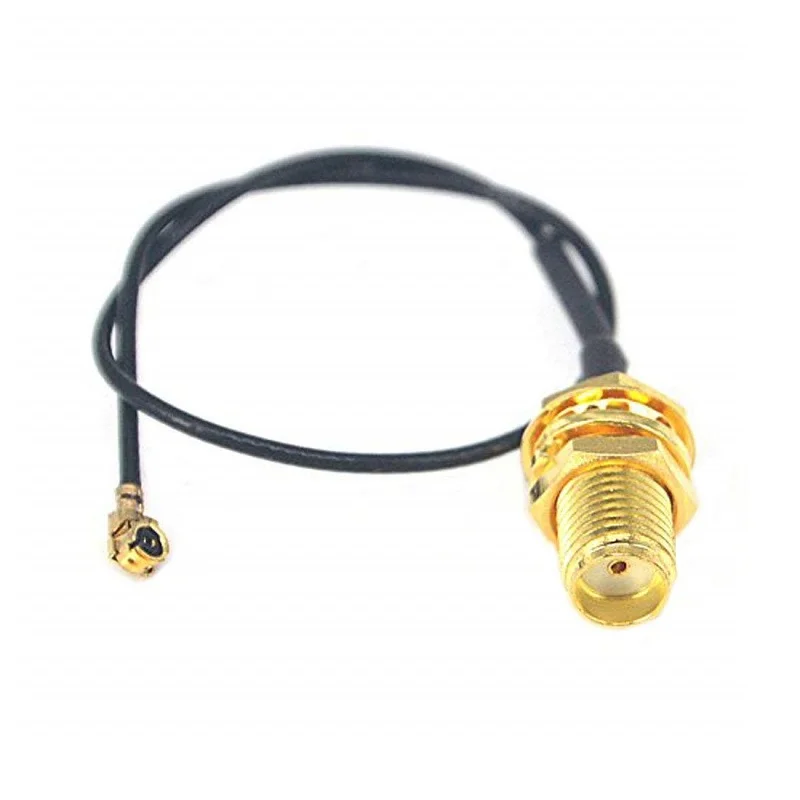

SMA Female to IPEX1 Connector Cable RG1.13 30cm
This 30cm RG1.13 coaxial cable provides a high-frequency RF link between an SMA female port and an IPEX1 (U.FL) socket, commonly used to connect external antennas to Wi-Fi, Bluetooth, GPS, and IoT modules.
Features
- Provides a reliable RF bridge between SMA and IPEX1 (U.FL) connectors for antenna connections.
- 30cm RG1.13 coaxial cable offers flexibility for routing in space-constrained IoT and embedded designs.
- SMA female connector interfaces with standard external antennas, pigtails, and extension cables.
- IPEX1 male connector mates directly with common wireless module sockets (ESP32, nRF24L01+, SIM modules).
- Low-loss cable suitable for Wi-Fi 2.4/5GHz, Bluetooth, GPS, and cellular frequency bands.
Out of stock
This SMA Female to IPEX1 connector cable is a critical RF accessory for integrating external antennas into compact wireless systems. The RG1.13 coaxial cable provides a 30cm flexible link with low signal attenuation, maintaining impedance matching for frequencies commonly used in IoT communication. The SMA female end allows direct connection to a wide range of standard-gain antennas, while the miniature IPEX1 plug interfaces directly with the surface-mount connectors found on most Wi-Fi, Bluetooth, and cellular modules.
Engineered for reliable signal transmission, this pigtail cable minimizes VSWR and insertion loss, ensuring maximum RF power transfer between your antenna and transceiver. Its compact and flexible design is ideal for routing within tight enclosures for drones, handheld devices, industrial sensors, and smart home automation products, providing a robust and detachable antenna solution.
Additional Information
| Weight | 0.004 kg |
|---|
