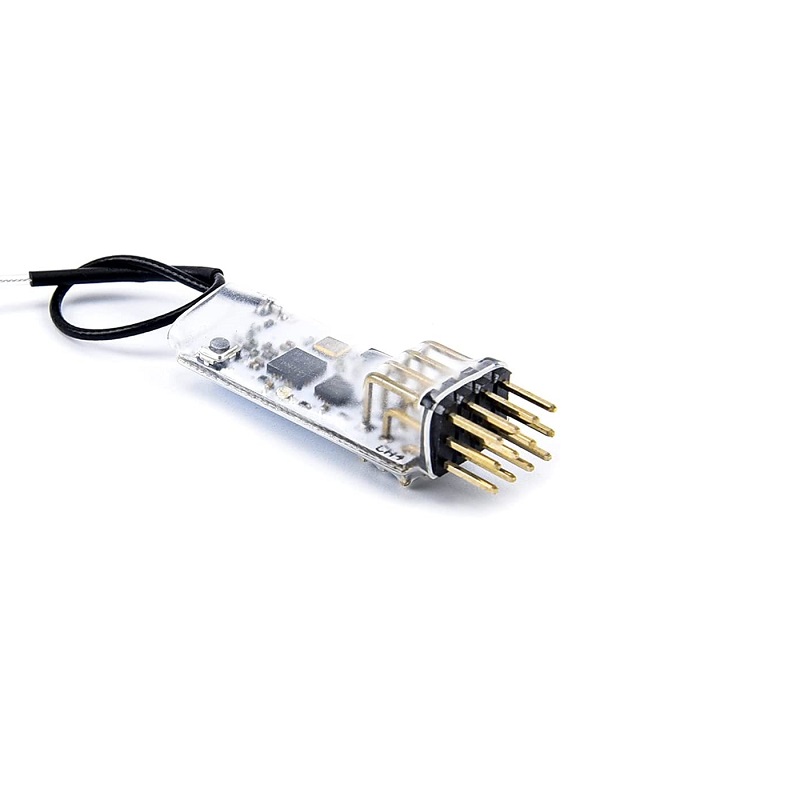

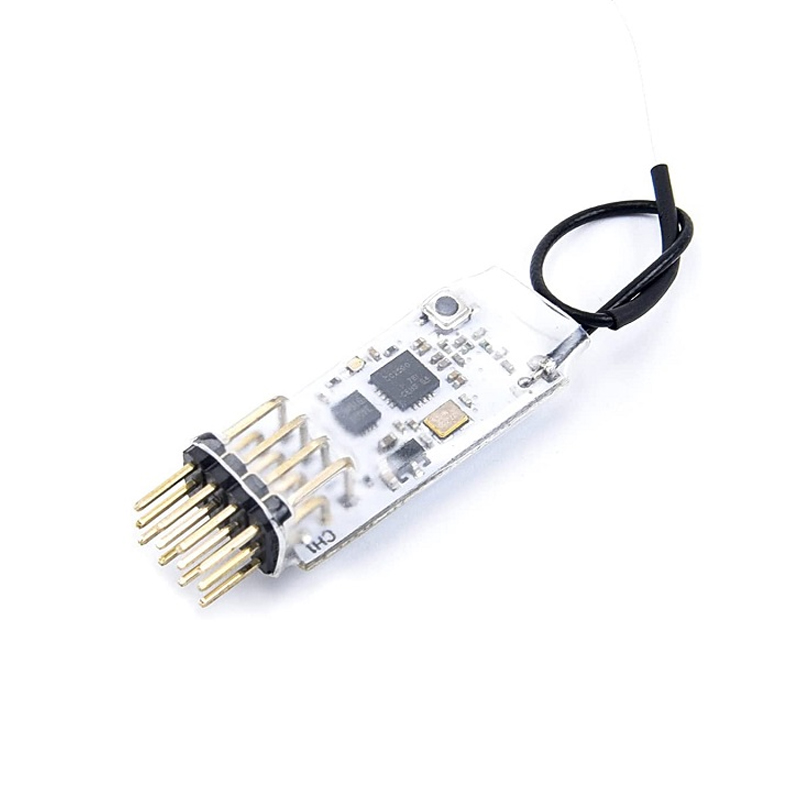

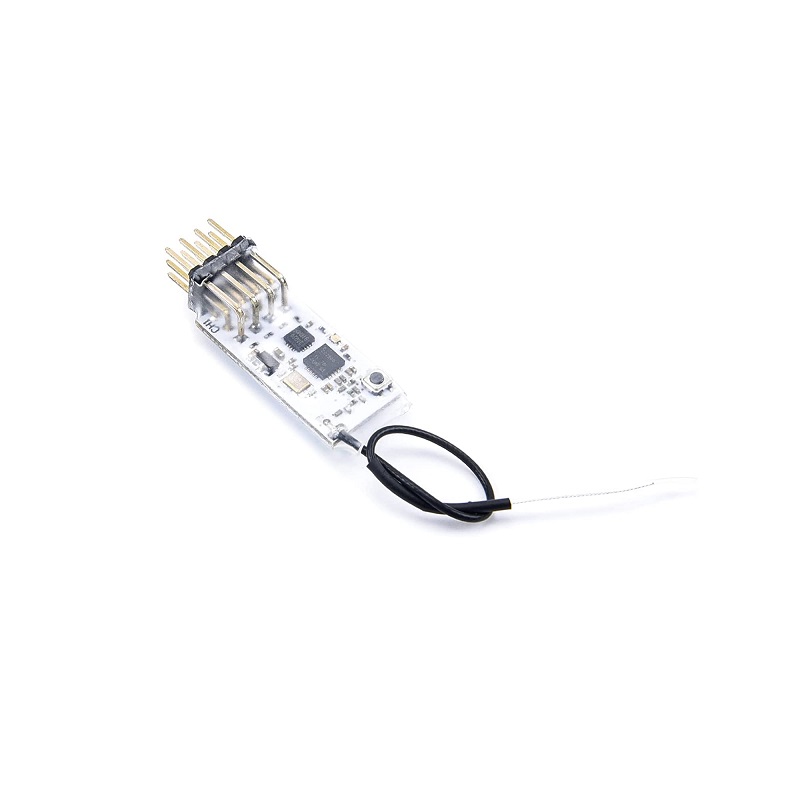

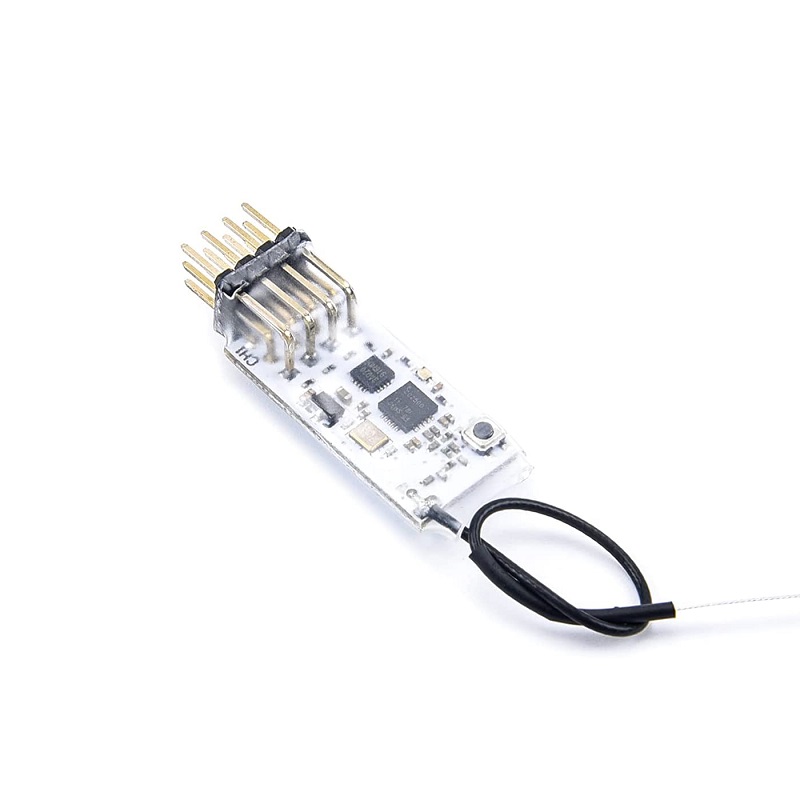

Generic 2.4G 4CH Receiver Compatible with D8 Receiver w/ PWM Output
This 2.4GHz 4-channel PWM receiver is designed for compatibility with FrSky D8 mode transmitters, including the X9D, XJT, DJT, DFT, and DHT modules. It operates on a wide 3.5-10V input range and provides a control range exceeding 500 meters for FPV drone and RC model applications.
Features
- 4-channel PWM output for direct servo and flight controller connection.
- Compatible with FrSky D8 mode transmitters (X9D, XJT, DJT, DFT, DHT).
- Wide operating voltage range from 3.5V to 10V DC.
- Lightweight 2.2g design with a 100mm external antenna.
- Control range greater than 500 meters in open areas.
Out of stock
This compact 2.4GHz receiver provides a reliable link between compatible FrSky D8 mode transmitters and your multirotor or RC aircraft. It outputs standard PWM signals on four channels (AIL, ELE, THR, RUD), making it suitable for direct connection to flight controllers or servos. The receiver features a 1024-step resolution for precise control input.
With an ultra-lightweight build of just 2.2 grams and a low 50mA current draw, it is an ideal choice for weight-sensitive FPV drone builds. The included 100mm antenna and robust RF design ensure a stable control link with a range exceeding 500 meters under optimal conditions.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 8 × 12 × 1 cm |
