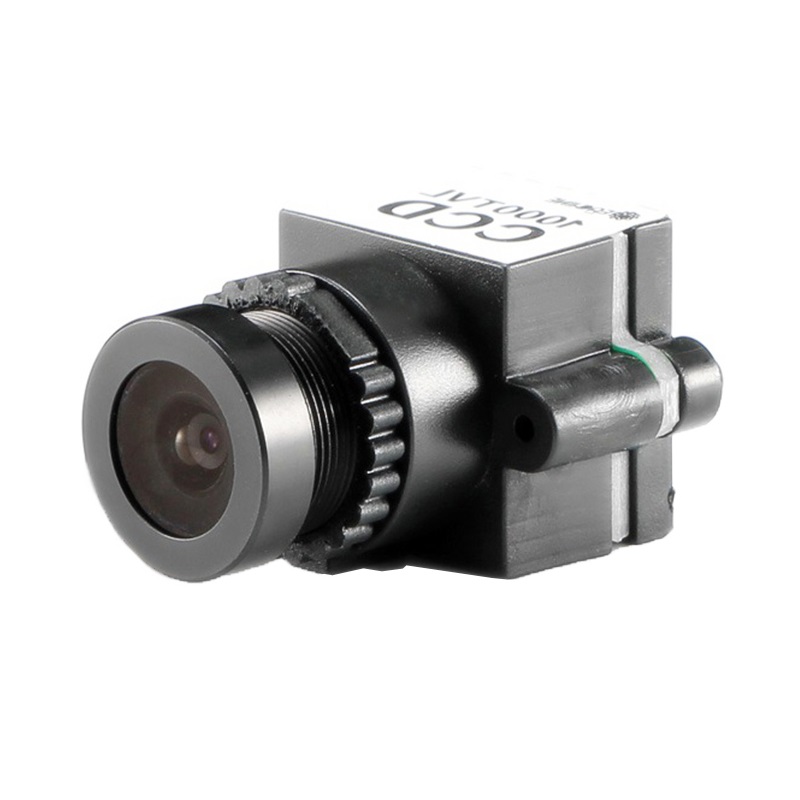

Generic 1000TVL 1/3 CCD Mini FPV Camera - 110 Degree 2.8mm Lens

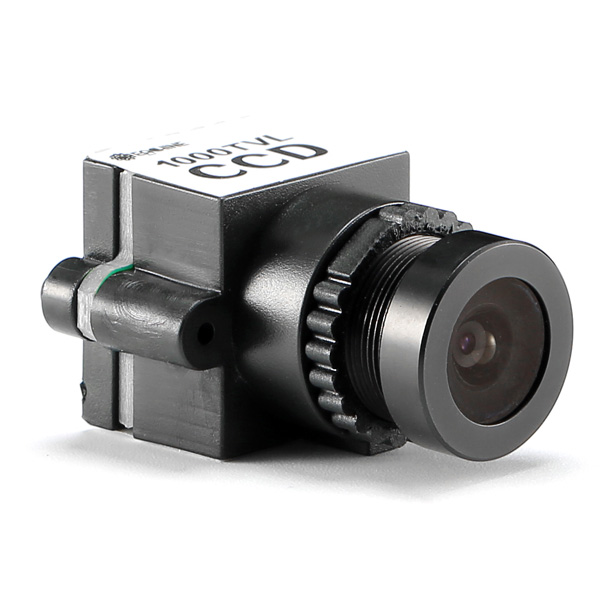

Generic 1000TVL 1/3 CCD Mini FPV Camera - 110 Degree 2.8mm Lens - Image 2
Generic 1000TVL 1/3 CCD Mini FPV Camera - 110 Degree 2.8mm Lens - Image 3

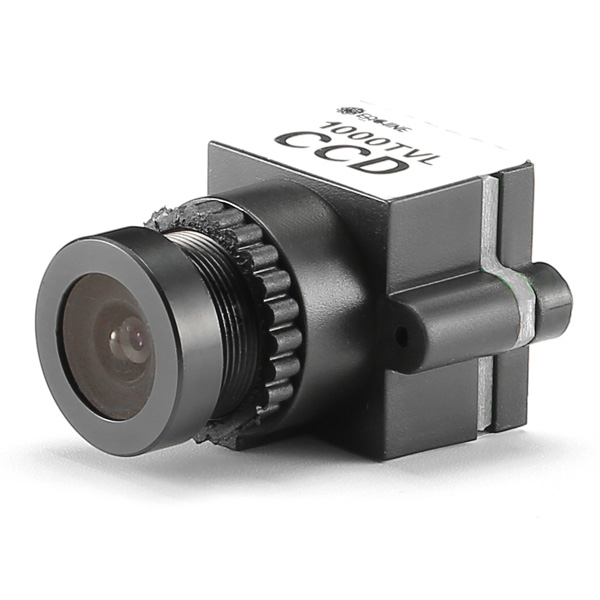

Generic 1000TVL 1/3 CCD Mini FPV Camera - 110 Degree 2.8mm Lens - Image 4
SKU: DRFC-2320
📋 GST Invoice Available

Generic 1000TVL 1/3 CCD Mini FPV Camera - 110 Degree 2.8mm Lens

₹1,309.00 (Inclusive of all taxes)
Out of Stock

This 1000TVL 1/3″ CCD FPV camera features a 110-degree 2.8mm lens, ultra-low latency (<1ms), and a wide 3.6-5V input range, making it a plug-and-play solution for analog FPV racing and freestyle drone builds.

Features

  • 1/3″ CCD sensor delivers 1000TVL resolution for clear, detailed analog video feed.
  • 110-degree wide-angle 2.8mm lens provides broad field of view with minimal distortion.
  • Ultra-low latency below 1ms optimized for high-speed FPV racing and freestyle flight.
  • Wide input voltage range of 3.6V to 5V for compatibility with various drone power systems.
  • Switchable NTSC/PAL video format and includes a protective lens cover.

Out of stock

Description

Engineered for performance-critical FPV applications, this mini camera utilizes a 1/3″ CCD image sensor to provide a stable, high-resolution 1000TVL video signal with excellent low-light handling down to 0.08 Lux. Its compact PCB and housing are specifically designed for minimal weight and impact resistance, a crucial consideration for drone components.

The camera operates on a wide 3.6-5V DC input, drawing approximately 135mA at 5V, ensuring compatibility with standard 1S and regulated 5V BEC setups. The integrated 2.8mm lens offers a 110-degree field of view, balancing situational awareness with manageable distortion for precise piloting.

Key Features

  • High-Resolution CCD Sensor: 1/3" CCD delivers 1000TVL for a crisp, detailed analog video feed with reduced motion blur.
  • Wide-Angle Lens: 2.8mm IR-coated lens provides a 110° FOV, ideal for immersive FPV flight and obstacle awareness.
  • Ultra-Low Latency: Signal processing optimized for sub-1ms latency, critical for responsive control in racing and acrobatic flying.
  • Broad Voltage Compatibility: Supports 3.6V to 5V input, making it suitable for tiny whoops, micro quads, and standard 5V FPV systems.
  • Robust Construction: Compact design (24x28x17mm) and protective lens cover enhance durability for crash-prone FPV builds.
  • Format Flexibility: User-selectable NTSC or PAL video output via a simple toggle switch for global compatibility.

Applications

  • Lightweight analog FPV racing drones and micro quadcopters requiring a sub-20g camera.
  • Freestyle and cinewhoop builds where a wide 110-degree FOV enhances spatial awareness during complex maneuvers.
  • DIY micro and nano drone projects operating on 1S LiPo batteries, thanks to the 3.6V minimum input.
  • Backup or secondary camera for FPV goggles or ground stations in analog video systems.
  • Educational and beginner FPV platforms where plug-and-play setup and format switching are beneficial.

Technical Specifications

Image Sensor1/3" CCD
Resolution1000 TVL
Lens2.8mm, IR-coated
Field of View (FOV)110 degrees
Minimum Illumination0.08 Lux @ F1.2
Video FormatSwitchable NTSC/PAL
Input Voltage3.6 - 5 VDC
Current Draw (@5V)135 mA ±5
Dimensions (L x W x H)24 x 28 x 17 mm
Weight10 g
Operating Temperature0°C to 40°C

Frequently Asked Questions

What is the input voltage range for this FPV camera?

The camera supports a wide input voltage range from 3.6V to 5V DC. This makes it directly compatible with 1S LiPo batteries (3.7V nominal) and standard 5V regulated BEC outputs from flight controllers or power distribution boards, offering great flexibility for various micro and mini quad builds.

Does this camera have an On-Screen Display (OSD)?

No, this is a pure analog video camera and does not include an On-Screen Display (OSD) function. Flight data such as battery voltage or RSSI must be provided by your flight controller's OSD and overlaid on the video signal within your Betaflight or similar firmware configuration.

How do I switch between NTSC and PAL video formats?

The camera features a physical toggle switch on the PCB or cable connector to select between NTSC and PAL video output formats. You must power cycle the camera after changing the switch position for the new format to take effect, ensuring compatibility with your video receiver or goggles.

What is the field of view and lens specification?

It is equipped with a fixed 2.8mm focal length, IR-coated lens providing a 110-degree diagonal field of view. This wide-angle view is suitable for FPV flying, offering good peripheral vision, though some barrel distortion at the edges is typical for lenses of this type.

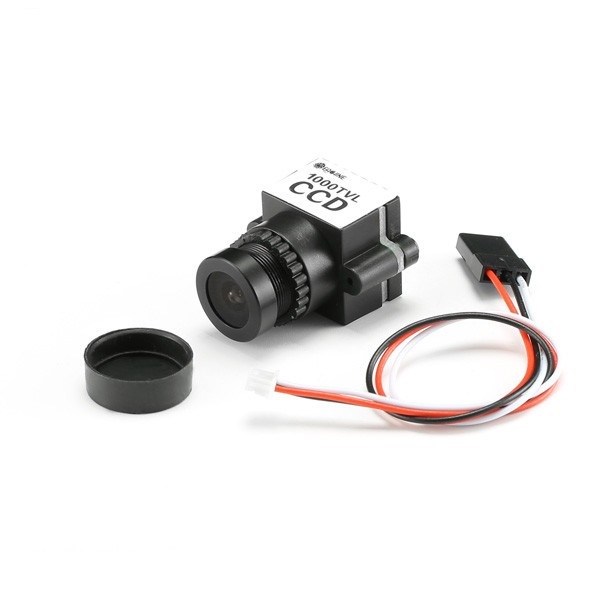

Package Includes

  • 1 x 1000TVL FPV Camera
  • 1 x Connection Cable
  • 1 x Protective Lens Cover

Additional Information

Weight 0.01 kg
Dimensions 2.4 × 2.8 × 1.7 cm
