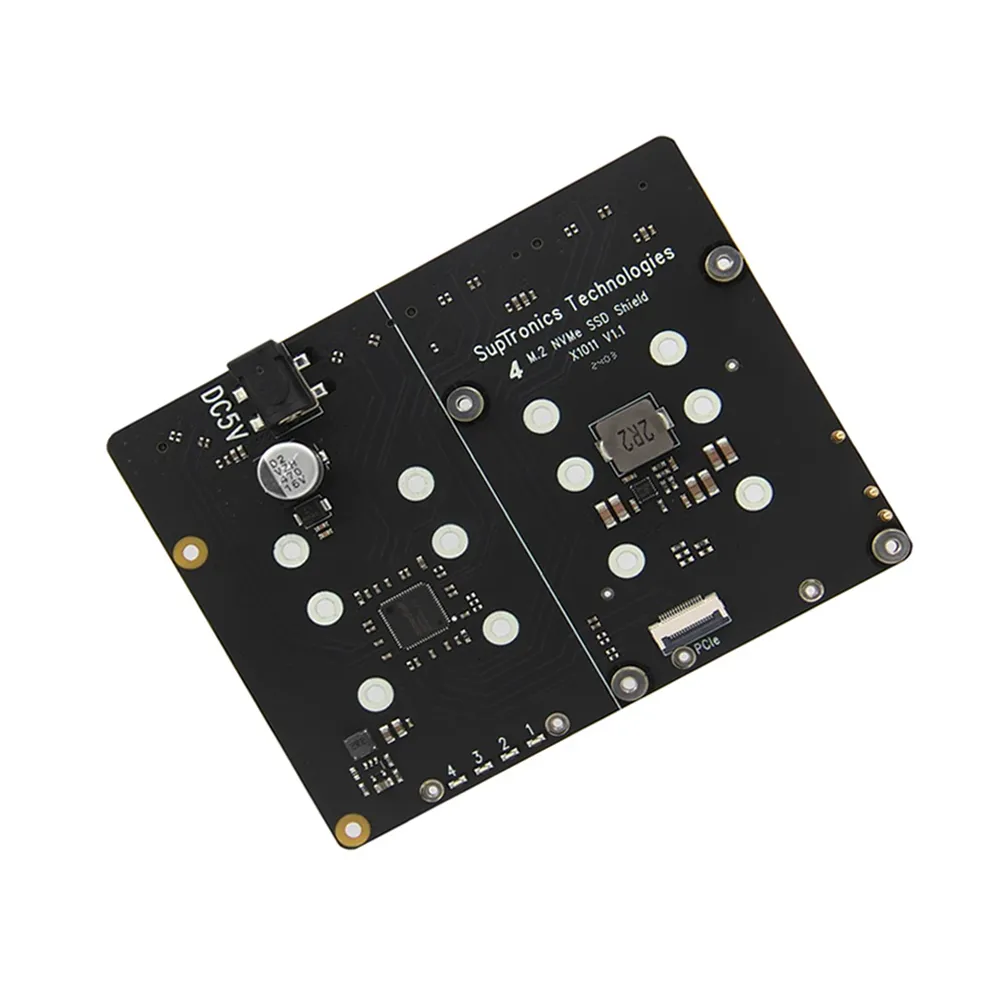

Geekworm X1011 PCIe to 4x M.2 NVMe SSD Board for Raspberry Pi 5
The Geekworm X1011 is a PCIe expansion board for the Raspberry Pi 5, designed to provide high-speed, mass-capacity storage by supporting up to four M.2 NVMe SSDs. It connects directly to the Pi 5, enabling data transfer rates of up to 5Gbps via PCIe 2.0 while allowing simultaneous use of other HATs.
Features
- Adds support for four M.2 NVMe SSDs (2280/2260/2242/2230 lengths) to Raspberry Pi 5.
- Achieves high-speed data transfer rates up to 5Gbps via PCIe 2.0 interface.
- Mounts to the underside of the Raspberry Pi 5, preserving GPIO for HAT compatibility.
- Offers flexible power options, capable of powering the Pi 5 or drawing power from it.
- Features an integrated PCIe packet switch and high-efficiency DC/DC converter for stable operation.
Out of stock
The X1011 four M.2 NVMe SSD shield provides a mass-capacity, high-speed storage solution for your Raspberry Pi 5. Its sleek and compact design allows for easy attachment of four full-size M.2 2280 SSDs. Leveraging the Raspberry Pi 5’s PCIe 2.0 interface, this board enables data transfer rates of up to 5Gbps, facilitating rapid movement of large datasets.
Designed to connect to the underside of the Raspberry Pi 5, the X1011 cleverly avoids obstructing the GPIO pins, ensuring full compatibility with your favorite HATs. Powering options are versatile: it can draw power from the Raspberry Pi 5 via pogo pins when using a USB-C power supply, or it can power the Raspberry Pi 5 itself from its onboard DC power jack with a DC adapter, centralizing your power supply.
The X1011 serves as an ideal storage foundation for creating a home media center or building a robust network-attached storage (NAS) system. It empowers users to store and stream personal videos, music, and digital photos seamlessly within their home network or even remotely across the internet.
Additional Information
| Weight | 0.095 kg |
|---|---|
| Dimensions | 14 × 11 × 4 cm |
