Geekworm X1001 PCIe to M.2 NVMe SSD for Raspberry Pi 5

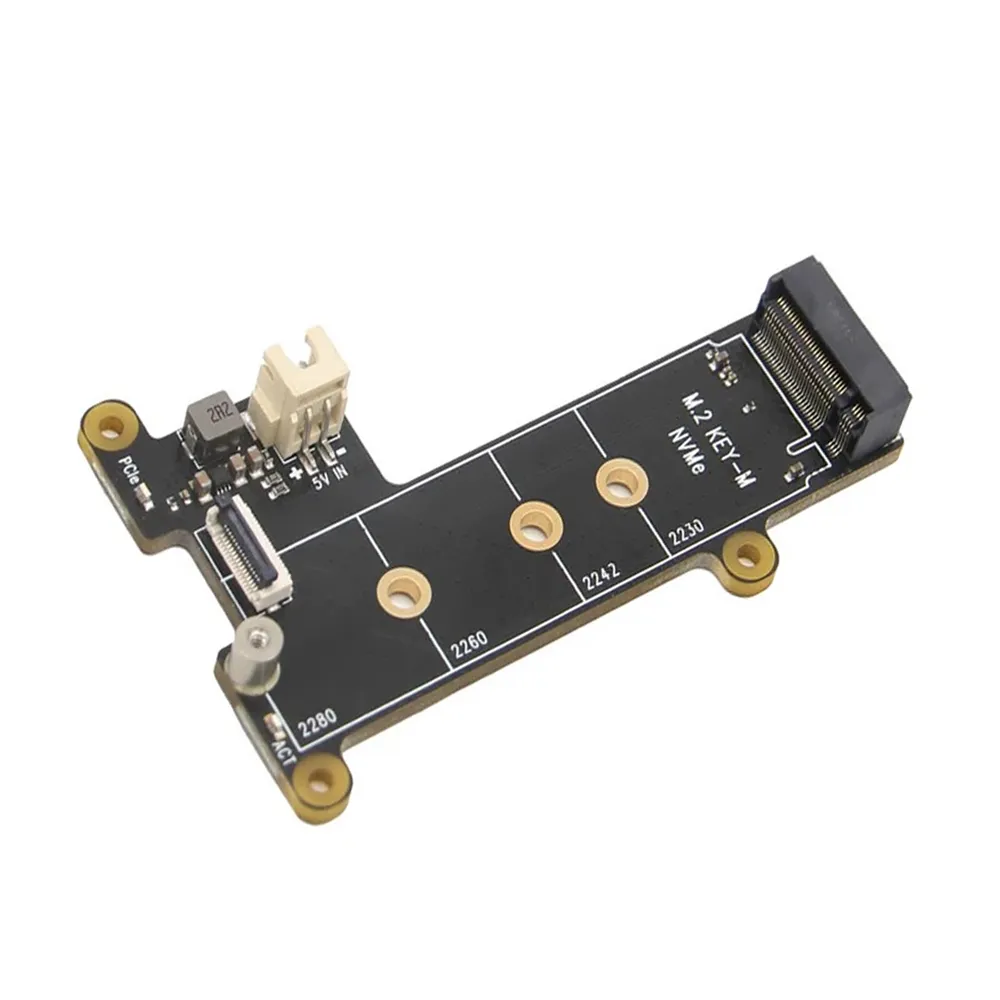

The Geekworm X1001 V1.1 is an M.2 NVMe SSD PCIe Peripheral Board (PIP) specifically designed for the Raspberry Pi 5, leveraging its new PCIe interface for ultra-fast data transfers and rapid booting performance.
Features
- Seamlessly integrates M.2 NVMe SSDs with the Raspberry Pi 5 via PCIe interface.
- Enables ultra-fast data transfer speeds and significantly quicker OS boot times.
- Supports a wide range of M.2 NVMe SSD form factors: 2230, 2242, 2260, and 2280.
- Minimalist PIP design ensures compatibility with the official Raspberry Pi 5 active cooler and other HATs.
- Dual LED indicators provide visual feedback for PCIe link status and M.2 disk activity.
Out of stock
Unlock the full potential of your Raspberry Pi 5 with the Geekworm X1001 V1.1 NVMe M.2 SSD shield. This innovative PCIe Peripheral Board (PIP) utilizes the Raspberry Pi 5’s dedicated PCIe interface, transforming its storage capabilities. By integrating an M.2 NVMe SSD, users can achieve dramatically faster data read/write speeds, essential for demanding applications, large data logging, or hosting complex software environments. The X1001 ensures your Pi 5 operates with unprecedented responsiveness, from booting the OS to managing file transfers.
Designed for ease of installation, the X1001 features a compact form factor that maintains compatibility with other Raspberry Pi 5 accessories, including the official active cooler. It supports common M.2 NVMe SSD sizes, offering flexibility in storage capacity and physical dimensions. Power delivery is managed primarily through the FPC PCIe ribbon, providing up to 5W, with an additional XH2.54 5V connector available for ultra-large capacity SSDs that may require supplementary current. Dual LED indicators offer clear status updates on both PCIe recognition and M.2 disk activity.
Additional Information
| Weight | 0.022 kg |
|---|---|
| Dimensions | 8.69 × 5.59 × 0.1 cm |
