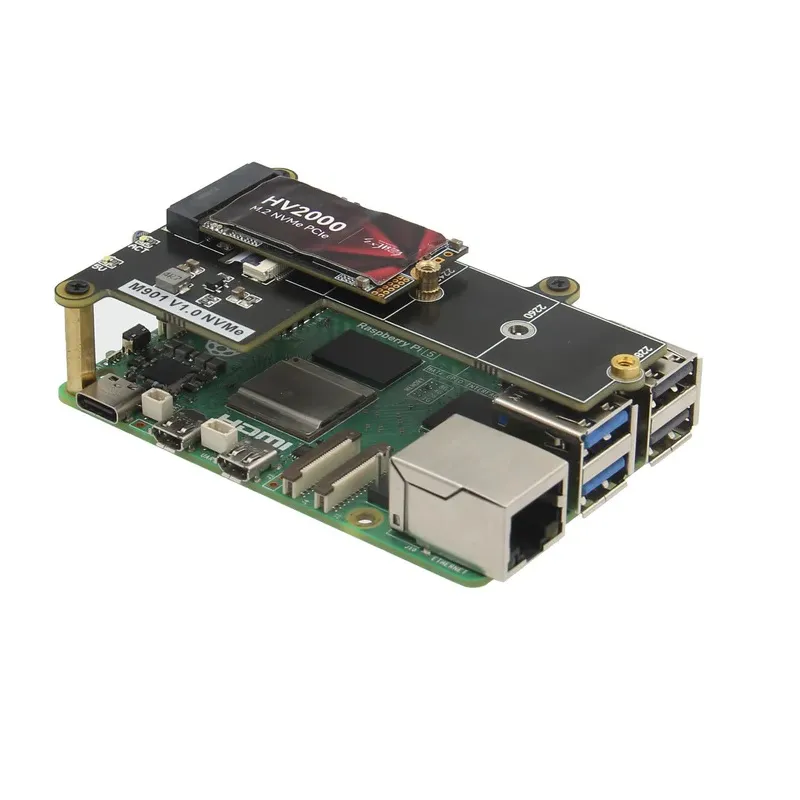

Geekworm M901 PCIe to M.2 NVMe SSD PIP for Raspberry Pi 5
The Geekworm M901 is a PCIe Peripheral Board (PIP) designed for the Raspberry Pi 5, enabling ultra-fast data transfers and booting by connecting M.2 NVMe SSDs directly to the Pi 5’s new PCIe interface. It provides a seamless storage upgrade while maintaining compatibility with other HATs and the official active cooler.
Features
- Utilizes Raspberry Pi 5’s native PCIe interface for M.2 NVMe SSDs.
- Enables ultra-fast booting and high-speed data transfers for enhanced performance.
- Compatible with official Raspberry Pi 5 active coolers and other HATs.
- Supports 2230, 2242, 2260, and 2280 NVMe M.2 SSD form factors.
- Powers directly from the FFC PCIe ribbon, providing up to 5W for the SSD.
Out of stock
The Geekworm M901 shield is an innovative NVMe M.2 SSD PIP (PCIe Peripheral Board) specifically engineered for the Raspberry Pi 5. This board leverages the new, high-speed PCIe interface of the Raspberry Pi 5, allowing users to integrate M.2 NVMe SSDs for significantly faster data transfers and ultra-fast boot times compared to traditional microSD cards. It adheres to the Raspberry Pi’s new ‘PIP’ design guidelines, ensuring robust compatibility and long-term support within the Raspberry Pi OS ecosystem.
Designed for seamless integration, the M901 features a minimalist form factor that is easy to install and remains compatible with existing HAT shields and the official active cooler for the Raspberry Pi 5. It supports a wide range of NVMe M.2 SSD sizes, including 2230, 2242, 2260, and 2280, offering flexibility in storage choices. The board also includes an SSD ACT LED indicator, providing visual feedback on power status and read/write operations, and can be powered directly via the FFC PCIe ribbon, delivering up to 5W of continuous power to the connected SSD.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 11 × 7 × 2.5 cm |
