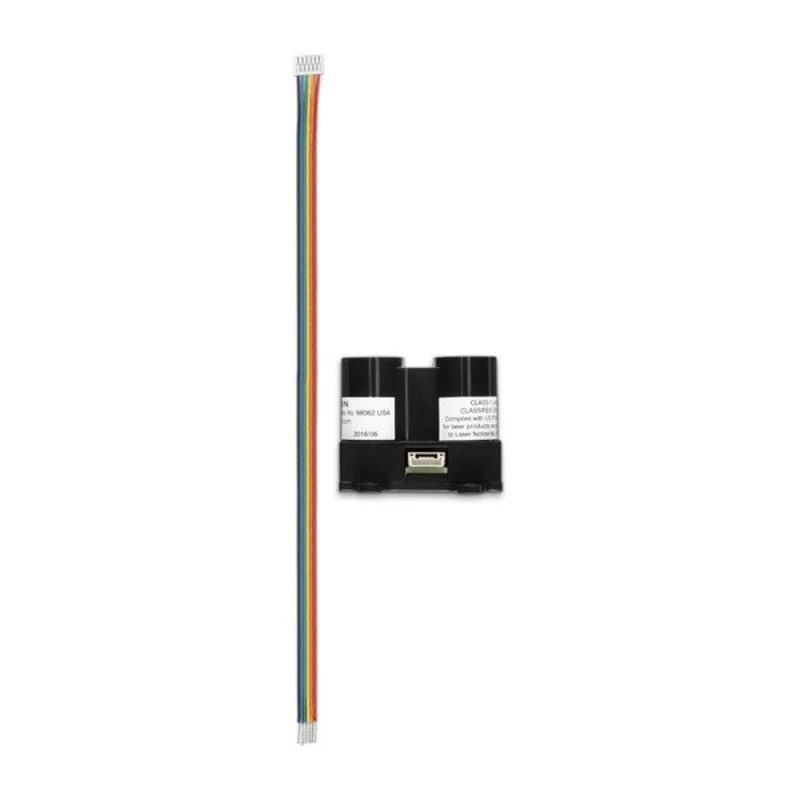

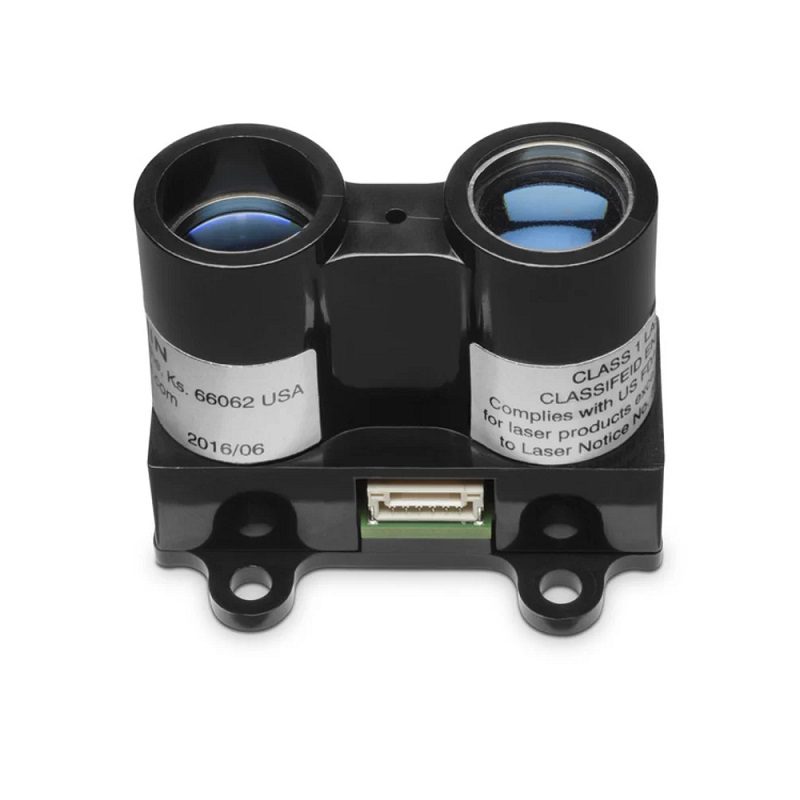

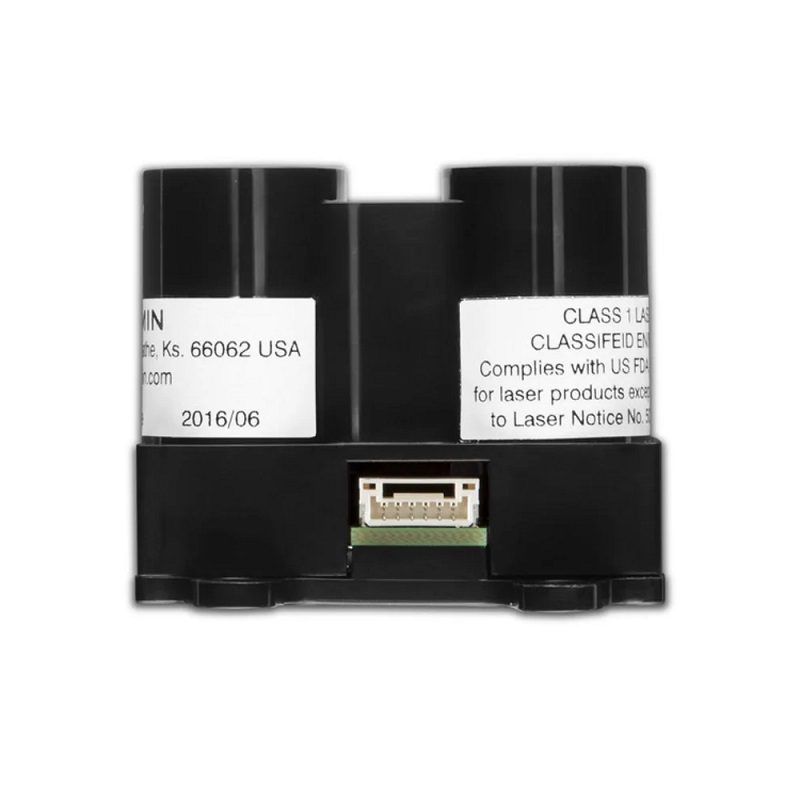

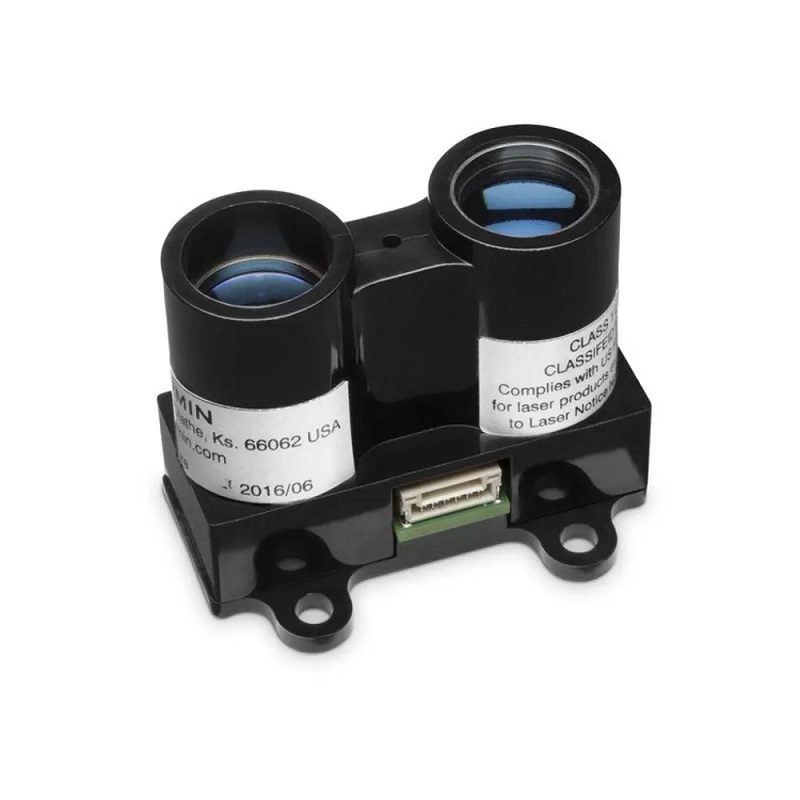

Garmin LIDAR-Lite v3 Optical LiDAR Distance Sensor, Range: 5 cm~40 m - I2C/PWM Interface
The Garmin LIDAR-Lite v3 is a compact, high-performance optical distance measurement sensor ideal for drone, robotics, and unmanned vehicle applications. It features I2C and PWM communication interfaces for easy integration with microcontrollers like Arduino, Raspberry Pi, and ESP32, offering reliable ranging from 5 cm to 40 meters.
Features
- High-performance optical LiDAR sensor with a 5 cm to 40-meter measurement range.
- User-configurable for optimal balance between accuracy (±2.5 cm), range, and measurement time.
- Dual I2C and PWM communication interfaces for flexible system integration.
- Compact, lightweight design (48mm x 40mm, 22g) with low power consumption (~105 mA).
- High-speed update rate up to 500 Hz for real-time distance tracking.
Out of stock
The Garmin LIDAR-Lite v3 utilizes a 905 nm laser-based time-of-flight (ToF) principle for precise optical distance measurement. Its single-chip signal processing solution minimizes hardware complexity, resulting in a compact and lightweight sensor module ideal for space-constrained mobile applications. The sensor is highly configurable, allowing users to optimize the trade-off between measurement accuracy, maximum operating range, and acquisition speed to suit specific project requirements.
Designed for integration into drones, robotic platforms, and unmanned vehicles, the LIDAR-Lite v3 provides reliable proximity sensing and obstacle detection. It requires an external 5V power source and a microcontroller to operate, communicating seamlessly via I2C or PWM output. The sensor’s robust construction and consistent performance make it a foundational building block for advanced navigation and automation systems.
Additional Information
| Weight | 0.022 kg |
|---|---|
| Dimensions | 4 × 4.8 cm |
