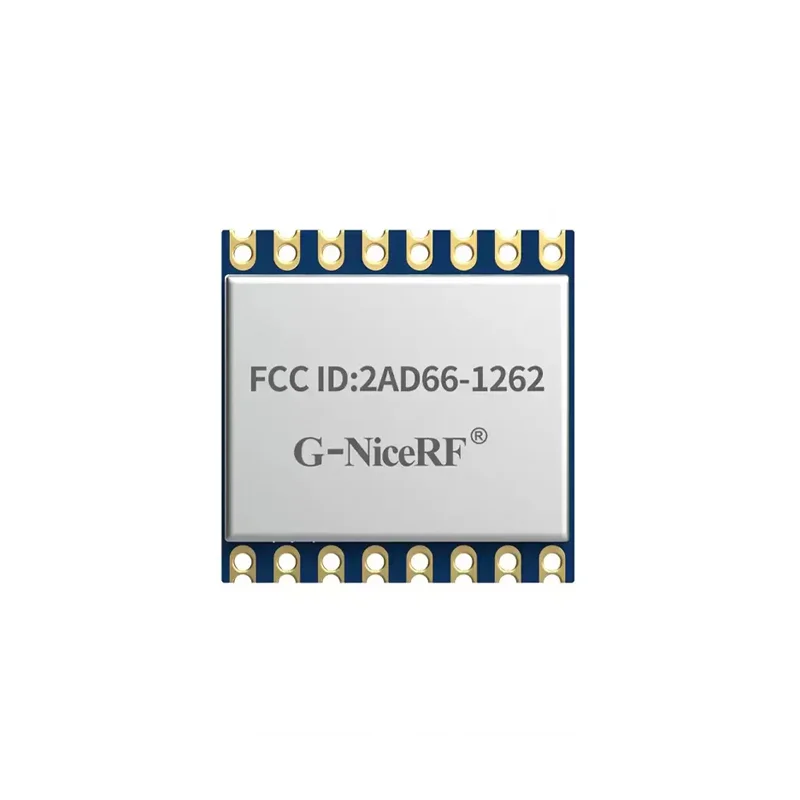

G-NiceRF LoRa1262-915 SX1262 915MHz LoRa Module w/ ESD Protection

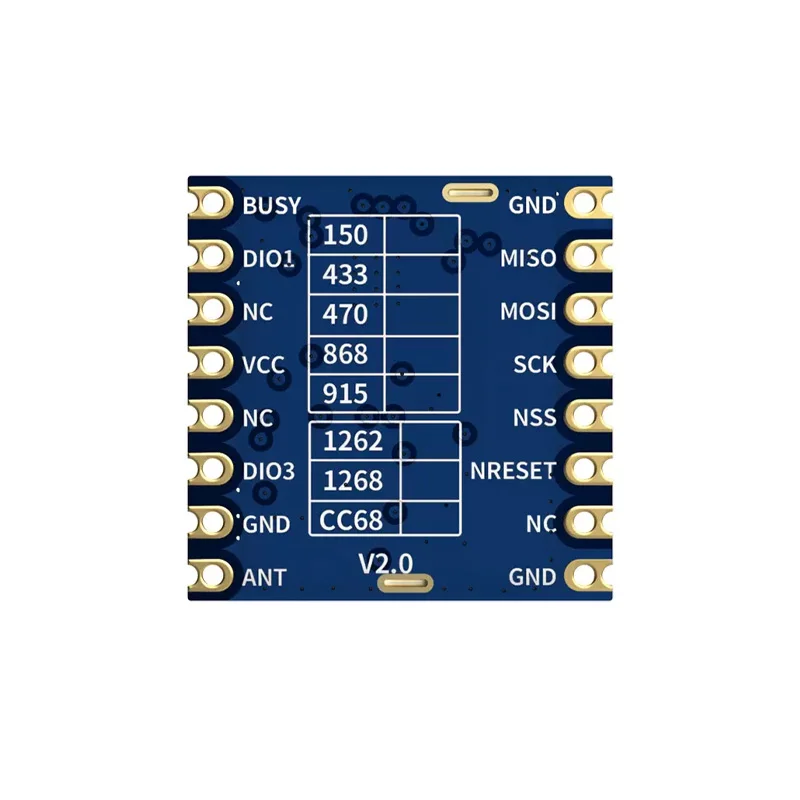

The module communicates exclusively via an SPI interface. You must connect its SPI pins (MOSI, MISO, SCK, NSS) to your host microcontroller's corresponding SPI port, such as on an STM32, ESP32, or Arduino. Ensure your firmware initializes the SPI bus at the correct clock speed and manages the chip select (NSS) pin to send configuration AT commands or direct register writes to the SX1262 chip for packet transmission and reception.

Frequency and output power are configured via software commands sent over the SPI interface to the SX1262's internal registers. You must use a compatible driver library, such as the Semtech SX126x Arduino library or the LoRaMAC-node stack. Through these libraries, you can set the center frequency (e.g., 915000000 Hz for 915MHz) and the transmit power up to 22 dBm. Always ensure your antenna is impedance-matched for 50 ohms to prevent damage when operating at maximum power.

The SX1262 chip is designed for ultra-low power operation. In deep sleep mode, current consumption drops to microamps, which is critical for battery-powered sensor nodes that wake periodically. In active receive mode, the current is typically in the single-digit milliampere range. You must manage the module's power states via firmware by controlling its DIO pins and using the appropriate sleep and wake-up commands over SPI to maximize your application's battery life.

Yes, the LoRa1262-915 is a physical layer transceiver compatible with the LoRaWAN protocol stack. To connect to a LoRaWAN network server like The Things Network or ChirpStack, you must implement the full LoRaWAN protocol (e.g., using the Semtech LoRaMAC-node library) on your host microcontroller. This handles Over-The-Air Activation (OTAA), Join requests, and secure encrypted communication, while the module itself handles the raw LoRa modulation and demodulation.
