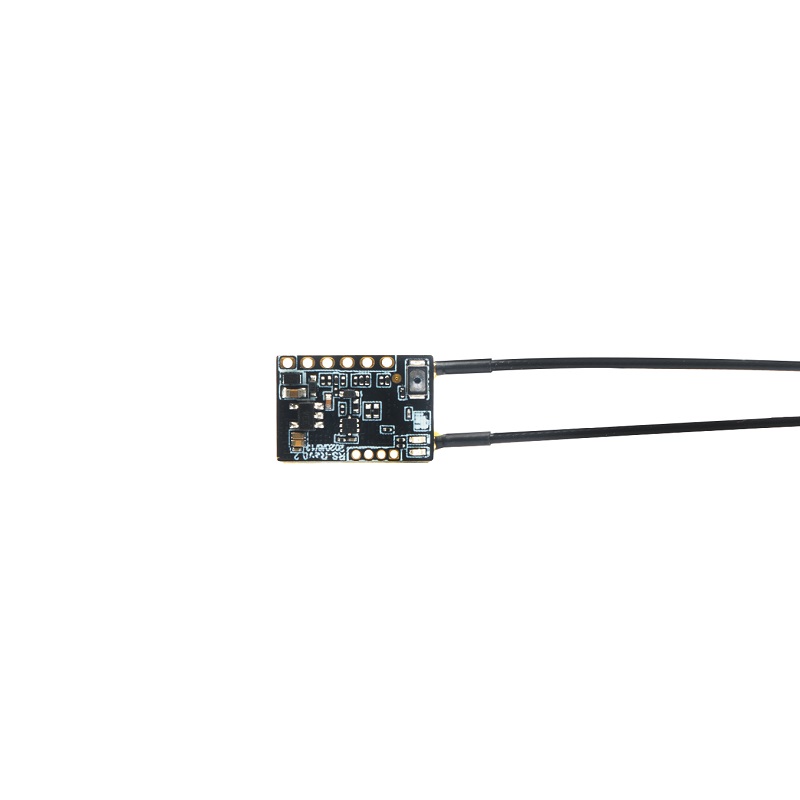

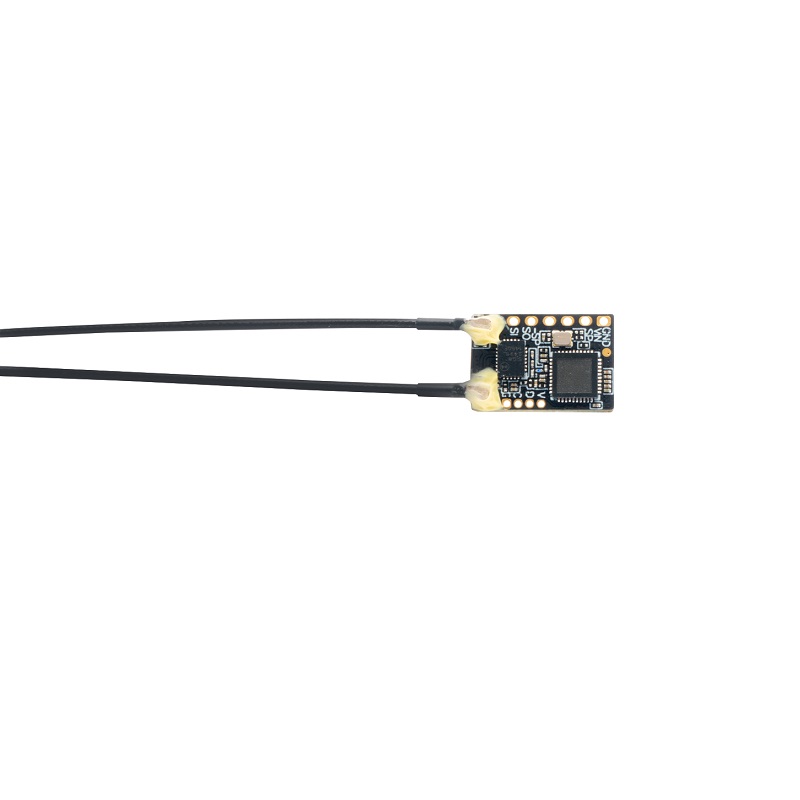

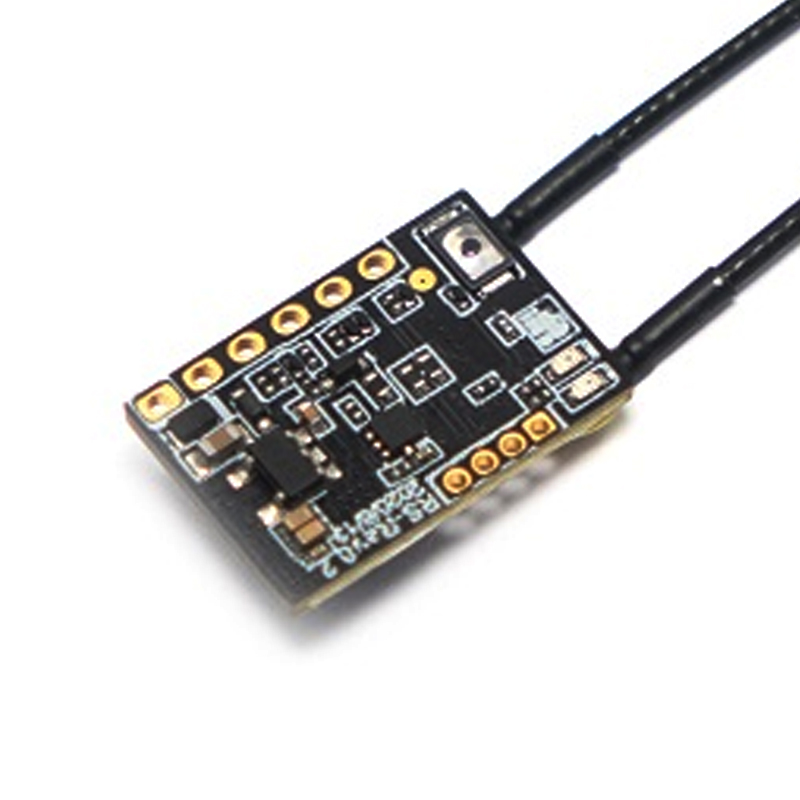

FrSky Archer Plus RS Receiver
The FrSky Archer Plus RS Receiver is a full-range, dual-mode receiver compatible with ACCESS and ACCST D16 protocols, featuring OTA firmware updates, configurable S.Port/F.Port/FBUS output, and signal redundancy via SBUS In port for enhanced flight control reliability.
Features
- Ultra-compact and lightweight design measuring 16x11mm and weighing just 1.3g.
- Dual-protocol support for FrSky ACCESS and ACCST D16 modes with smart auto-matching during binding.
- Over-The-Air (OTA) wireless firmware updates for convenient field upgrades.
- Configurable telemetry and control output via S.Port, F.Port, or FBUS protocols.
- Integrated SBUS In port for signal redundancy when paired with another ACCESS receiver.
Out of stock
The FrSky Archer Plus RS Receiver represents an evolution in the Archer series, incorporating enhanced anti-RF-interference capabilities for more stable and reliable signal performance in challenging electromagnetic environments. Its dual detachable IPEX4 antennas ensure optimal reception and maximum operational range, which is rated for full-range control with telemetry extending up to at least 2km under ideal conditions.
Engineered for seamless integration, the receiver features an inverted S.Port for easy connection to flight controllers and supports 16CH or 24CH modes via its SBUS Out port. The low operating voltage range of 3.5V to 10V and minimal current draw make it suitable for a wide array of multirotor and fixed-wing UAV builds, from lightweight racers to long-range cruisers.
Additional Information
| Weight | 0.0013 kg |
|---|---|
| Dimensions | 1.6 × 1.1 cm |
