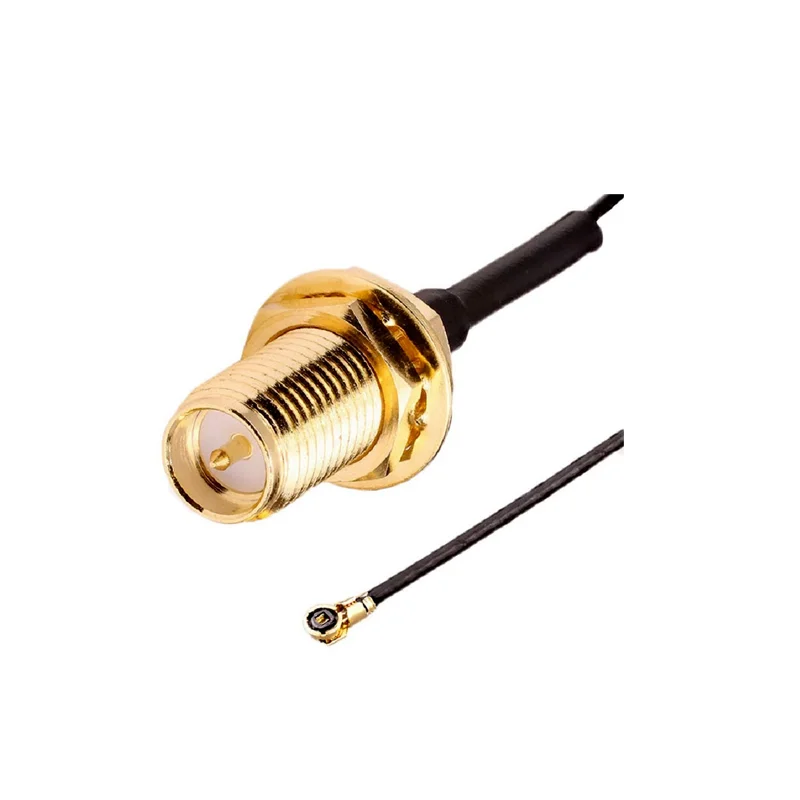

RP-SMA Female to IPEX4 Connector Cable 20cm RG0.81
A 20cm RG0.81 coaxial pigtail cable with an RP-SMA female connector on one end and an IPEX4 (U.FL) connector on the other, designed for low-loss RF signal routing between external antennas and miniature wireless modules.
Features
- Provides a robust RF link between an external RP-SMA antenna and a module’s internal IPEX4 port.
- 20cm RG0.81 coaxial cable offers flexibility for routing within enclosures while maintaining signal integrity.
- RP-SMA female connector mates with standard RP-SMA male antenna connectors.
- IPEX4 (U.FL) plug connects directly to Wi-Fi, Bluetooth, 4G/LTE, and GPS module solder pads.
- Essential for prototyping and final installations requiring optimal antenna placement.
Out of stock
This RP-SMA female to IPEX4 connector cable is a critical RF interconnect for wireless IoT development and deployment. It enables you to connect a high-gain external antenna with an RP-SMA interface directly to the miniature IPEX4 port found on most compact Wi-Fi, Bluetooth, cellular (4G/5G), and GNSS modules. The 20cm RG0.81 coaxial cable provides sufficient length for flexible installation inside project enclosures, helping to position the antenna for best reception while minimizing signal loss.
The cable assembly is engineered for 50-ohm impedance matching, which is standard for most wireless communication systems. Using this pigtail ensures a reliable, low-VSWR connection between your wireless module and antenna, which is crucial for maximizing RF performance, range, and data throughput in applications from LoRaWAN gateways to 4G routers and high-speed Wi-Fi access points.
Additional Information
| Weight | 0.006 kg |
|---|
