SKU: DRFC-2778
📋 GST Invoice Available

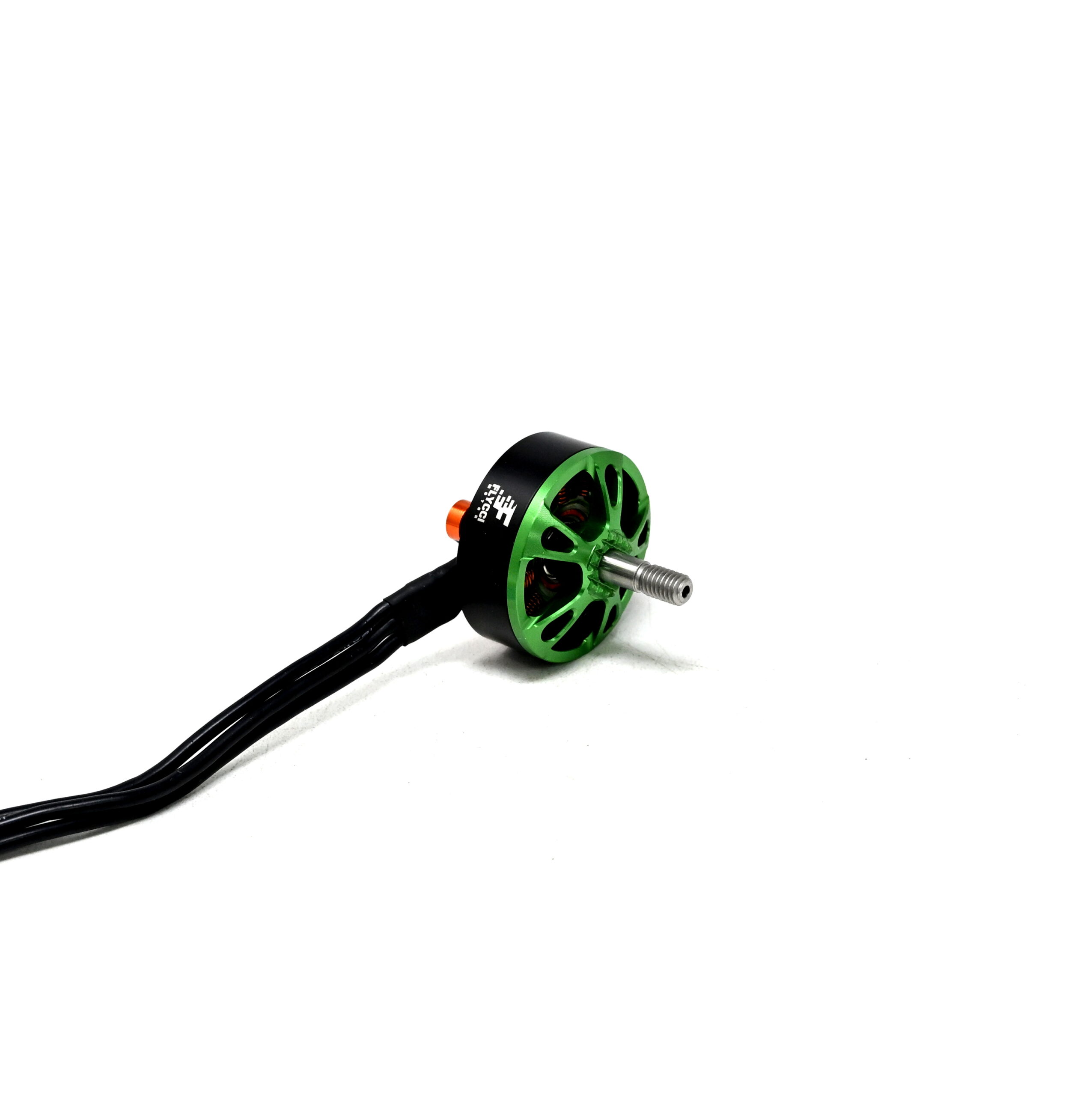

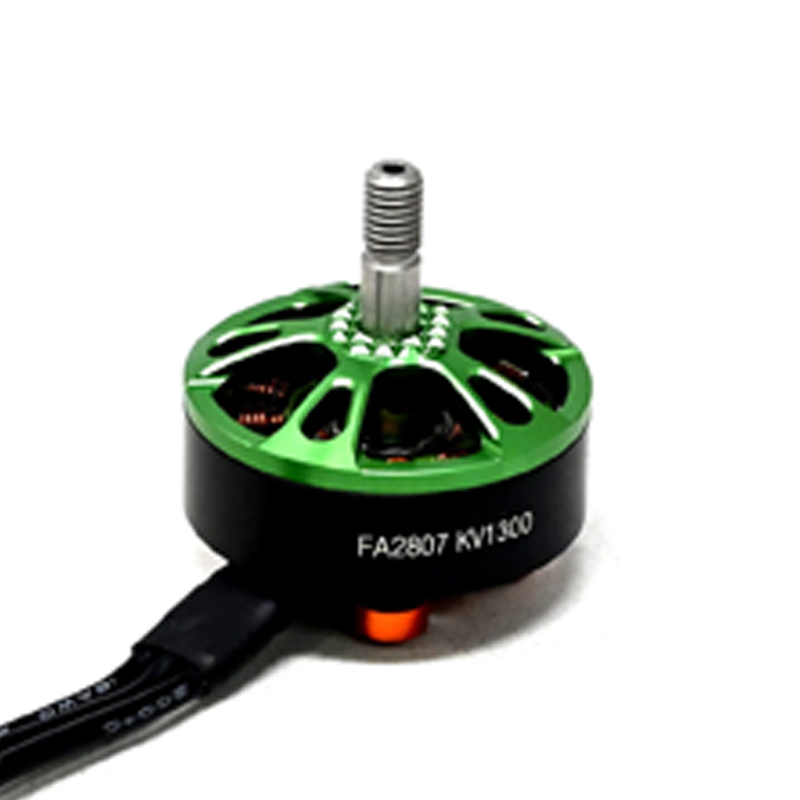

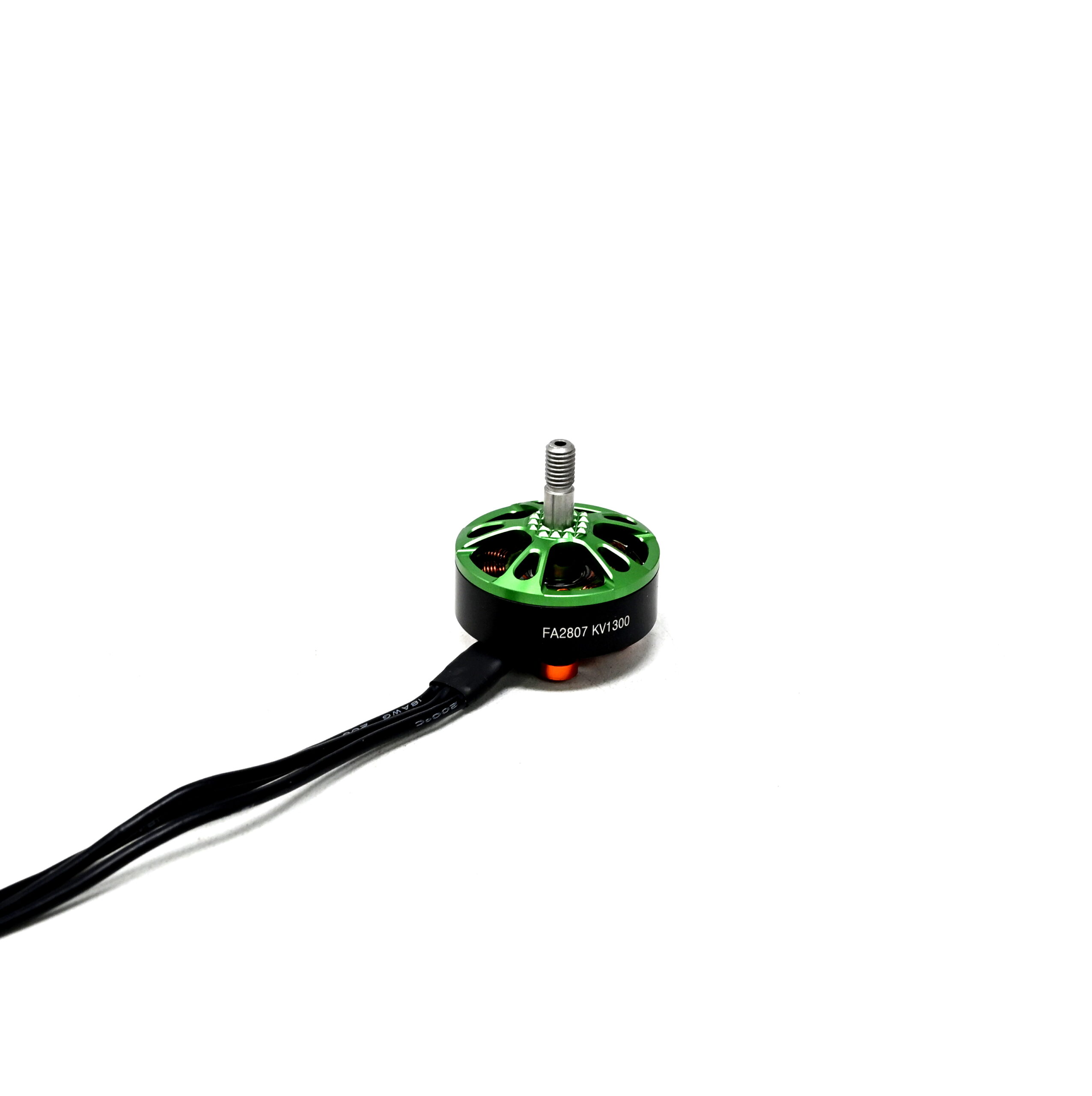

FLYCCI FA2807 1300KV Brushless Motor

₹2,149.00 (Inclusive of all taxes)
Out of Stock

The FLYCCI FA2807 1300KV brushless motor is engineered for high-performance long-range and endurance drone applications, offering robust power output and stable control for 6S LiPo systems.

Features

  • 1300KV rating optimized for 6S (24V) LiPo power systems.
  • Generates up to 1996g of maximum thrust for powerful flight performance.
  • Compact 33.6mm diameter x 20mm height design with a 4mm shaft.
  • High-efficiency design delivers 895.7W power capacity with low energy consumption.
  • Durable construction ensures reliable operation for long-range and high-speed UAV applications.

Out of stock

Description

The FLYCCI FA2807 1300KV brushless motor is a high-torque, high-power solution designed for pilots seeking endurance and speed. Its electrical design is optimized for 6S LiPo voltages, providing a stable power curve that enhances flight time and responsiveness. The motor’s robust stator and high-quality bearings are engineered to handle continuous high-RPM operation without significant thermal buildup.

Structurally, the motor features a durable housing that protects the internal components from vibration and minor impacts, common in demanding flight environments. This durability, combined with its precise magnetic alignment, ensures consistent performance and precise control, making it an ideal choice for FPV racing, long-range cruising, and agile freestyle maneuvers where reliability is paramount.

Key Features

  • High-Torque Stator Design: The FA2807 stator provides excellent torque for rapid acceleration and sustained high-RPM operation, ideal for carrying heavier payloads or battling wind resistance.
  • Optimized Thermal Management: Engineered cooling channels and high-grade materials efficiently dissipate heat, preventing power fade during extended flight sessions.
  • Precision-Balanced Rotor: The rotor is dynamically balanced to minimize vibration, leading to smoother video footage and reduced wear on other drone components.
  • Robust Bearing System: Utilizes high-quality, shielded bearings to ensure smooth rotation and long-term durability under high mechanical loads.
  • Wide Voltage Compatibility: Specifically rated for 6S (24V) operation, providing a high power-to-weight ratio for performance-oriented builds.
  • Lightweight Construction: Maintains a low mass to preserve overall drone agility and flight efficiency without sacrificing structural strength.

Applications

  • 7-inch Long-Range FPV Drones: Ideal powerplant for 7-inch propeller builds designed for extended flight times and efficient cruising.
  • High-Speed Racing Quads: Provides the burst power and top-end speed required for competitive 6S-powered FPV racing.
  • Freestyle & Cinematic Drones: Delivers the responsive torque and power needed for aggressive freestyle maneuvers and smooth cinematic carries.
  • Heavy-Lift & Payload Platforms: Suitable for larger multirotor builds requiring substantial thrust to lift camera gimbals or other equipment.

Technical Specifications

ModelFA2807
KV Rating1300KV
Motor TypeOutrunner Brushless
Max Thrust1996g
Voltage Rating24V (6S LiPo)
Shaft Diameter4 mm
Power Capacity895.7W
Motor Dimensions (Dia. x Ht.)33.6 x 20 mm
Recommended Propeller7-inch

Frequently Asked Questions

What is the maximum recommended battery voltage for the FLYCCI FA2807 1300KV motor?

The FLYCCI FA2807 1300KV motor is rated for a maximum voltage of 24V, which corresponds to a 6S LiPo battery pack. Operating within this limit ensures optimal performance and prevents damage from overvoltage. Exceeding 6S is not recommended.

What size propeller is best suited for this 1300KV motor?

This motor is designed and tested for optimal performance with 7-inch propellers. Using the recommended 7-inch prop ensures a balanced load, maximizing thrust efficiency (up to 1996g) and protecting the motor and ESC from excessive current draw.

What is the mounting hole pattern for the FA2807 motor?

While the exact bolt pattern is not specified in the provided data, motors of this size (33.6mm diameter) typically use a 16x19mm or 16x16mm mounting pattern. Please verify the specific hole spacing from the motor's base or manufacturer documentation before installation.

Is this motor suitable for a beginner's first drone build?

While powerful and efficient, this 1300KV 6S motor is better suited for intermediate to advanced pilots building performance-oriented drones like 7-inch long-range or high-speed racers. Beginners may find lower KV motors on 4S batteries easier to manage.

Package Includes

  • 1 x FLYCCI FA2807 1300KV Brushless Motor

Additional Information

Weight 0.069 kg
Dimensions 10 × 11 × 7 cm
