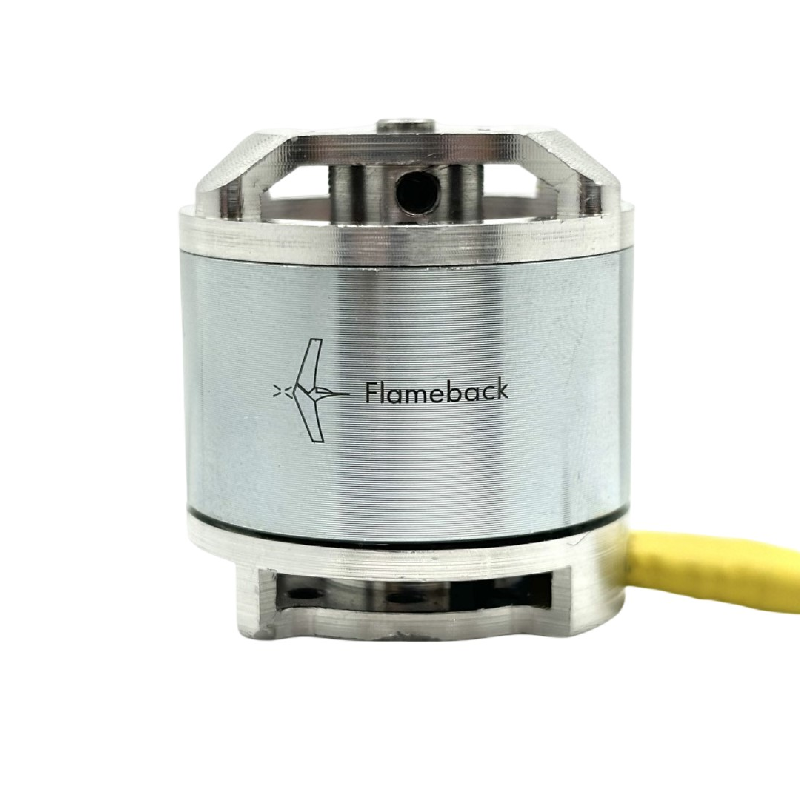

Flameback FT 2415 BLDC Motor FB-BLDC-2415-850
The Flameback FT 2415 is an 850KV brushless motor designed for high-performance multirotor and hybrid UAV platforms. Featuring a 12N14P configuration and a continuous 800W power rating, it delivers responsive throttle control and efficient operation on 4S LiPo battery systems.
Features
- 850KV rating with 12N14P stator configuration for agile throttle response.
- Continuous 800W power output with a maximum current rating of 50A.
- Optimized for 4S LiPo battery systems and compatible with standard 50A ESCs.
- Compact 24x15mm stator design ensures efficient power delivery and thermal management.
- Recommended for use with 11×4.5-inch propellers on lightweight quads and VTOL platforms.
Out of stock
The Flameback FT 2415 BLDC motor is engineered for demanding aerial applications where a balance of agility, power, and thermal efficiency is critical. Its 24mm diameter by 15mm height stator, combined with precision-wound 12N14P configuration, provides smooth acceleration and consistent torque output across the throttle range. Premium lamination stacks minimize eddy current losses, reducing heat buildup during sustained high-power flight.
Designed for integration with 4S LiPo power systems, this motor is an ideal propulsion solution for lightweight FPV racing quads, VTOL (Vertical Take-Off and Landing) drones, and fixed-wing UAVs requiring reliable thrust. The robust construction, including high-grade bearings and a balanced bell, ensures durability under aggressive flight profiles and varied environmental conditions.
Additional Information
| Weight | 0.17 kg |
|---|---|
| Dimensions | 8 × 12 × 7 cm |
